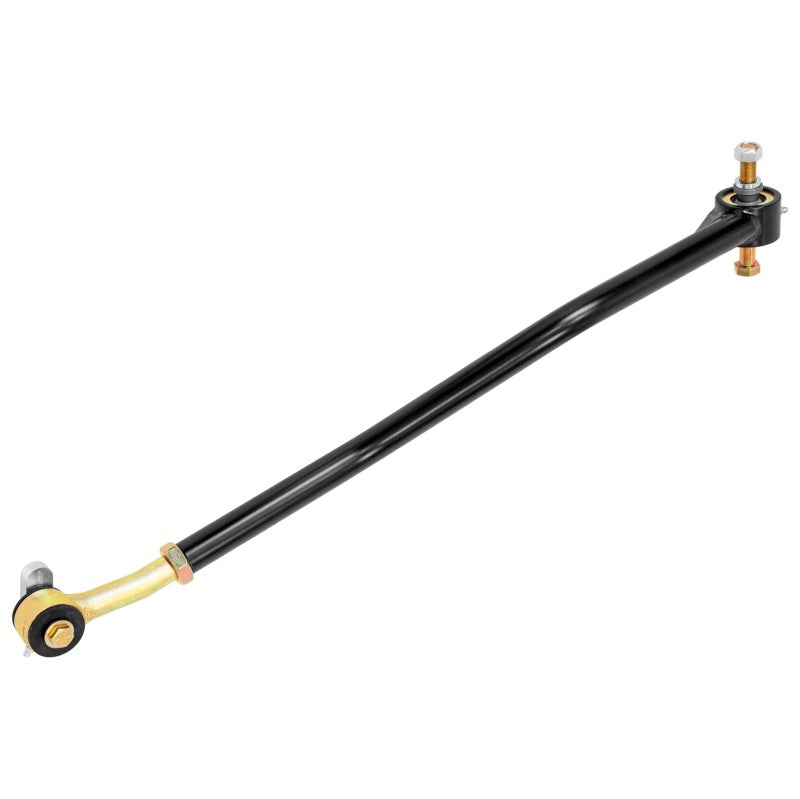

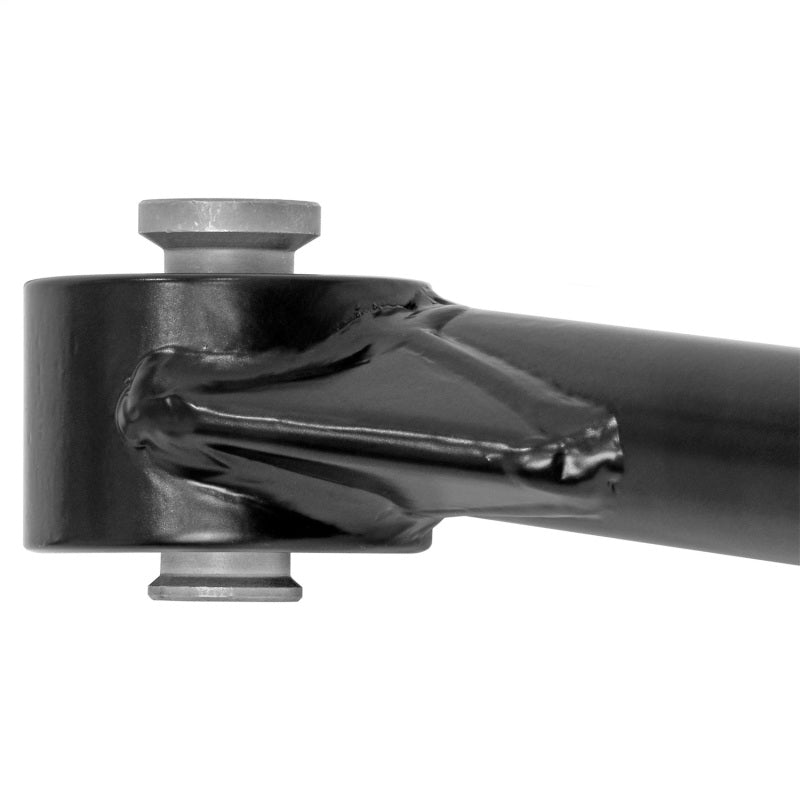

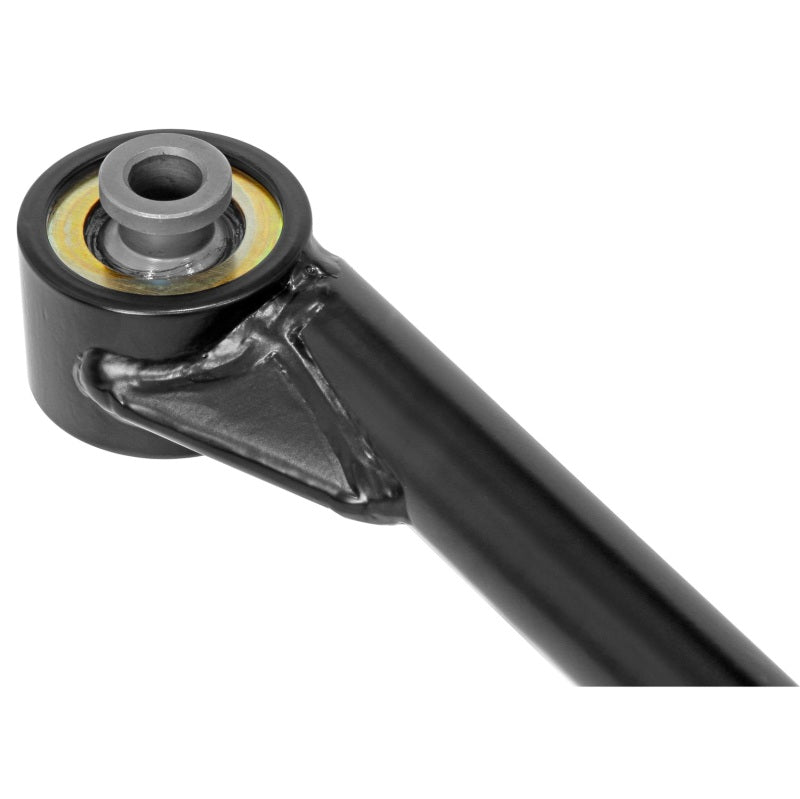

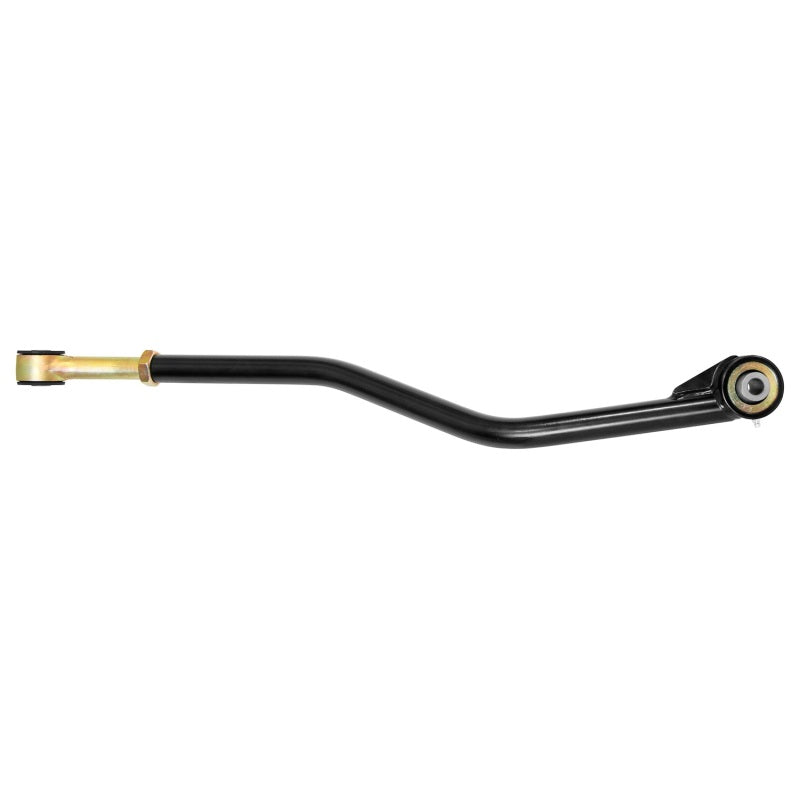

RockJocks Johnny Joint adjustable front trac bar for the TJ/LJ/XJ/MJ/ZJ features an offset Johnny Joint rod end that puts the bar further forward providing more clearance between the diff and the trac bar. Other features include a narrow 2 1/2 in. Johnny Joint at the frame end for maximum articulation capabilities, 1 1/4 in. x .250 wall 4130 chrome moly construction, a welded in gusset from the bar to the frame Johnny Joint, adjustable Johnny Joint rod end at the axle housing end and semi-gloss black powder coat finish. Some drilling is required for installation. The supplied frame bolt is a 5/8 in., and the supplied housing bolt is 1/2 in. Both of these holes must be drilled to size to accommodate the heavier duty hardware. A heavy duty nut plate kit is supplied for the housing end. NOTE: This trac bar is intended to be used with a minimum of 2 in. of lift. It may work on vehicles with less lift with Dana 30 frontends, however, on vehicles with no lift and a Dana 44, 9 in. or 60 frontend, you may run into a clearance issue. Always check fitment before drilling!
Johnny Joint® Trac Bar; Chrome Moly; Adjustable; Some Drilling Required; Reuses Stock Housing Bolt;
- Adjustable Length / Reuses Stock Housing Bolt
- Features Johnny Joint Rod End On Frame End
- Heavy Wall Chrome Moly Tube Construction
- Powder Coated For Durability
- Reuses Stock Housing Bolt
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
| Units Per Sku: 1 |
