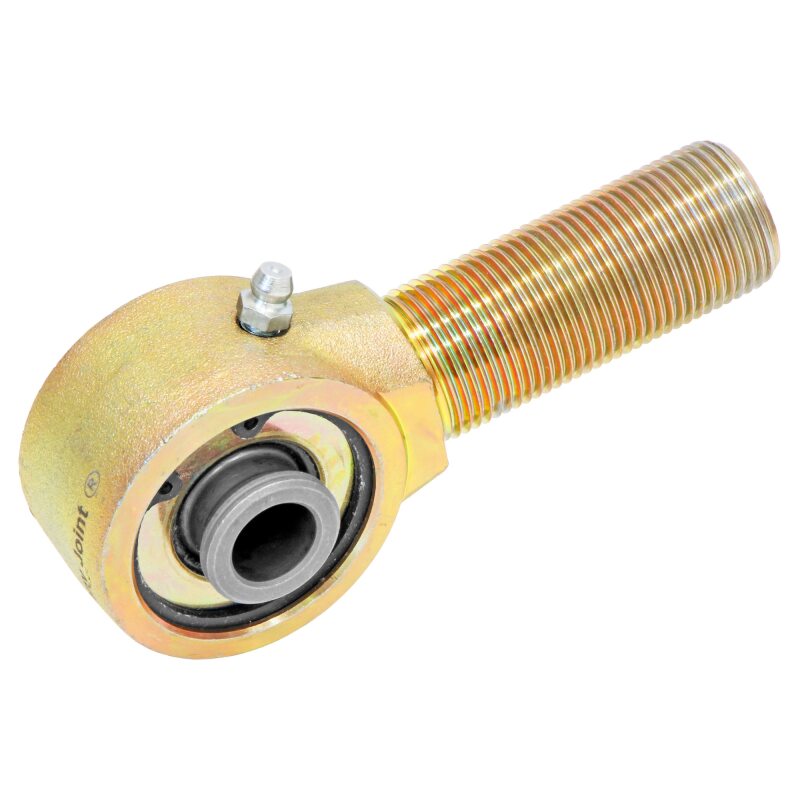

RockJock Johnny Joint 2in Narrow Rod End (1in LH Thread 1.600in x .480in Ball)

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 left hand threads on the shank, and a 1.600 in. mounting width ball with a .480 in. thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2.0 in.; Narrow Forged; 1.600 in. X .480 in. Ball; 1 in.-14 LH Threaded Shank; Externally Greased;
