Description

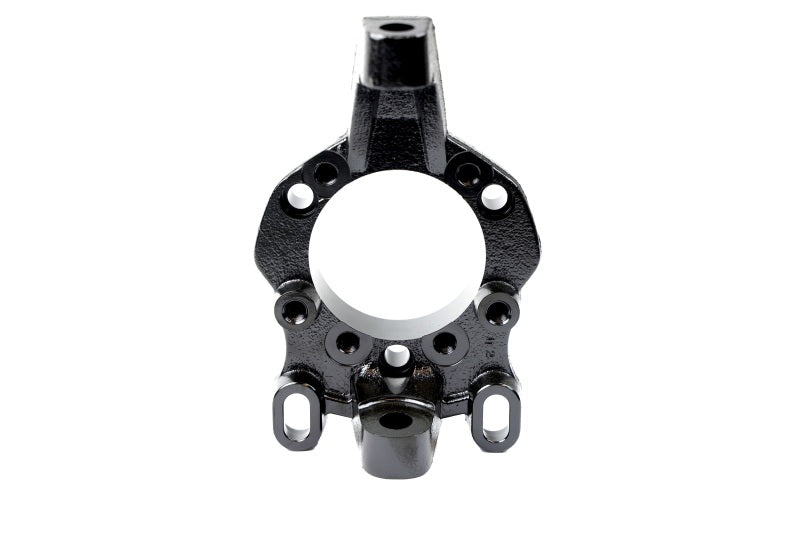

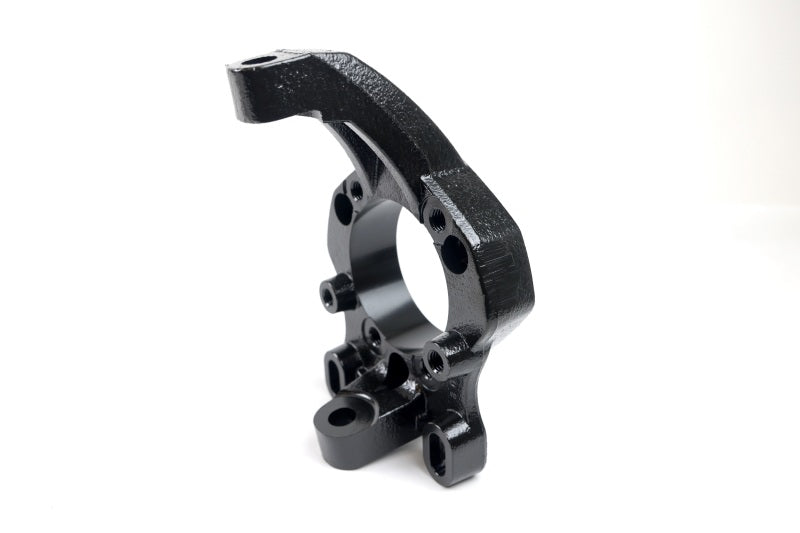

The Ridetech AFX Hub Spindles add the performance and simplicity of late model Corvette hubs and brakes to your muscle car!
Features:
Lowers vehicle 2?.
1.75? taller, improves negative camber gain and roll center.
Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance.
Compatible with C5/C6 Corvette brake systems, OE and Aftermarket (caliper brackets sold separately).
Stock track width.
Durable Black E-Coat finish.
100% manufactured in the USA!
Fitment:
64-72 A-Body (Chevelle, Skylark, Cutlass, etc.)
67-69 F-Body (Camaro and Firebird)
68-74 X-Body (Nova, Acadian, etc)
62-67 X-Body (Nova, Chevy II with Ridetech TruTurn system)
63-82 Corvette (using Ridetech TruTurn system)
Hub and Brake Compatibility:
Hubs – 1997-2013 Corvette (C5/C6) or 2014-2019 Corvette (C7). C7 hubs are preferred, they are stronger and more cost effective as they don’t have a wheel speed sensor (Moog 513378).
Brakes – Any 1997-2013 Corvette (C5/C6) will fit (OE replacement or aftermarket). Ridetech caliper brackets are required. (Part # 11009546)
AFX hub spindle, 2" drop and 1.75" taller. Uses C7 Corvette hubs and C5/C6 brakes. Includes a pair of spindles, e-coated black and hardware. Caliper brackets and hubs sold separately.
Various
The Ridetech AFX Hub Spindles add the performance and simplicity of late model Corvette hubs and brakes to your muscle car!
Features:
Lowers vehicle 2?.
1.75? taller, improves negative camber gain and roll center.
Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance.
Compatible with C5/C6 Corvette brake systems, OE and Aftermarket (caliper brackets sold separately).
Stock track width.
Durable Black E-Coat finish.
100% manufactured in the USA!
Fitment:
64-72 A-Body (Chevelle, Skylark, Cutlass, etc.)
67-69 F-Body (Camaro and Firebird)
68-74 X-Body (Nova, Acadian, etc)
62-67 X-Body (Nova, Chevy II with Ridetech TruTurn system)
63-82 Corvette (using Ridetech TruTurn system)
Hub and Brake Compatibility:
Hubs – 1997-2013 Corvette (C5/C6) or 2014-2019 Corvette (C7). C7 hubs are preferred, they are stronger and more cost effective as they don’t have a wheel speed sensor (Moog 513378).
Brakes – Any 1997-2013 Corvette (C5/C6) will fit (OE replacement or aftermarket). Ridetech caliper brackets are required. (Part # 11009546)
AFX hub spindle, 2" drop and 1.75" taller. Uses C7 Corvette hubs and C5/C6 brakes. Includes a pair of spindles, e-coated black and hardware. Caliper brackets and hubs sold separately.
Various
Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
Fitment
