MSV Racing’s 89’-01’ Honda CR500 Billet HIGH FLOW 7° Elbow – Unmatched Cooling Performance!
[video width="736" height="544" mp4="https://msvracingpowersports.com/wp-content/uploads/2021/11/MSV-Racing-CR500-Elbow-a.i-1.mp4" loop="true" autoplay="true"][/video]
At MSV Racing, we constantly strive to
push the boundaries of performance, and our
Billet HIGH FLOW 7° Elbow for the
89’-01’ Honda CR500 is no exception. Through advanced

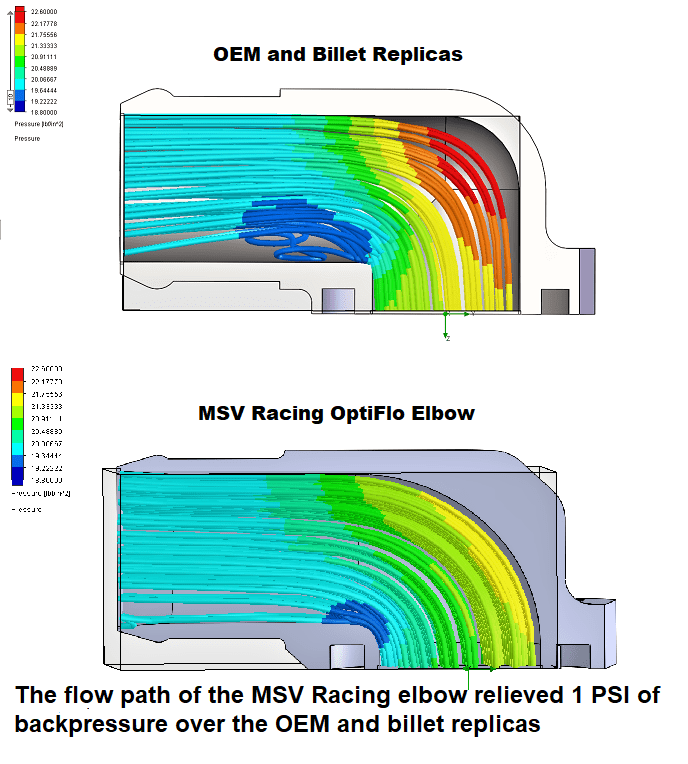

Computational Fluid Dynamics (CFD) analysis, we achieved a
+1 PSI backpressure reduction, while

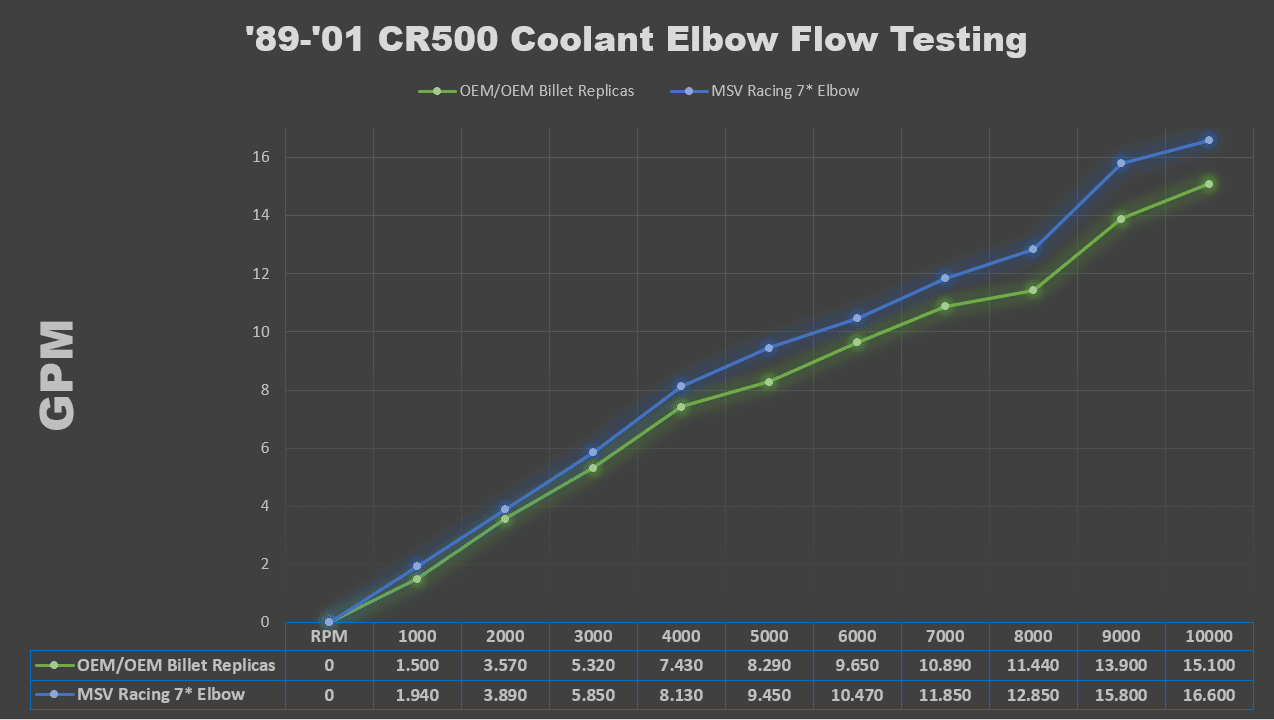

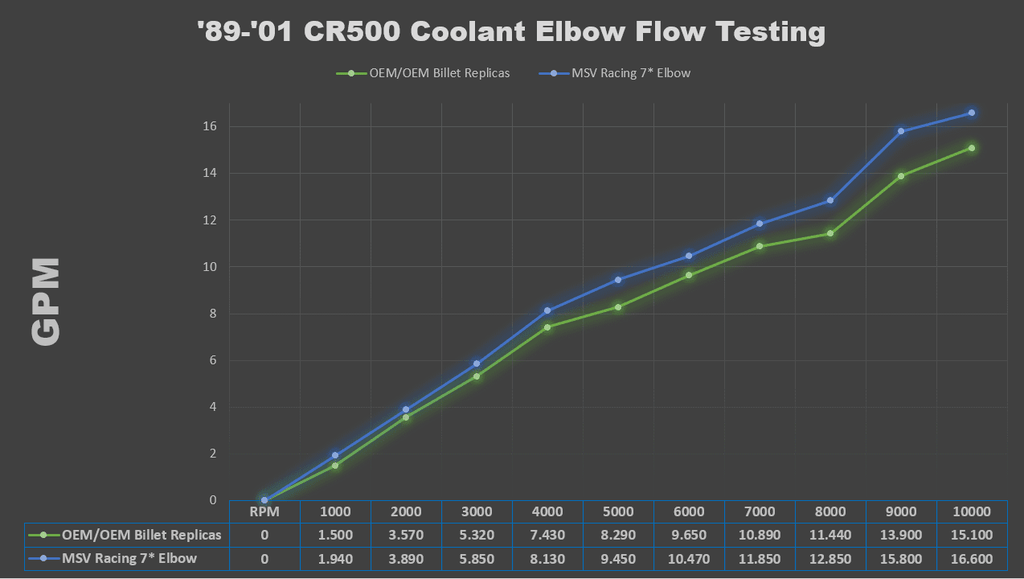

flow bench testing showed a .954 AVG GPM increase in coolant flow compared to OEM and replica models.
Why Does the MSV Racing 7° Elbow Outperform OEM and Replicas?
-
Precision-Designed for Maximum Flow & Efficiency
-

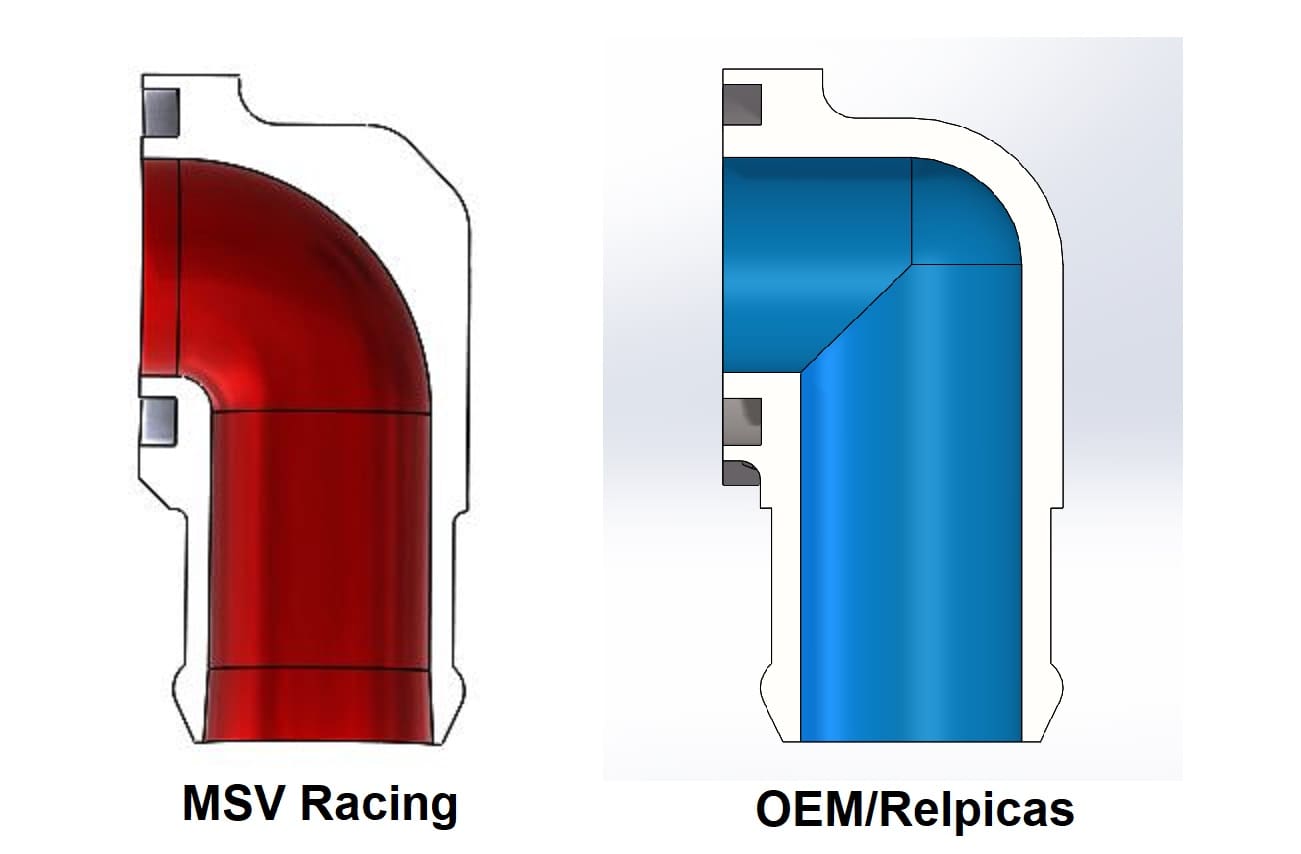

Fully Radiused Interior Profile – Unlike OEM elbows with sharp 90° turns and minor fillets, our 7° elbow features a fully radiused interior, providing dramatically smoother flow, relieving backpressure, and reducing aeration.
-

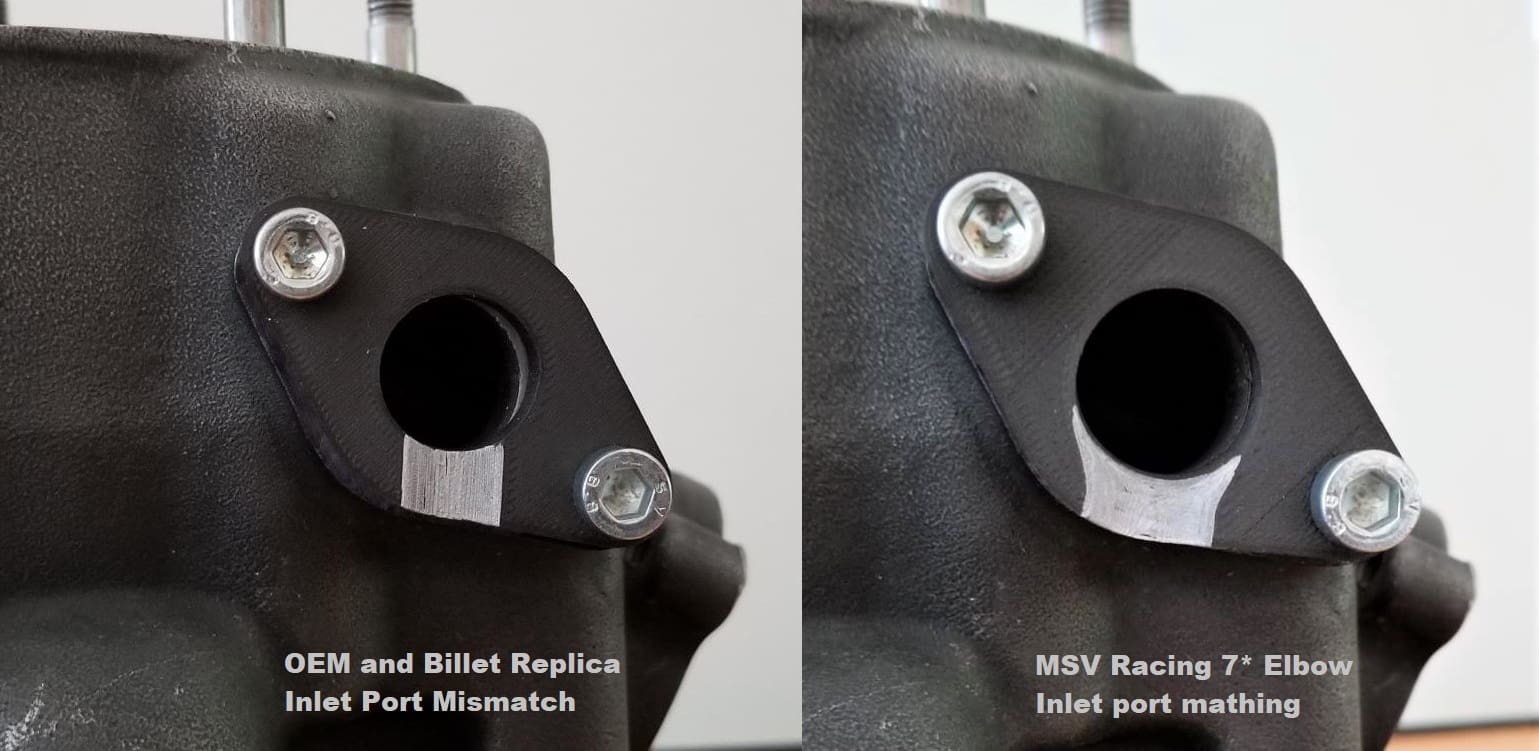

Corrected Coolant Port Alignment
- The 7° elbow outlet port is perfectly aligned with the cylinder inlet, eliminating the misalignment issues found in OEM elbows. This reduces turbulence and aeration, ensuring clean, efficient coolant flow to keep temperatures stable.
-

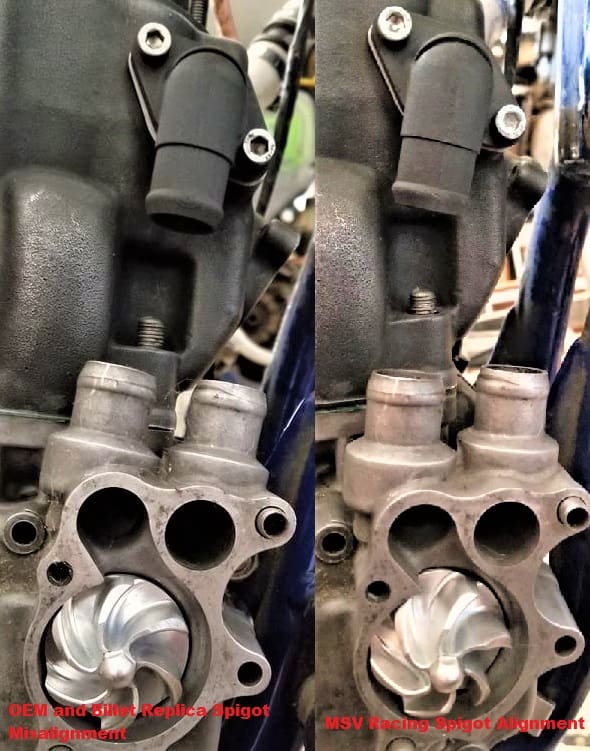

Optimized for H₂O Pump Efficiency
- Our 7° elbow inlet spigot is pivoted to point directly at the H₂O pump’s discharge port, unlike OEM and billet replicas that fail to align correctly. This enhancement boosts cooling system efficiency, ensuring better overall engine temperature regulation.
-

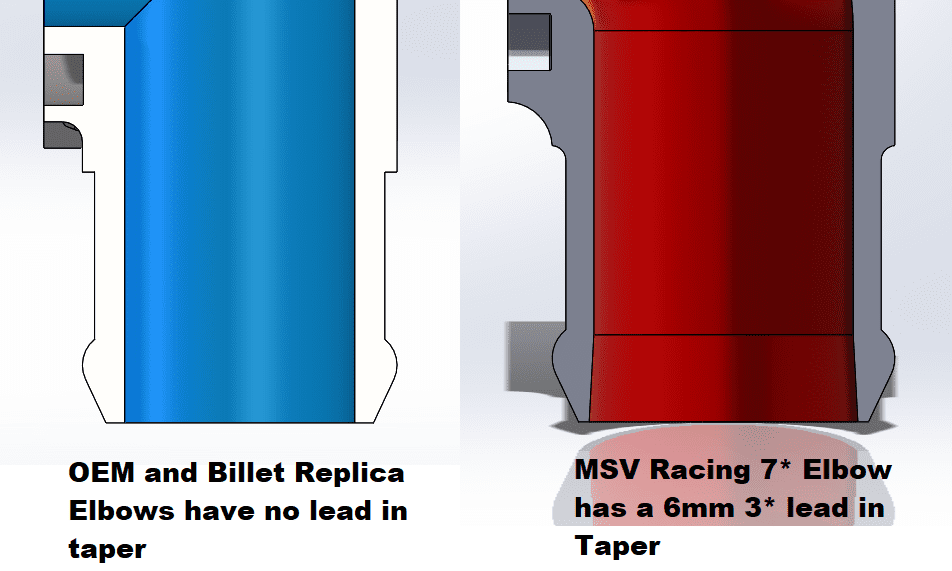

Tapered Lead-In Profile for Superior Flow
- We engineered a 6mm, 3° tapered lead-in profile on the spigot instead of a square-edged design, maintaining smooth laminar flow as coolant transitions from hose to elbow inlet. This further reduces turbulence, aeration, and backpressure, enhancing reliability under extreme conditions.

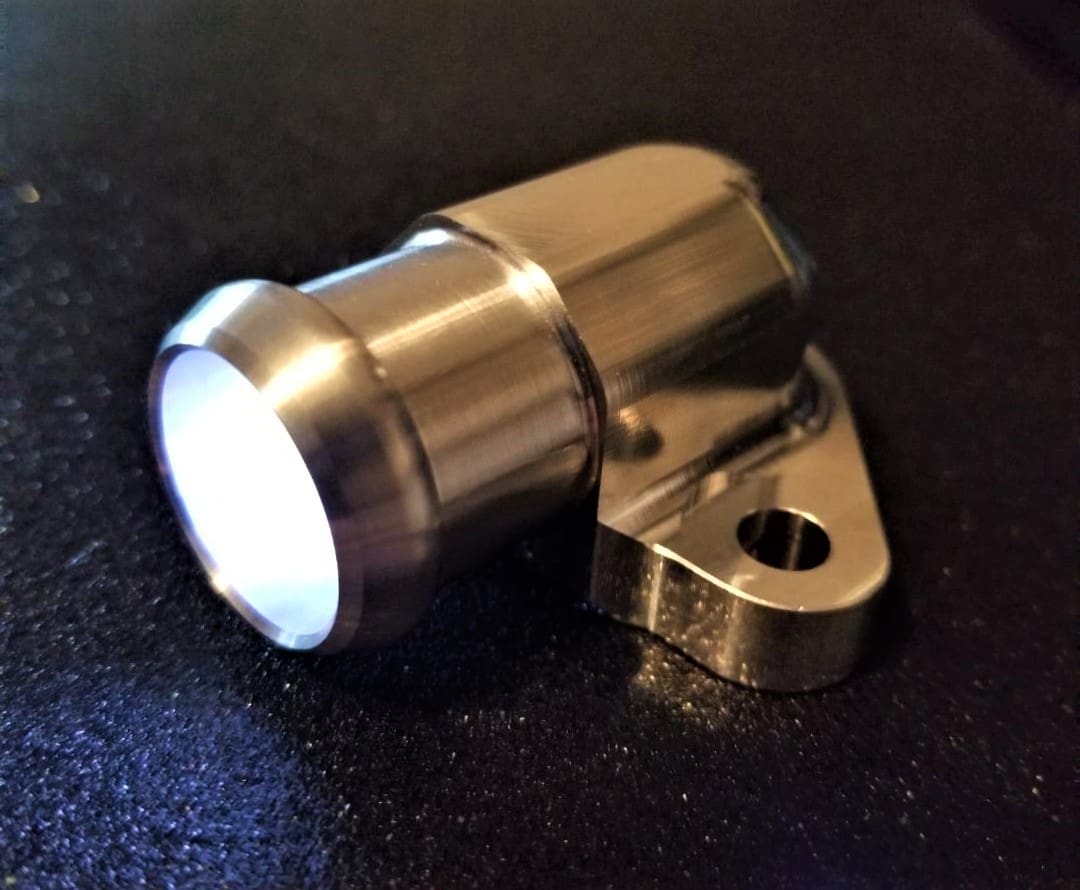

Available in Multiple Finishes!
Choose from: -

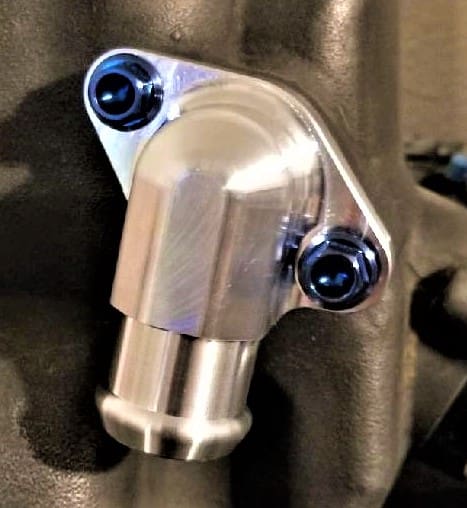

Shiny Billet -

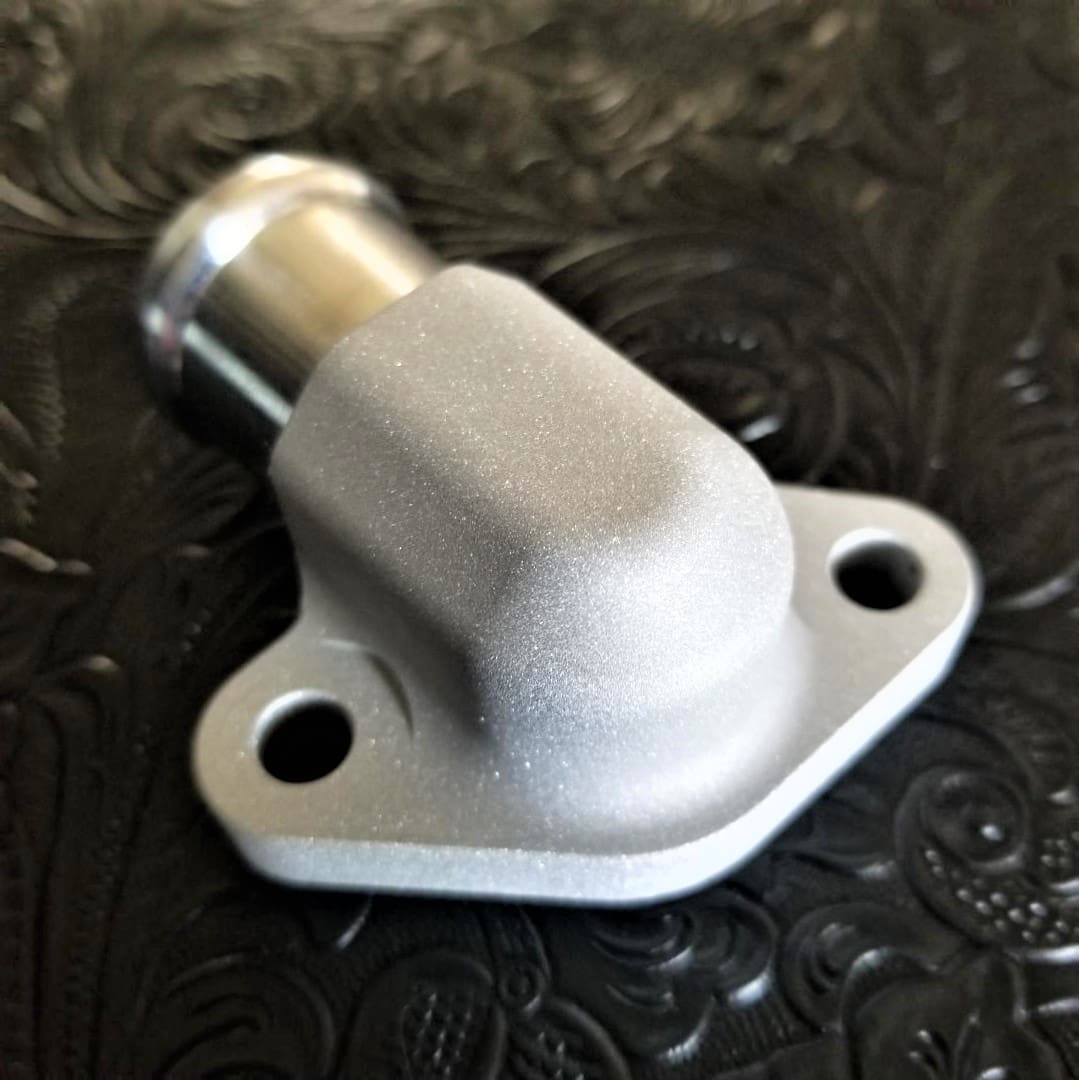

Silver (Cast Look) -

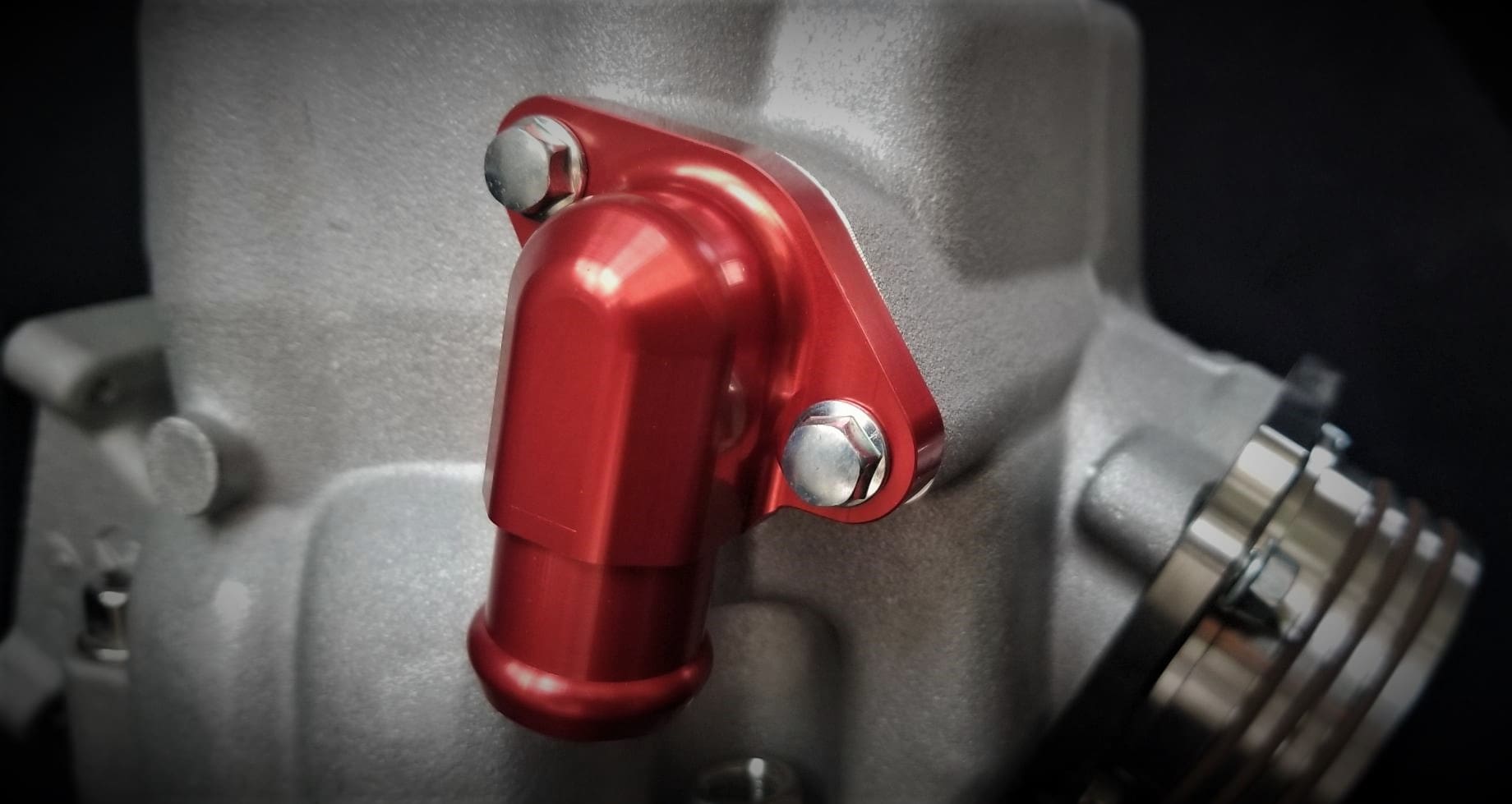

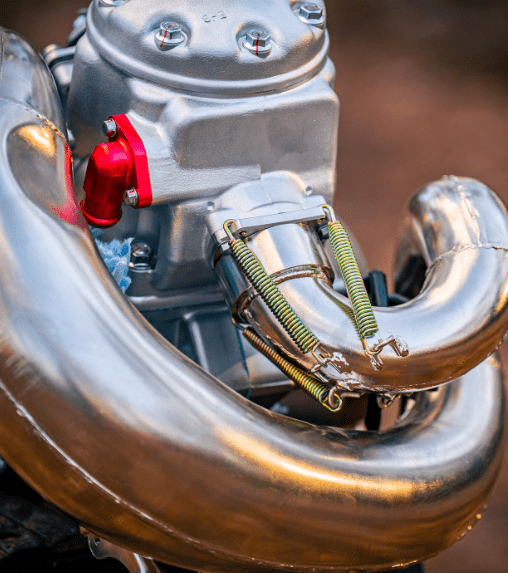

Military Spec (MIL-A-8625) Red Anodized -

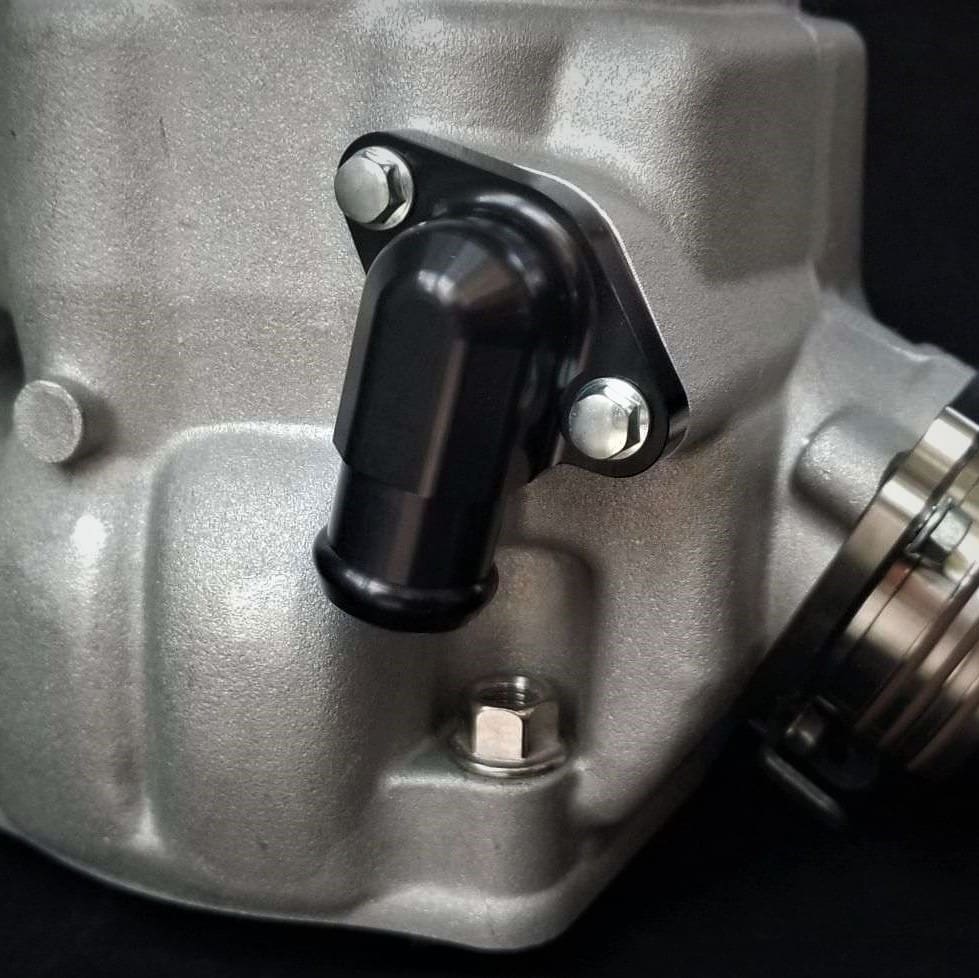

Military Spec (MIL-A-8625) Black Anodized Includes Viton (OEM Size) O-Ring
Upgrade Your CR500 Cooling System with MSV Racing!
Experience
better heat management, smoother coolant flow, and improved performance with the
MSV Racing HIGH FLOW 7° Elbow—precision-crafted for riders who demand
nothing less than the best.
"I now see a consistent 4*f temperature reduction!"-Steven
