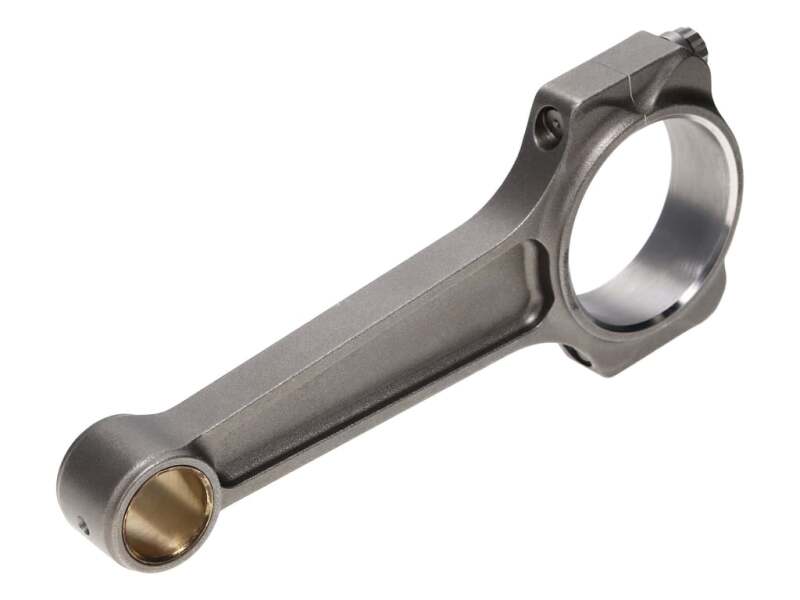

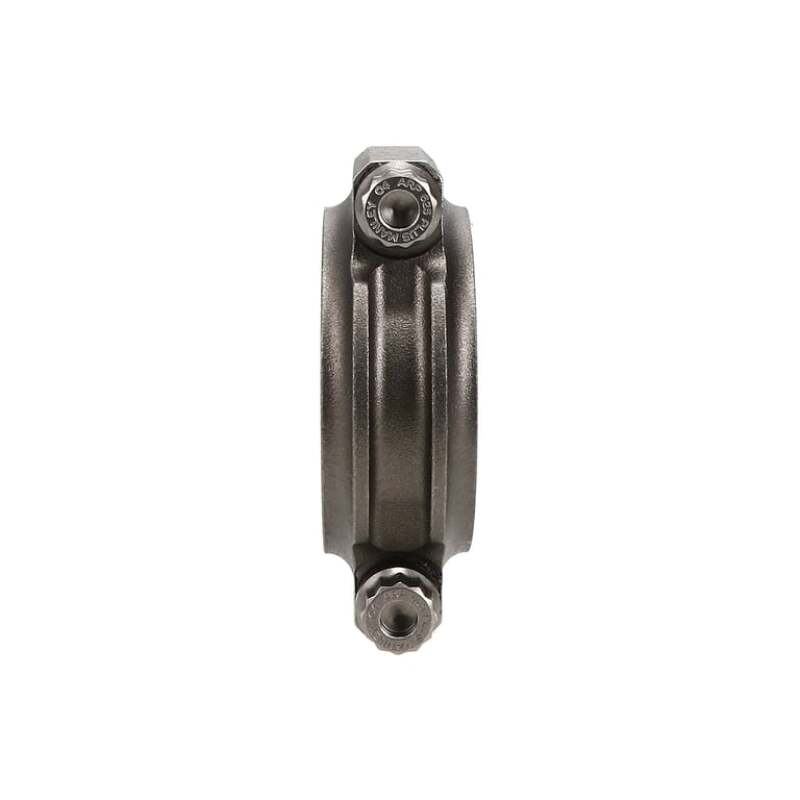

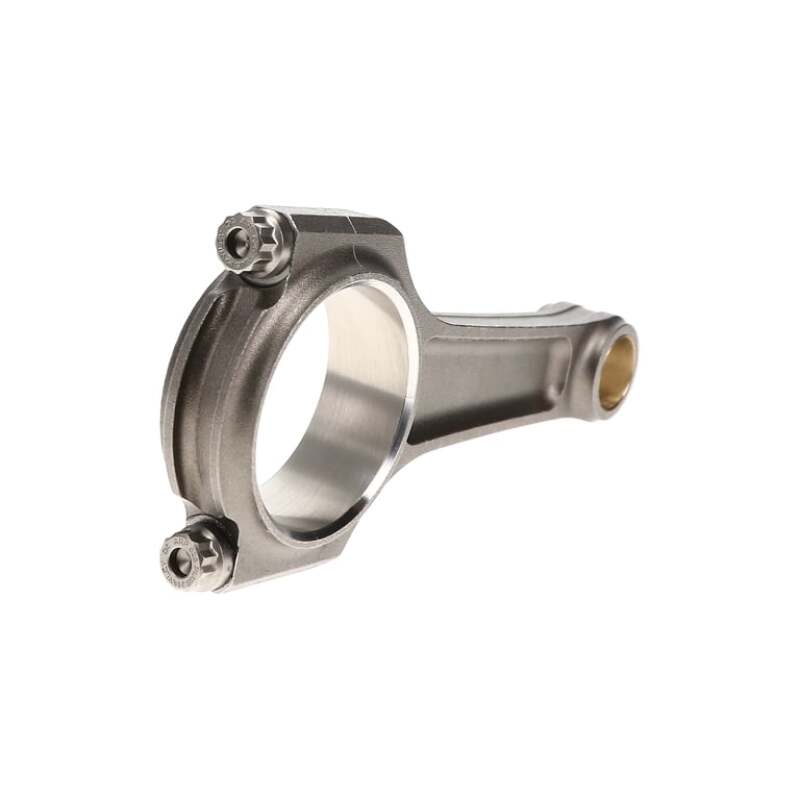

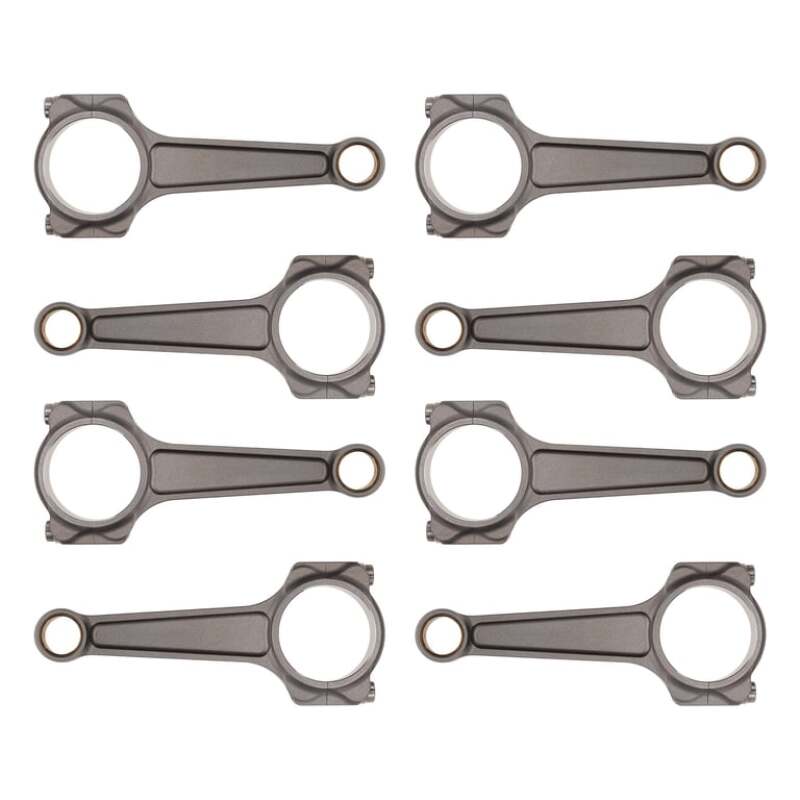

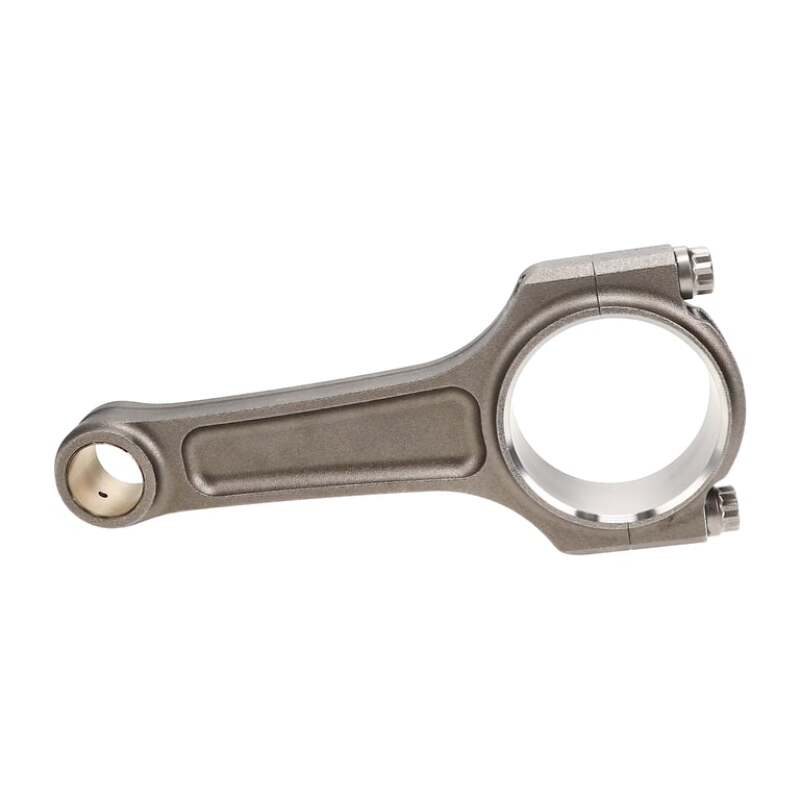

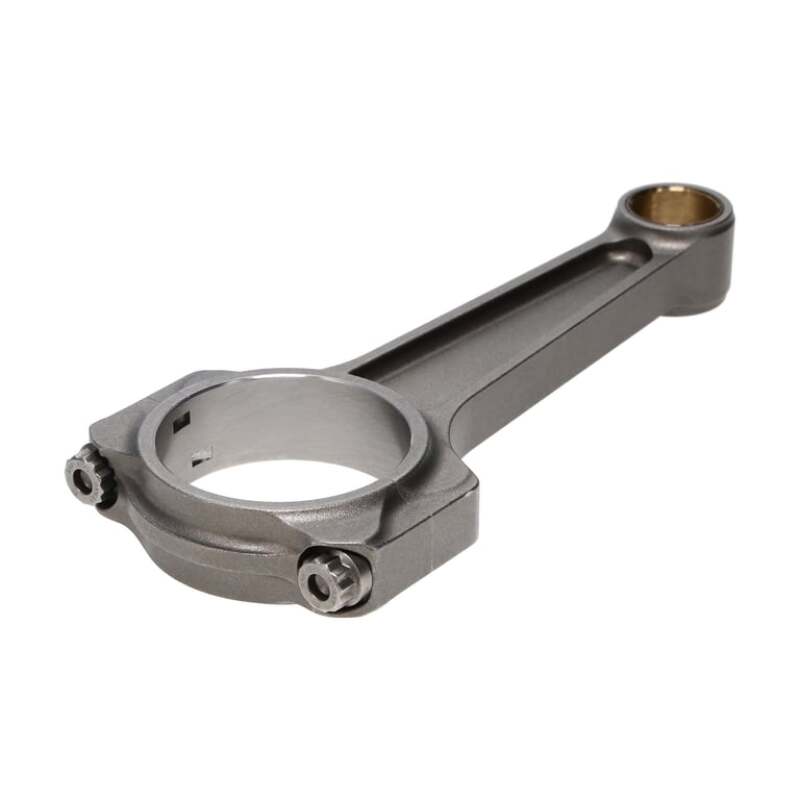

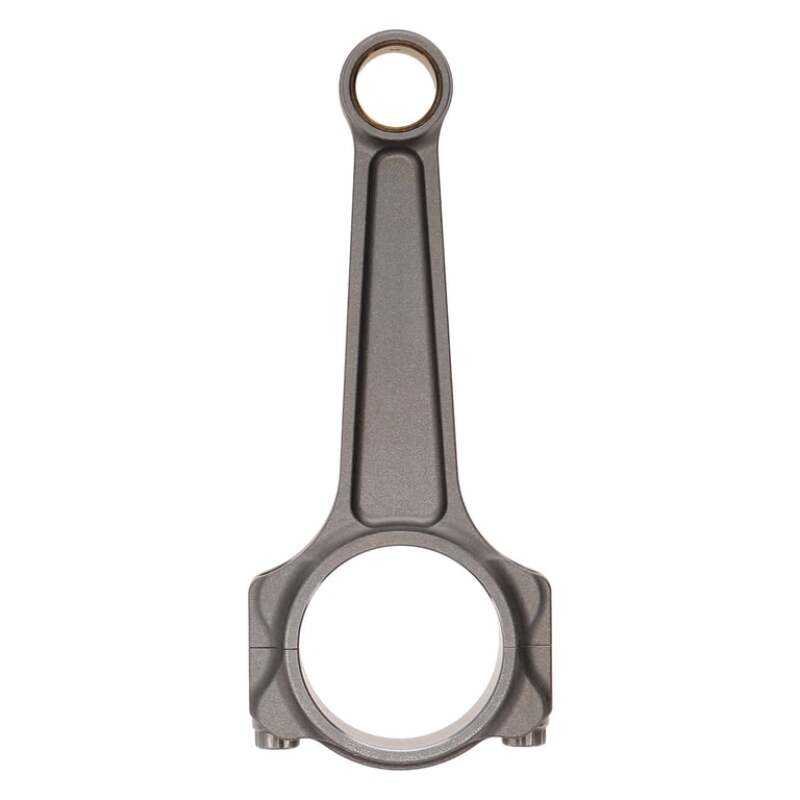

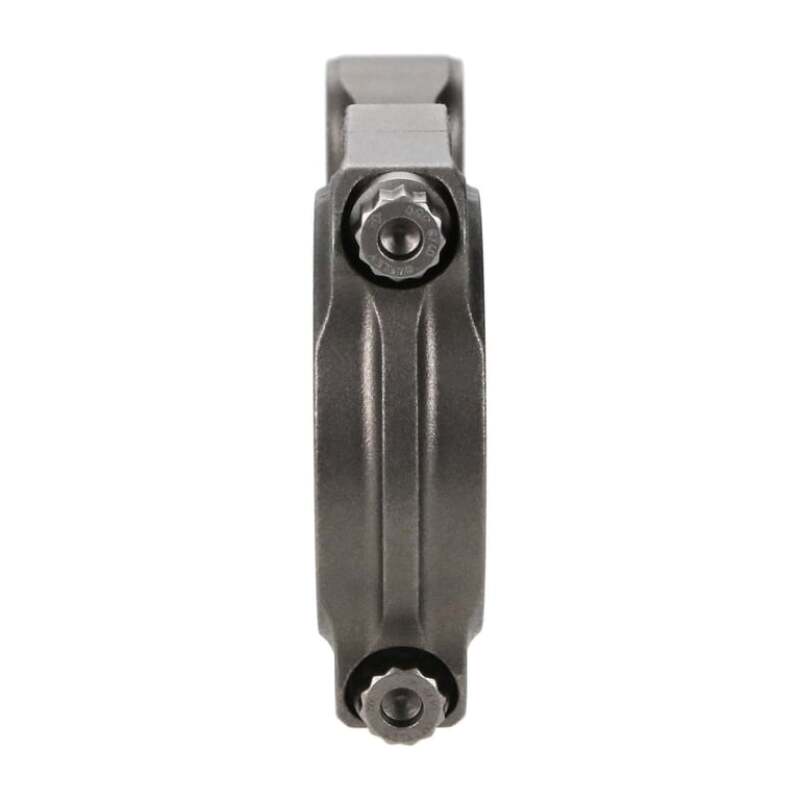

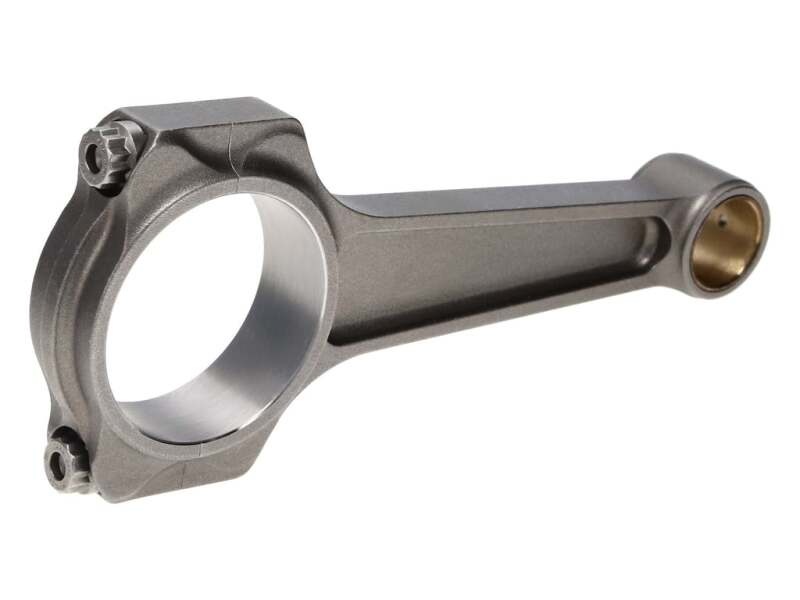

Manley's Turbo Tuff® I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.
Center To Center Length: 6.081 in. - Big End Bore: 2.2443 in. - Pin Bore: 0.8671 in. (22mm pin) - 3/8" ARP 2000 Bolts - Approx. HP Rating: 1700+
2004-2016 VK56DE, 2010-2024 VK56VD, 0.866 BEW, .900 PEW, 2.2443 BEH 42050 MODIFIED TO .895 PIN BUSHING - 42380 DOWEL BUSHING - 42351 BOLT - 3/8" ARP 2000. Also available by request: Pin Bore to fit 23mm wrist pin for higher HP applications
- Experience the pinnacle of connecting rod technology with our Turbo Tuff® rods, designed for ultimate performance
- Flywheel horsepower range: 4 cylinder - 1000+ / 6 cylinder - 1250+ / 8 cylinder - 1500+
- Specifically designed to handle high horsepower applications when using power adders
- Also available by request: Pin Bore to fit 23mm wrist pin for higher HP applications
- Shot peened after machining to MIL spec and 100% individually magnafluxed
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Units Per Sku: 1 |
