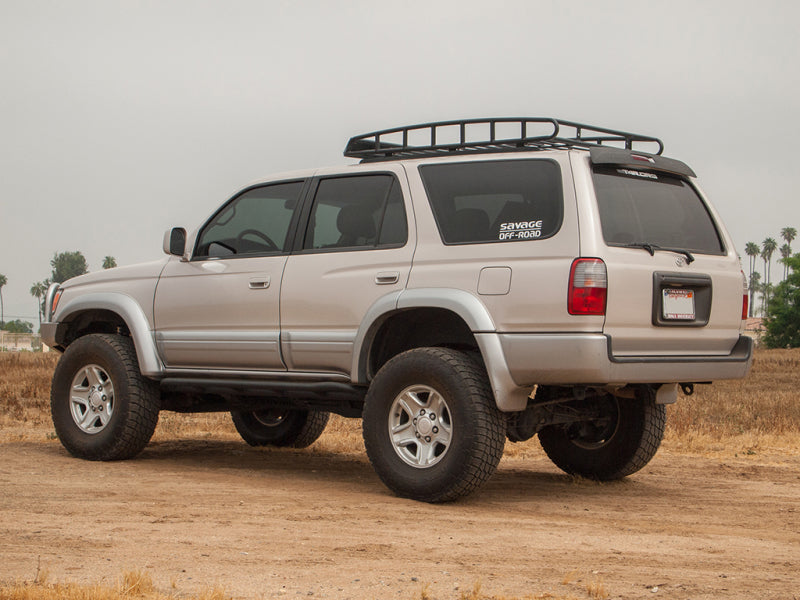

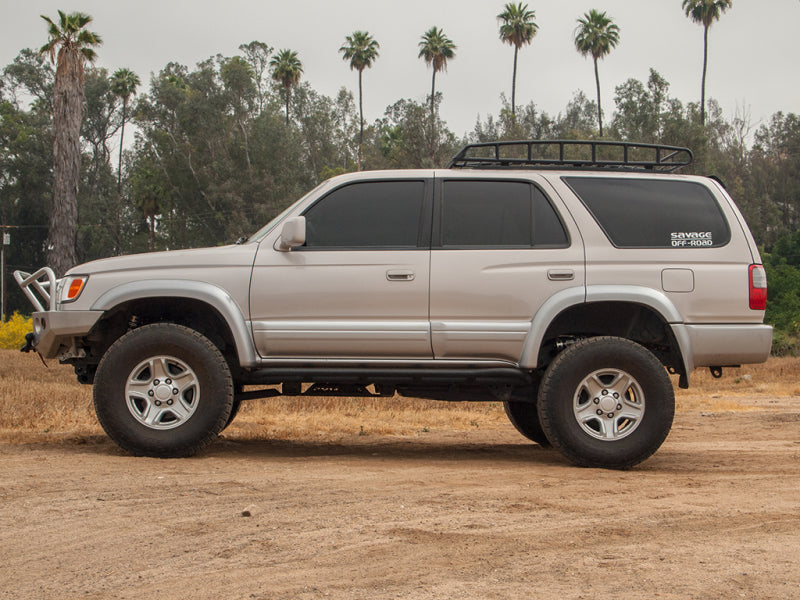

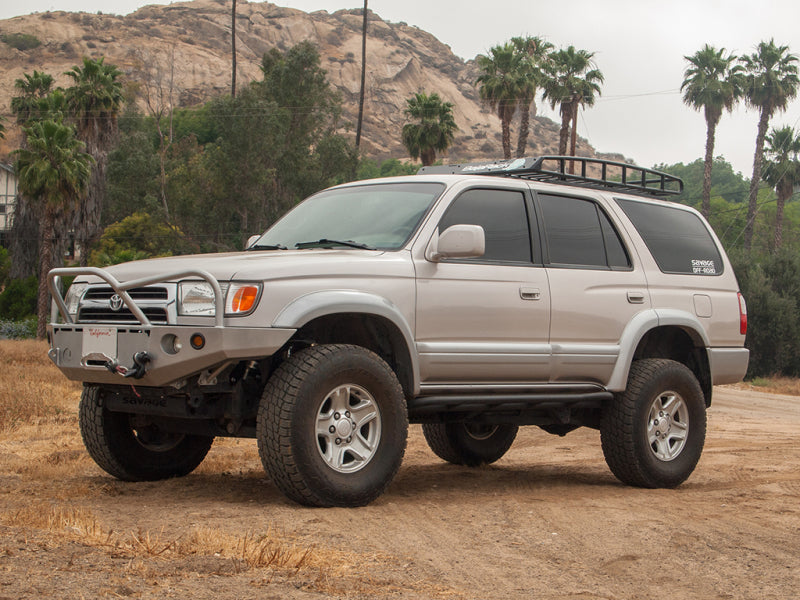

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor decades ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 2 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks,that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The addition of an ICON Delta Joint tubular steel upper control arm kit provides increased wheel travel over stock while also offering alignment correction for improved overall handling. ICON engineered 1" lift rear coil springs are also included to further increase rear end performance. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 2 suspension system is an excellent choice for those drivers looking to enhance the handling characteristics of their 3rd Gen on the road while also increasing overall performance in the dirt.
ICON 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation

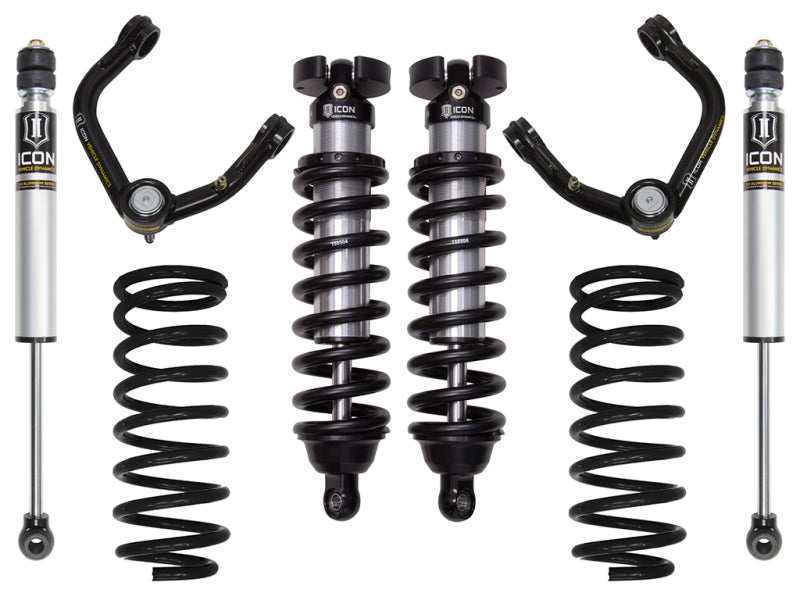

- Vehicle-specific tuned front and rear shocks provide superior damping and control
- ICON engineered rear coils provide 1" of lift and improved performance
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- Tubular steel upper control arms feature ICON Delta Joints
- CNC machined 6061 aircraft-grade aluminum components
- Increased wheel travel and ride quality over stock
- Coilovers are adjustable from 0-3" of lift height
- Bolt-on design makes for straightforward install
- Shocks are fully rebuildable and revalveable
- Decreased body roll
|
