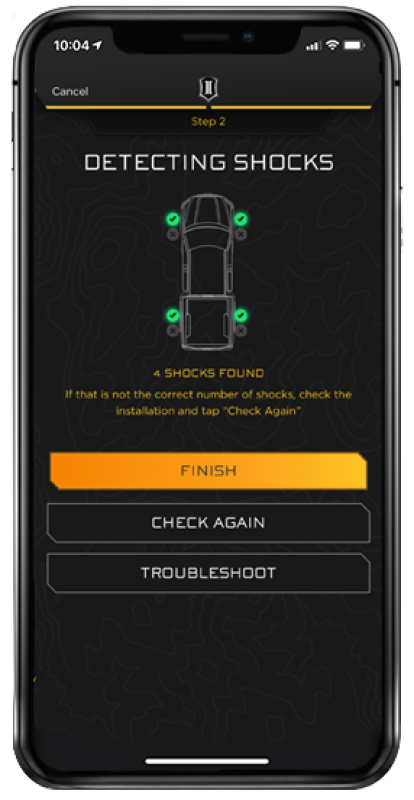

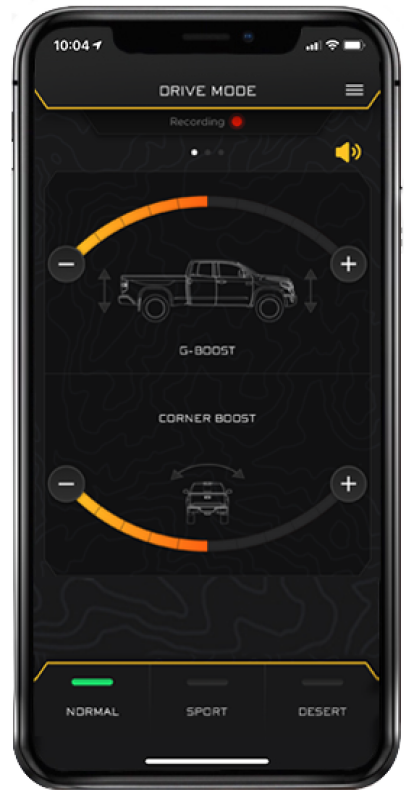

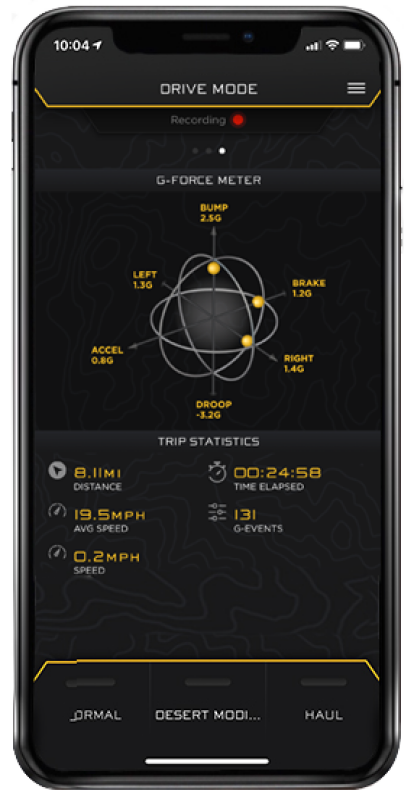

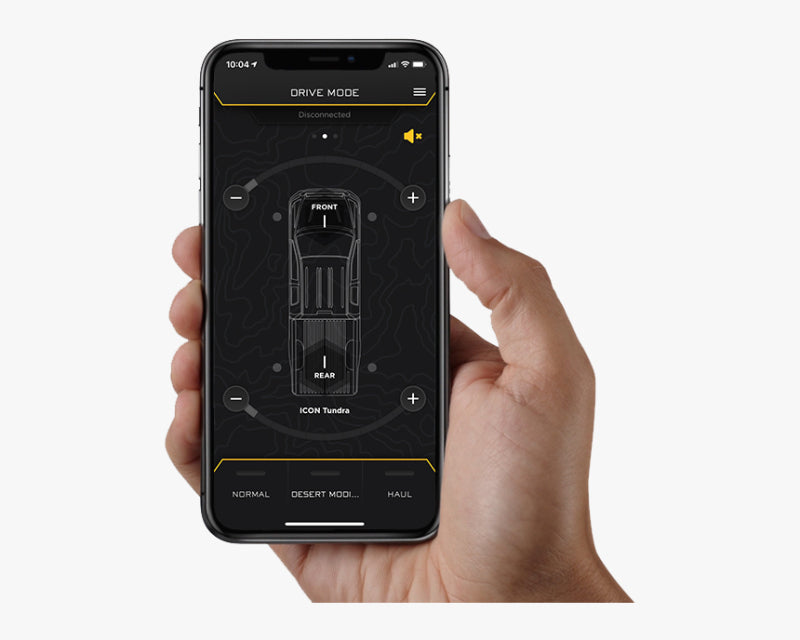

ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance and improve upon the functionality provided by the factory active shock system. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control (IIC) and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. With the shock absorbers no longer directly wired to the Raptor's ECU the IIC/CDEV system also allows drivers to dial in their preferred shock damping settings independently from the selected vehicle drive mode and with more refined resolution than afforded by the factory system. This allows for a more customized vehicle set up with the perfect blend of comfort and performance.

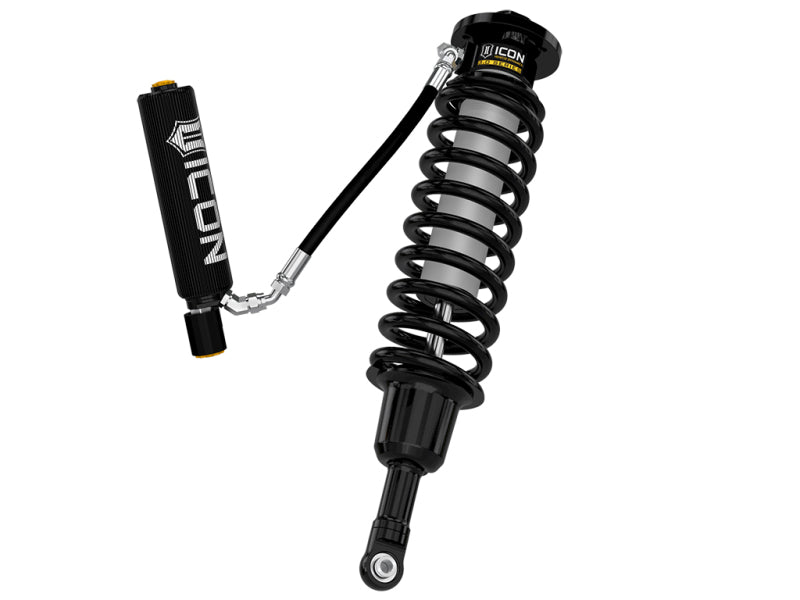

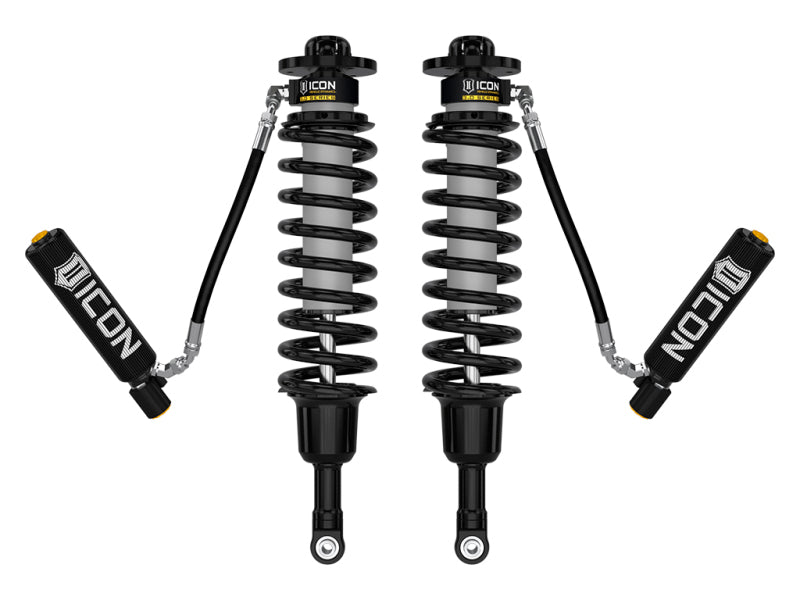

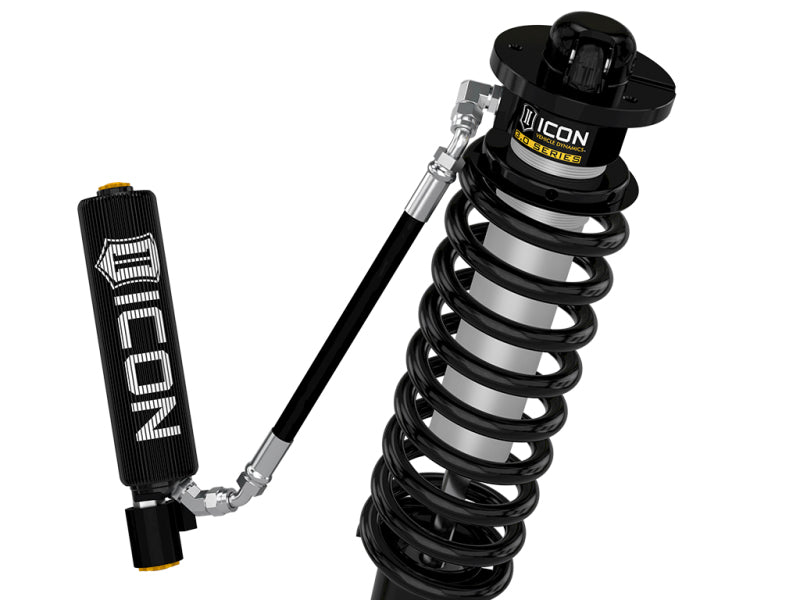

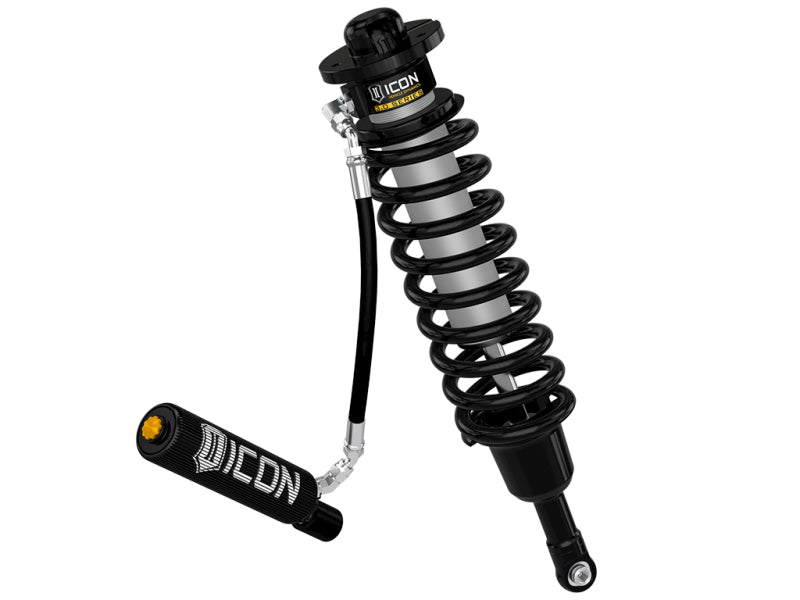

2017-2020 FORD RAPTOR FRONT 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT
APPLICATION NOTE #231: Vehicles equipped with dual solenoid OE shock absorbers also require damper interface device not currently offered by ICON but available from other third party manufacturers
- ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Barreled coil spring design maximizes travel and provides more efficient packaging
- Superior low speed control reduces body roll and increases on-road stability
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- Bolt-in design makes for an easy install into OEM shock location
- Cerakoted shock body with hard anodized piston and top cap
- Adjustable coilovers yield 1-3” of front lift height
- Heavy duty CNC machined 1” shock shafts
|
