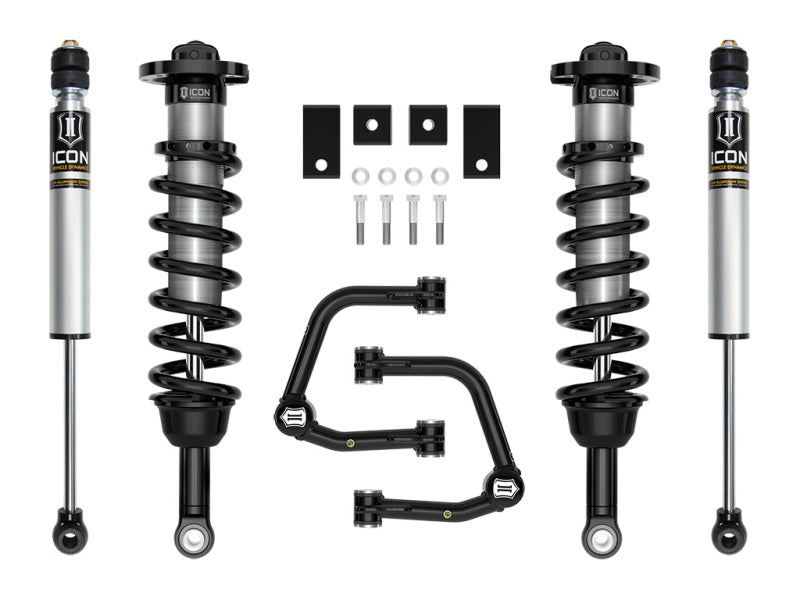

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2022-2025 Toyota Tundra builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs and a taller front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
Stage 4 includes a pair of 2.5 Series coilovers for 1.25-3.5” of front lift, greater performance, and 35” tire fitment. Tubular UCAs provide alignment correction and 2.0 Series rear shocks balance the tuning from front to rear.
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
- Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Included sway bar drop brackets reduce bind in OE sway bar links
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2022-2025 Toyota Tundra
|
