This Stage 3 system features the 2022-2025 Toyota Tundra VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 1.25-2.25” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.

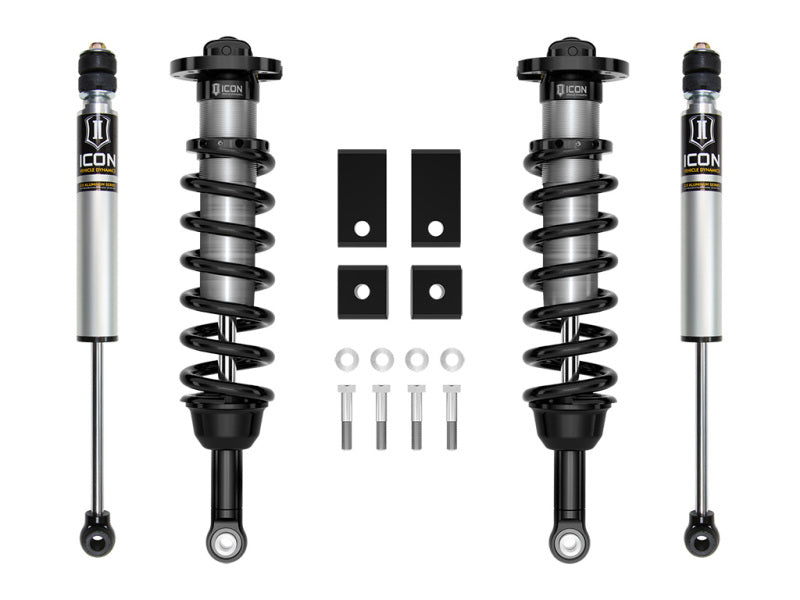

Stage 3 includes a pair of 2.5 Series coilovers for 1.25-2.25” of front lift, greater performance, and 35” tire fitment. Front sway bar brackets are also included and 2.0 Series rear shocks to balance the tuning from front to rear.
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
- Adjustable front ride heights from 1.25-2.25” of front lift over stock when used with stock UCAs
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Included sway bar drop brackets reduce bind in OE sway bar links
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2022-2025 Toyota Tundra
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
| Units Per Sku: 1 |
