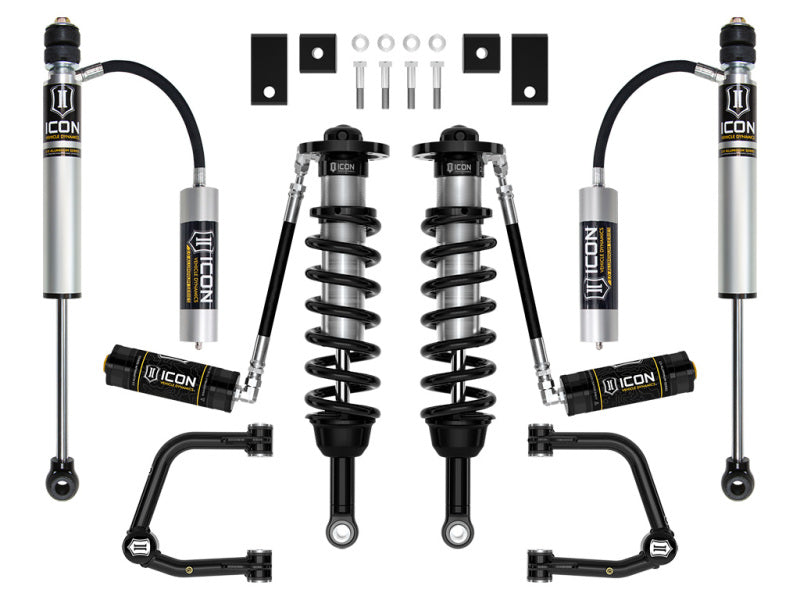

This Stage 6 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 2-3.5” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
Stage 6 includes 2.5 Series coilovers for 1.25-3.5” of front lift, better off-road performance and 35” tire fitment. Tubular UCAs provide alignment correction and 2.0 Series remote reservoir rear shocks balance the tune from front to rear.
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- 2.0 Aluminum Series rear remote reservoir shocks provide balanced tune with coilovers and increased performance
- Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- 100% Bolt-on system - no cutting or welding necessary for install
- Included sway bar drop brackets reduce bind in OE sway bar links
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2022-2025 Toyota Tundra
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
| Units Per Sku: 1 |
