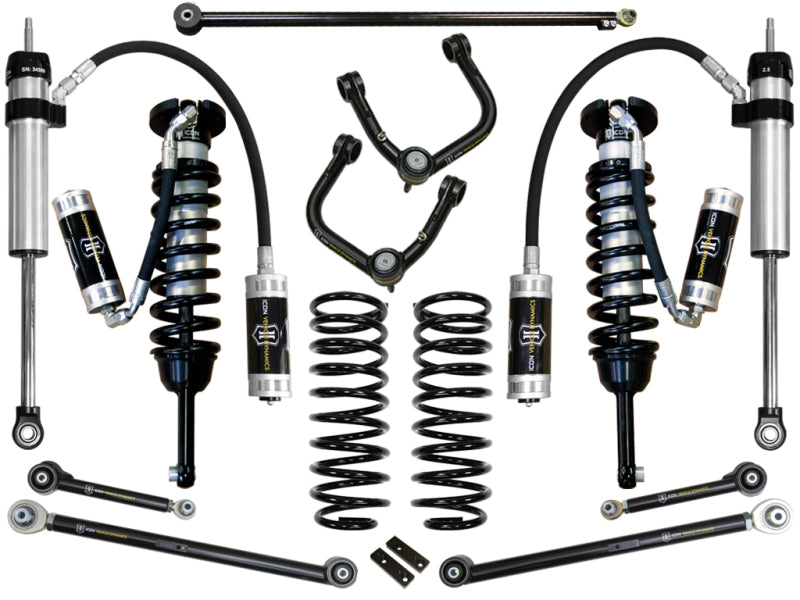

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 6 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. ICON's tubular steel upper and lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that creates an additional 20% of damping force to help better control hard bottom outs.
ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
APPLICATION NOTE #46: Suspension system compatible with KDSS. Front sway bar relocation brackets not used for KDSS equipped vehicles. Certain years require trimming for front reservoir bracket fitment.
- Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
- Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
- Tubular upper control arms for added strength, durability, and improved alignment geometry
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Adjustable rear track bar proper rear axle placement under vehicle
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-on system means no cutting or welding necessary for install
- Adjustable coilovers provide 0-3.5" of front lift height
- 6061 aircraft grade aluminum CNC machined components
- Increased wheel travel and ride quality over stock
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
| Units Per Sku: 1 |
