This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

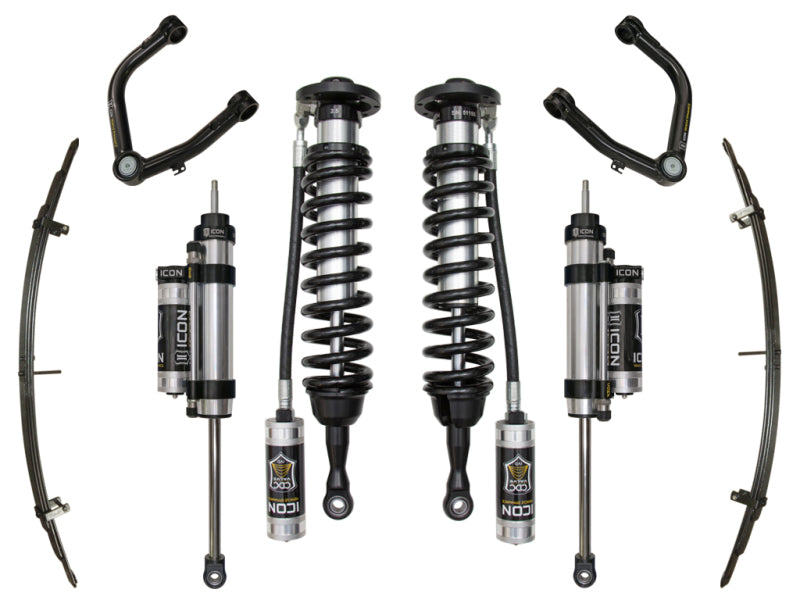

2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 7 SUSPENSION SYSTEM WITH TUBULAR UCA
APPLICATION NOTE #43: 07-UP TUNDRA TUBULAR UPPER CONTROL ARM IS NOT COMPATIBLE WITH ALL SUBFRAME-DROP LIFT KITS. FOR ADJUSTABILITY PURPOSES THESE KITS MAY REQUIRE THE USE OF BILLET UPPER CONTROL ARM (PART #58560DJ).
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 100% Bolt-on system - no cutting or welding necessary for install
- FK rod end bearings for extended longevity and minimal deflection
- Rear expansion pack for 1.5” of lift and better ride quality
- 6061 Aircraft grade aluminum CNC machined components
- CDC tuned front shocks for a custom tuneable ride
- Adjustable coilovers from 1-3" of lift height
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
