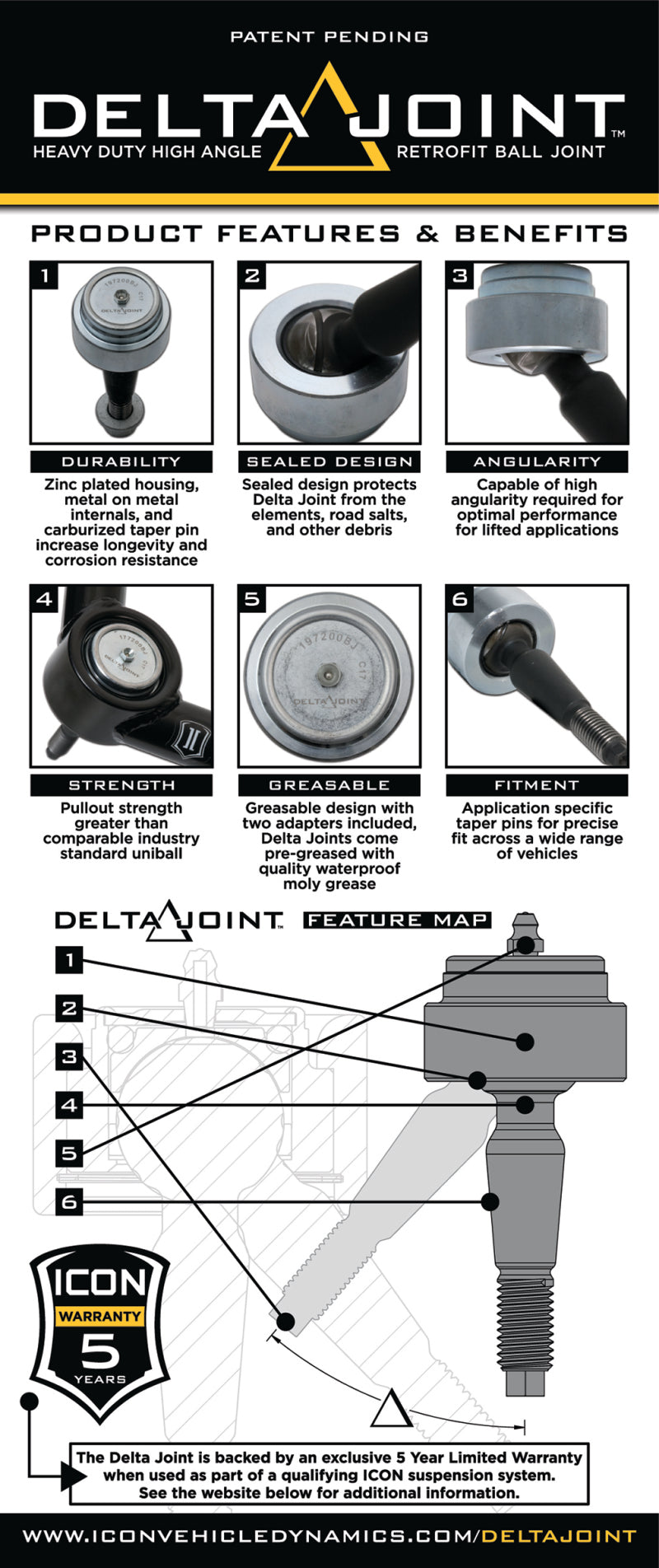

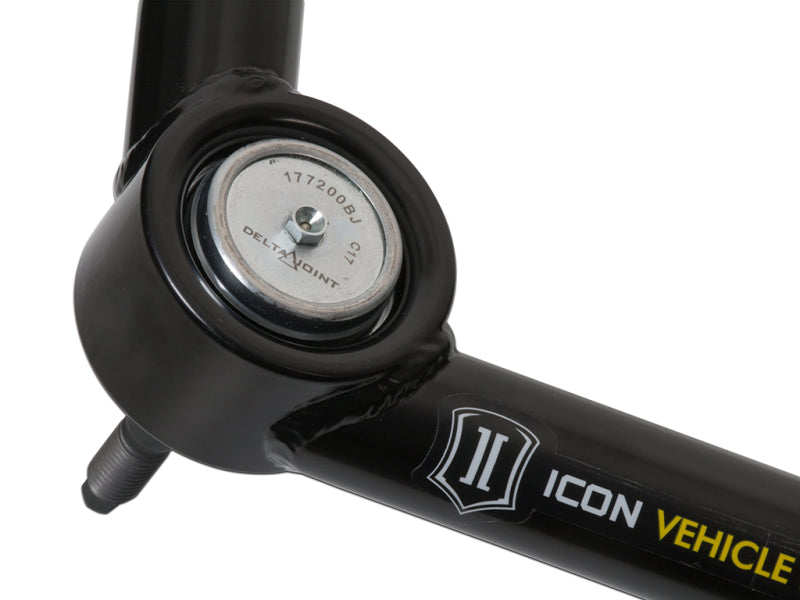

These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

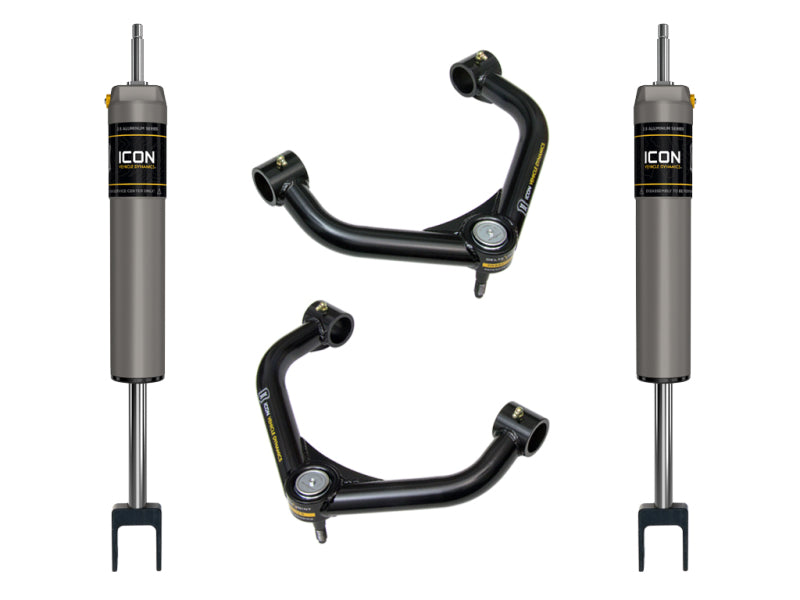

2011-2019 GM HD 0-2" LIFT 2.5 INTERNAL RESERVOIR SHOCK SYSTEM WITH UPPER CONTROL ARMS
Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.5” Backspace / 12mm Offset
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8" diameter induction hardened, chrome plated shock shaft

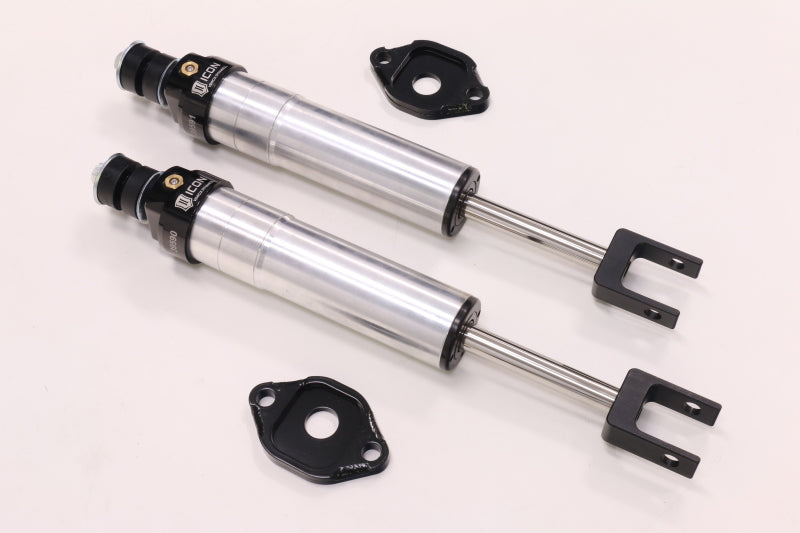

- Nitrogen charged monotube design with internal reservoir
- 6061 aircraft grade aluminum CNC machined components
- CNC Machined Bushing Housings and Sleeves
- Black Semi-Gloss Powder Coat Finish

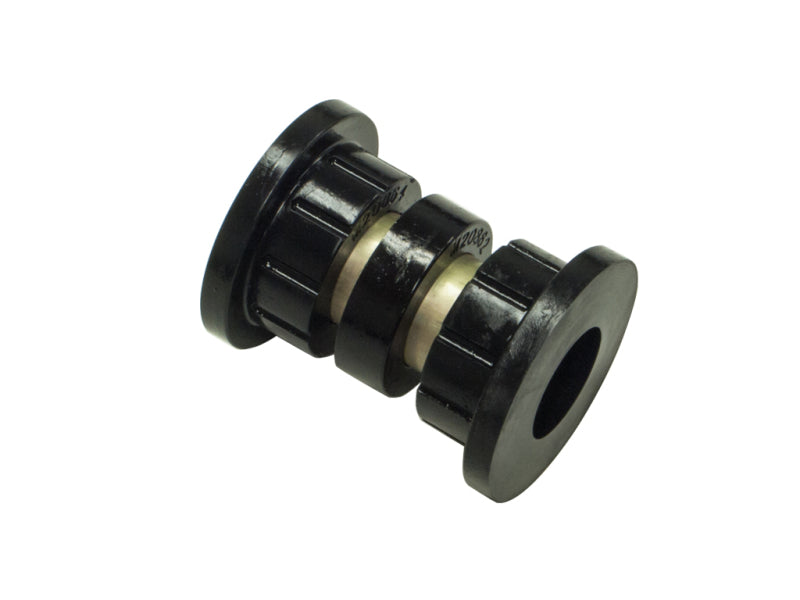

- Serviceable Dual Stage Bushings
- 1026 DOM Steel Construction
- Built-In Caster Correction
- 100% Revalveable
- ICON Delta Joint
- 100% Rebuildable
- CNC Bent Tubing
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Clearance Item: t |
| Regular Stock: false |
| Units Per Sku: 1 |
