ICON’s 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 5 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 4 setup – ICON tubular Delta Joint upper control arm kit, 2.5 Aluminum Series Remote Reservoir rear shocks, 2” rear coil springs, and a tubular rear lower link arm kit - but sees the addition of extended travel 2.5 Series Remote Reservoir coilover shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.

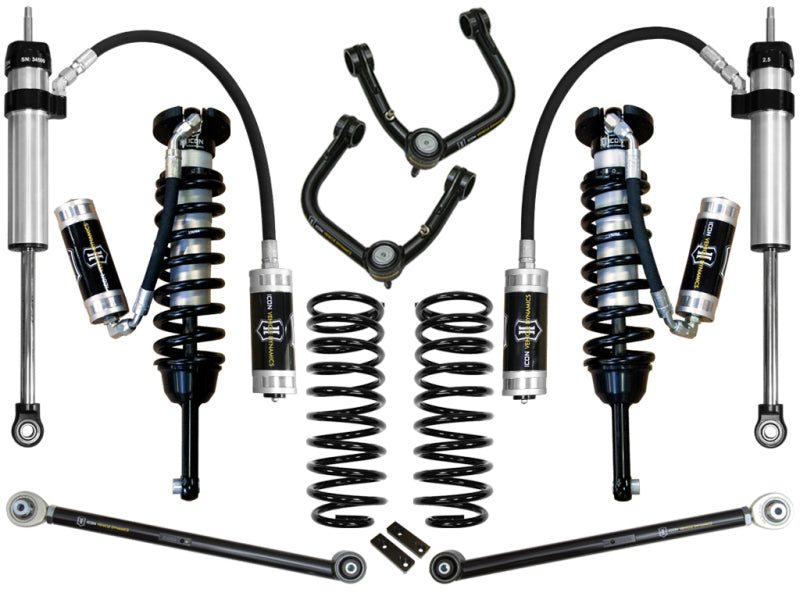

2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5" LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA
APPLICATION NOTE #35: REMOTE RESERVOIR MOUNTING BRACKETS MAY INTERFERE WITH AFTERMARKET BUMPER MOUNTS / WINDSHIELD WASHER BOTTLES
- Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
- Tubular rear lower links offer increased strength, improved geometry, and pinion angle adjustment
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-on system means no cutting or welding necessary for install
- Adjustable coilovers provide 0-3.5" of front lift height
- 6061 aircraft grade aluminum CNC machined components
- Increased wheel travel and ride quality over stock
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
| Units Per Sku: 1 |
