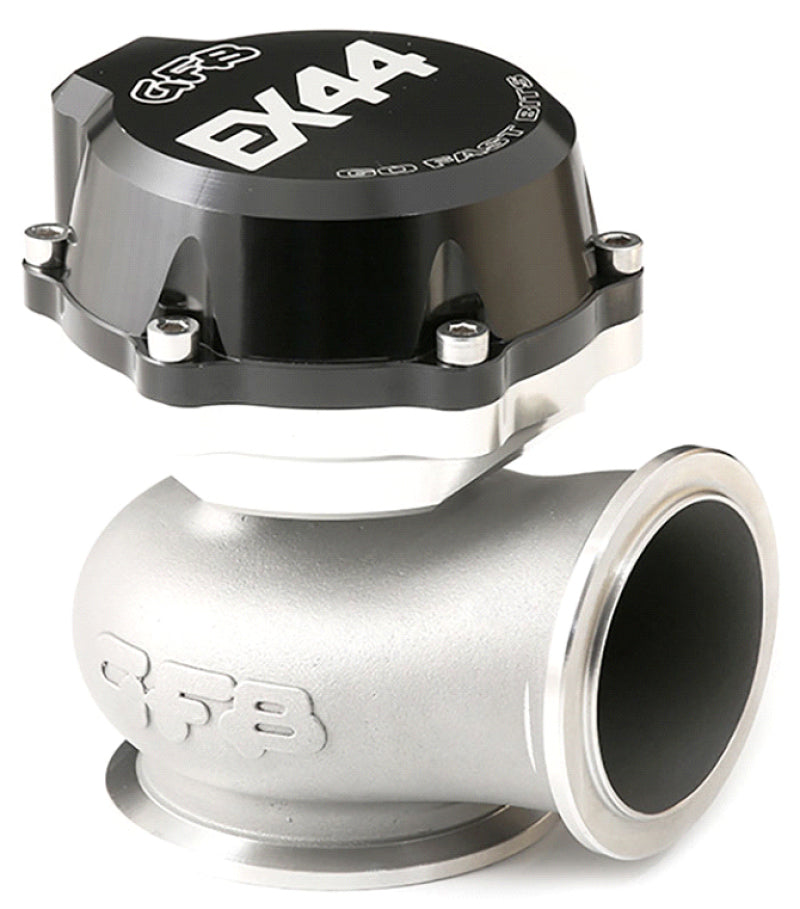

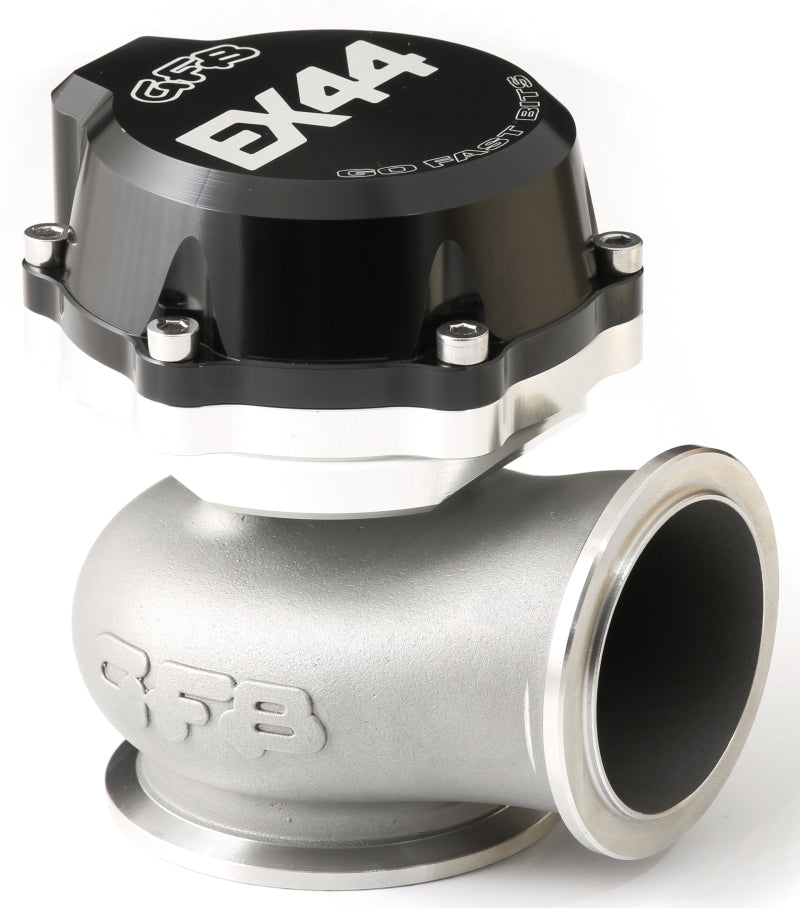

GFB 44mm V-Band External Style Wastegate

The 7002 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 44MM VALVE, ? V-BAND INLET AND OUTLET (DIRECTLY COMPATIBLE WITH TIAL MV-R FLANGES), ? 100MM OVERALL HEIGHT, ? ADDITIONAL SPRING AVAILABLE SEPARATELY IS 7PSI (MIDDLE), ? SUPPLIED WITH 10PSI (OUTER) SPRING AND 5PSI (INNER) SPRINGS ? USE SEPARATE OR TOGETHER FOR BASE BOOST PRESSURES OF 5, 10, OR 15PSI, ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURES OF 5, 7, 10, 12, 15, 17 AND 22PSI,
44mm V-Band Style external style wastegate.
Universal

• MOST COMPACT WASTEGATE RANGE ON THE MARKET
  BODY, VALVE, SEAT AND ALL MOUNTING HARDWARE IS CNC MACHINED FROM HIGH-TEMP STAINLESS STEEL
  ACTUATOR HOUSING CNC MACHINED FROM BILLET 6061-T6 ALUMINIUM
  NOMEX-REINFORCED SILICONE DIAPHRAGM


• INTERNAL SHROUD PROTECTS VALVE STEM FROM EXCESSIVE HEAT AND PREVENTS CARBON-RELATED STICKING
  V-BAND CLAMP MOUNTING SYSTEM
  Manufactured In Australia under ISO 9001
