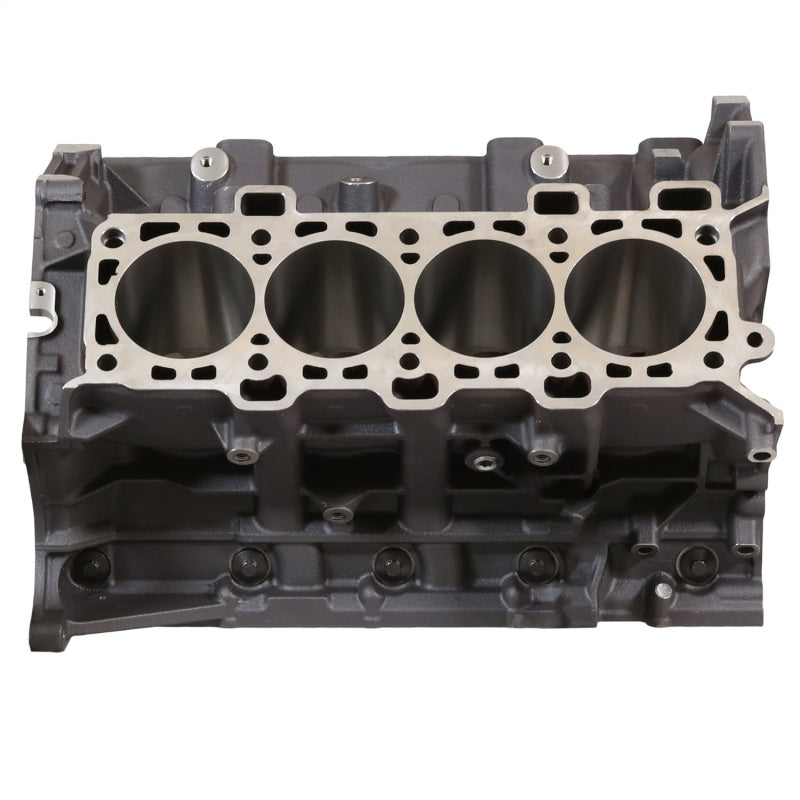

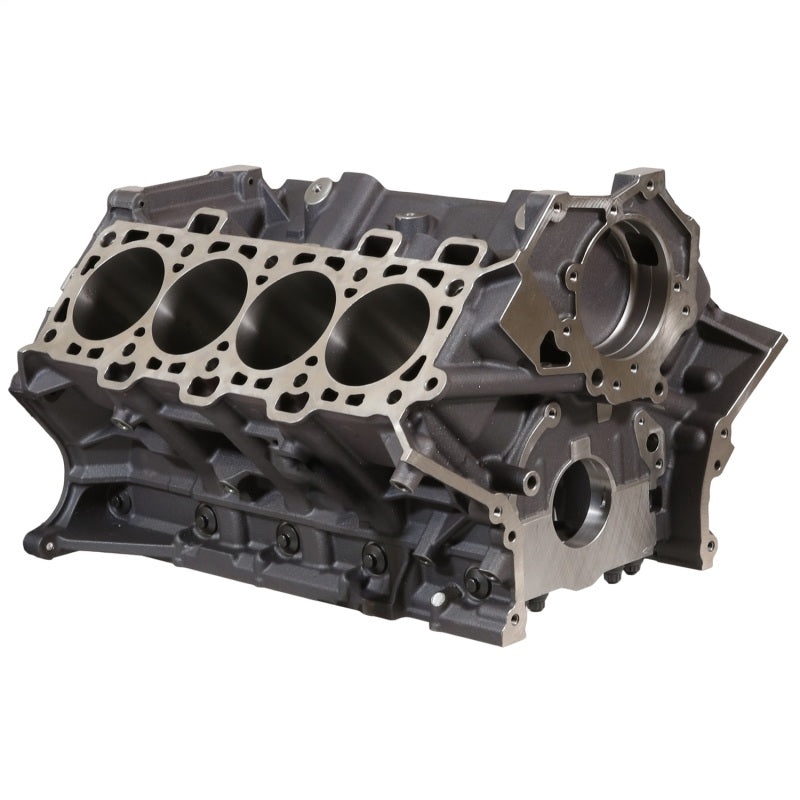

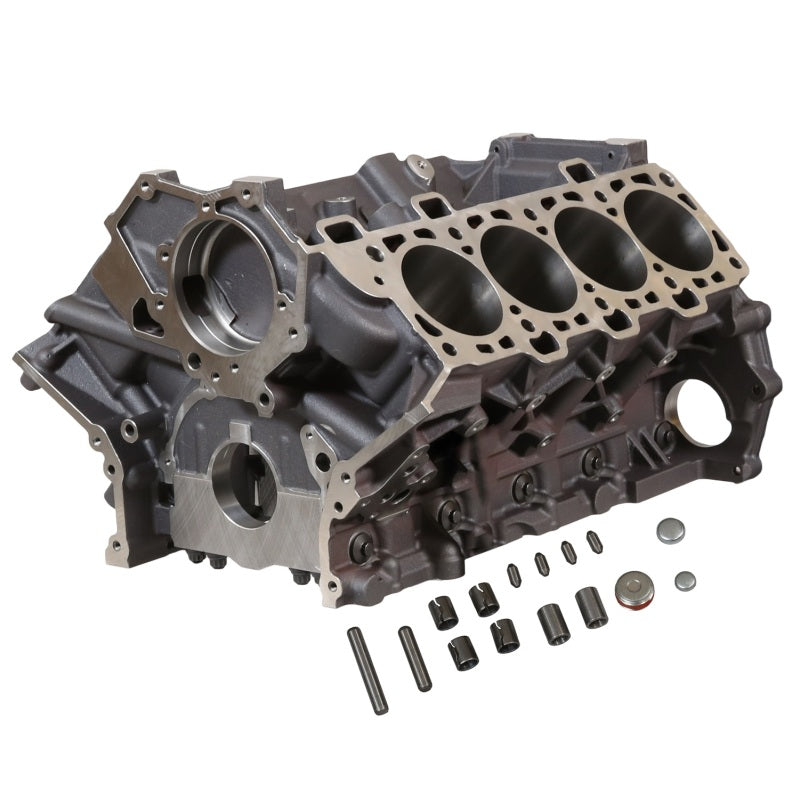

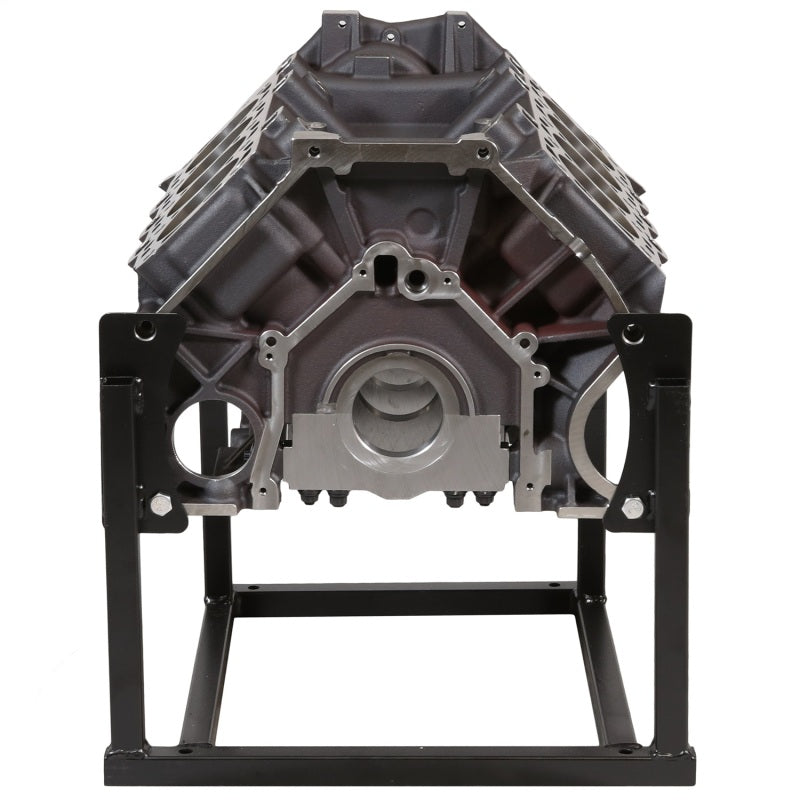

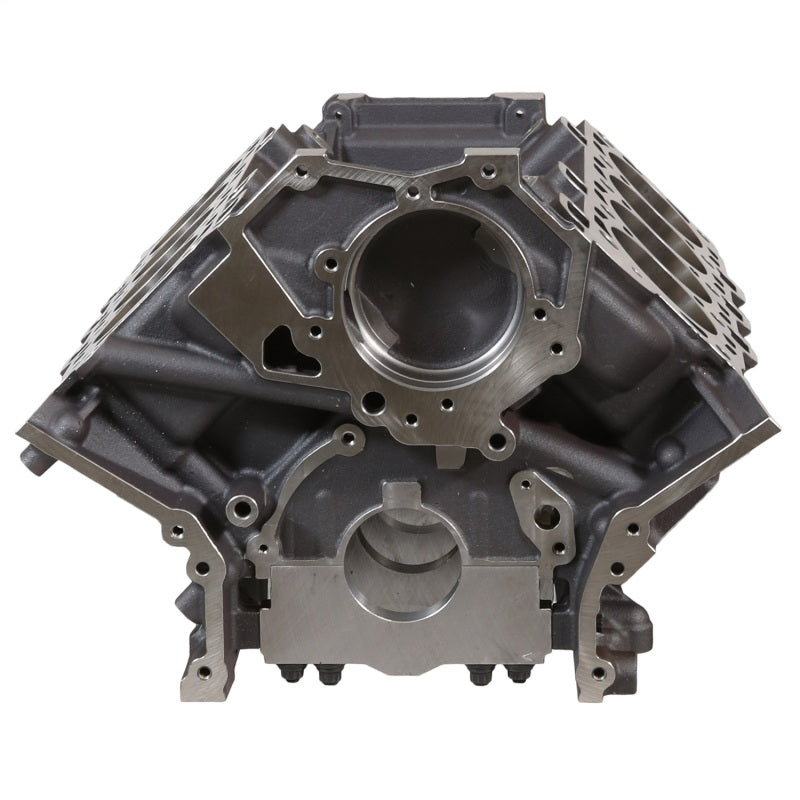

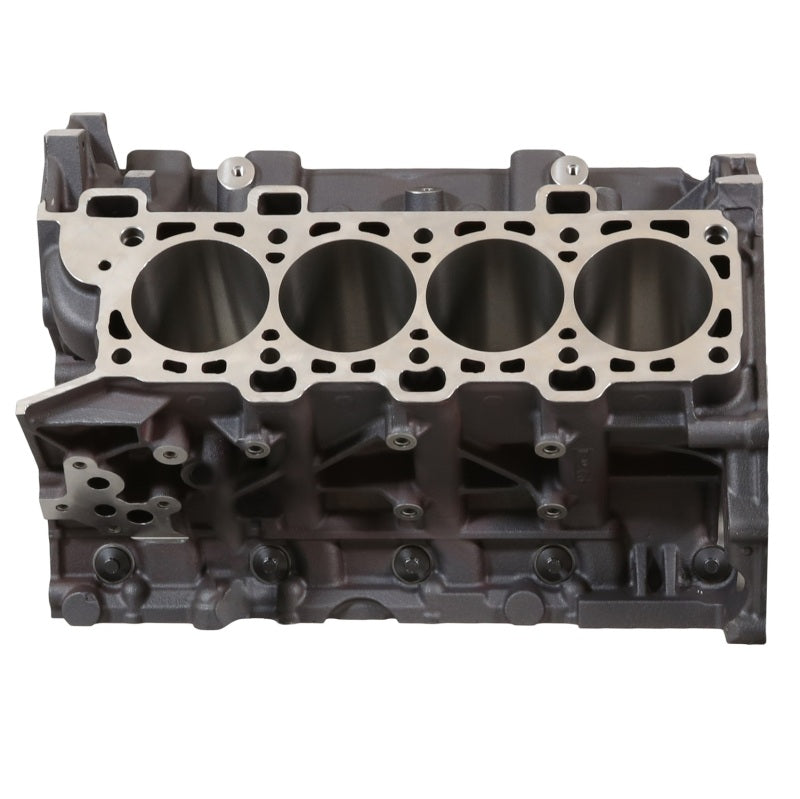

Ford Racing Coyote Cast Iron Race Block

Ford Performance cast iron version of the 2011-2017 Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort/boosted Coyote engine builds.
Coyote Production Engine Block; Iron; Race;

• Revised Deck Design For Added Strength Around The Water Jackets


• Accepts Gen 1; Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads


• Accepts Gen 1 And Gen 2 Coyote 5.0L Cylinder Heads


• Billet Steel 6 Bolt Main Caps w/Arp Hardware


• Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads


• Standard Coyote 100 mm Bore Spacing


• Lengthened Bores For Added Strength


• Finished Bore 92.2 mm [3.630 in.]


• Finished Bore 92.2 mm (3.630 in.)


• Maximum Stroke 99 mm (3.897 in.)


• Maximum Bore 95.0 mm [3.740 in.]


• Maximum Bore 95.0 mm (3.740 in.)


• Maximum Stroke 99 mm [3.897 in.]


• Deck Height 227 mm [8.937 in.]


• Deck Height 227 mm (8.937 in.)


• Maximum Displacement 5.6L


• Utilizes 12 mm Head Bolts


• Accepts Gen 1
