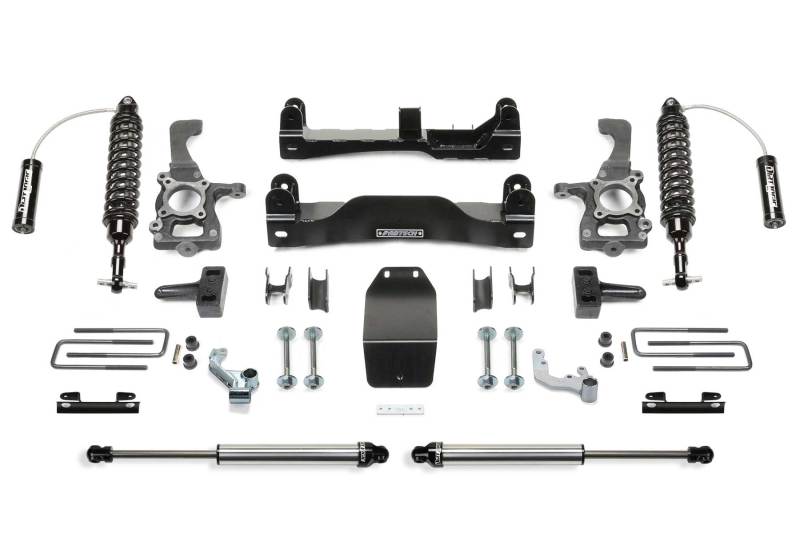

Fabtech 2014 Ford F150 4WD 4in Perf Sys w/Dlss 2.5 C/O Resi & Rr Dlss

Fabtech's 4'' F150 system utilizes their proven heavy duty construction and design features found in their 6'' systems but with less lift and at a much lower price. This 4'' System allows use of 35'' tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Performance System features Dirt Logic 2.5 Coilover front shocks and Dirt Logic 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride. The 4'' System allows use of 33'' or 35'' tires and is ESC (Electronic Stability Control) and Traction Control compliant.
Performance Lift System; 4 in. Lift; w/Front Dirt Logic SS 2.5 Resi Coilovers; Rear Dirt Logic SS Shocks;
TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING

• Everything You Will Need To Lift Your Vehicle


• No Driveshaft Change Required For Auto Trac


• Allows Use Of Stock Tires And Wheels


• Retains Factory Steering Centerlink


• Retains Factory Upper Control Arms


• Increased Caster For More Control


• Quick No Weld Installation
