Fabtech's 6in Radius Arm system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle's suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. This Radius Arm system is a complete upgrade to the factory suspension and will provide additional strength for use with oversized tires. The design has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly designed suspension geometry is what sets this system apart from all other Radius Arm suspensions. Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. Fabtech Replacement Radius Arms. Dirt Logic 4.0 Resi Coilovers. Trac Bar Relocation Bracket. Sway Bar Drop Brackets. Pitman Arm. Rear Block & U-bolt Kit. Rear Dirt Logic 2.25 shocks.
Radius Arm System; 6 In. Lift; Incl. Front 4.0 Dirt Logic Shocks And Rear 2.25 Dirt Logic Shocks;
TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.

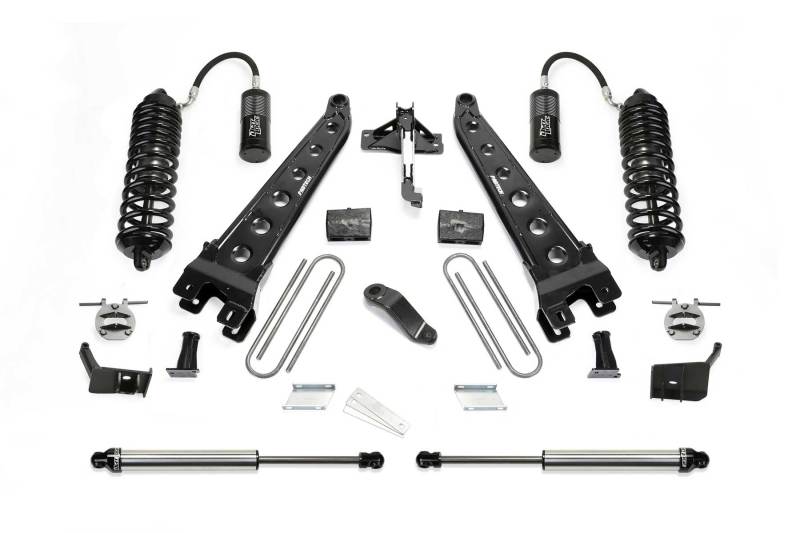

- Fabtech Replacement Radius Arms
- Dirt Logic 4.0 Resi Coilovers
- Trac Bar Relocation Bracket
- Rear Block And U-Bolt Kit
- Sway Bar Drop Brackets
- Pitman Arm
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
