Fabtech's new 4in crossmember systems utilize their proven heavy duty construction and design features found in their 6in systems but with less lift for use with 33in tall tires. These 4in systems feature high arched lower control arm crossmembers constructed of 1/4in thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Basic System includes front coilover spacers that utilize the factory Coilover shocks. Rear shock options include Performance or Stealth monotube shocks.

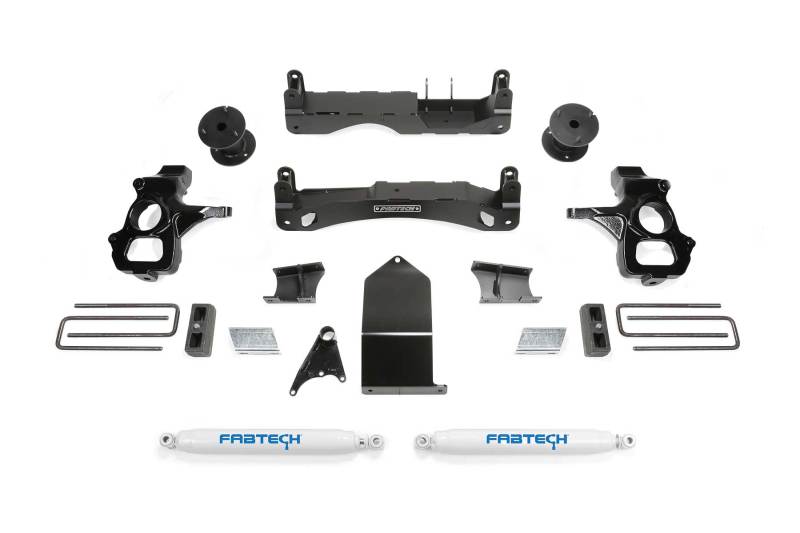

4" BASIC SYS W/ PERF SHKS 14-18 GM C/K1500 P/U W/ OE FORG STL UCA.
TIRE SIZE - 33/12.50R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 128. FITS MODELS WITH FACTORY FORGED BLACK STEEL UPPER CONTROL ARM.; 166. WILL NOT FIT MODELS WITH FACTORY MAGNERIDE SHOCKS.
- Everything You Will Need To Lift Your Vehicle
- Designed For The Budget Minded Enthusiast
- Utilizes The Stock Radius Arm
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Clearance Item: t |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
