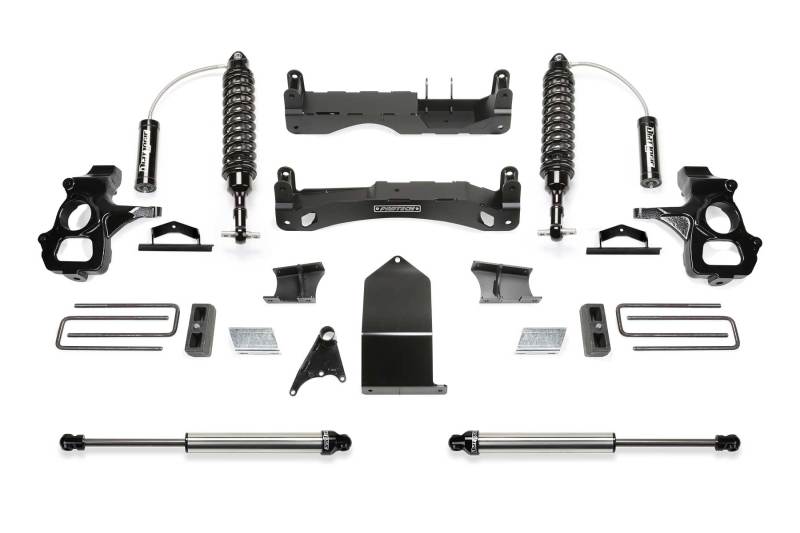

Fabtech's new 4in crossmember systems utilize their proven heavy duty construction and design features found in their 6in systems but with less lift for use with 33in tall tires. These 4in systems feature high arched lower control arm crossmembers constructed of 1/4in thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Performance System features Dirt Logic Stainless Steel 2.5 Resi Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.
Performance Lift System w/Shocks; 4 in. Lift; w/Front Dirt Logic 2.5 Resi Coilovers; Rear Dirt Logic Shocks;
TIRE SIZE - 33/12.50R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 129. FOR USE ON VEHICLES WITH POWER STEERING ONLY.; 166. WILL NOT FIT MODELS WITH FACTORY MAGNERIDE SHOCKS.
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Allows Use Of Stock Tires And Wheels
- Retains Factory Steering Centerlink
- Retains Factory Upper Control Arms
- Increased Caster For More Control
- Quick No Weld Installation
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Clearance Item: t |
| Regular Stock: false |
| Units Per Sku: 1 |
