Arms eliminate upper ball joint w/ super strong 1'' ID Stainless American Uniball - Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments - Allows for increased Wheel travel when used with Dirt Logic 2.5 Coilover Resi shocks - Chromoly tubing reduces flex found in stock arms for more positive road feel - 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature - Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs - Built with same materials as found on Trophy Trucks - .120'' Wall 4130 Chromoly Tubing. 1.50'' OD. - .250'' wall DOM Bushing Barrels - 1'' ID Stainless Steel American Uniball - 17-4 Stainless Misalignments - 17-4 Stainless Steel Heat Treated Tapered Uniball Pins. NOTE- Before ordering visually check your vehicle's factory suspension for aluminum or steel version. This system will only fit factory aluminum suspension vehicles.

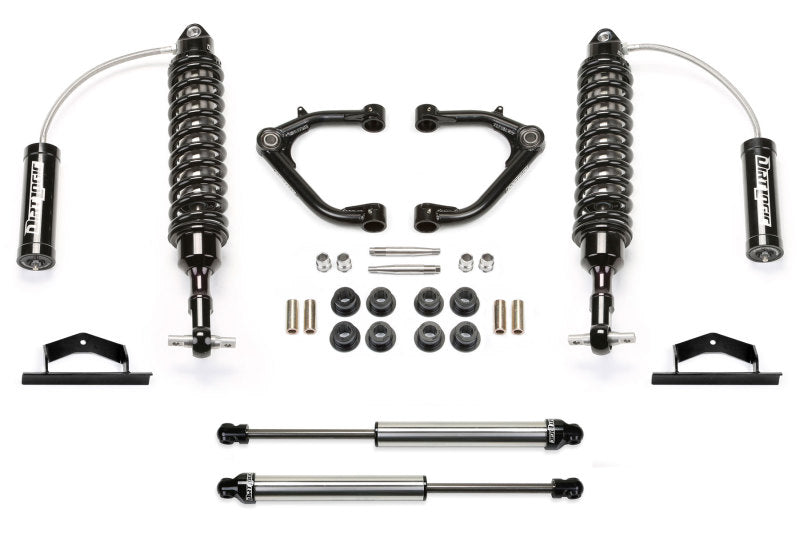

Uniball Control Arm Lift System; 2 in. Lift; Incl. Uniball Upper Control Arms System; Front Dirt Logic SS 2.5 Coilovers; Rear Dirt Logic SS Shocks;
TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 127. FITS MODELS WITH FACTORY FORGED SILVER ALUMINUM UCA OR STAMPED BLACK STEEL UCA.
- Regulates Wheel Motion In Relation To Body
- Custom Engineered For High Quality Ride
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
