Fabtech's 5in Radius Arm Coilover Conversion system allows the installation of the massive Dirt Logic 4.0 Resi Coilovers on the front of Ram 3500's. The system utilizes the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory TracK Bar bracket. The Dirt Logic 4.0 Coilover features a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0's provide a super smooth highway ride with outstanding offroad damping for rough terrain. Includes rear Dirt Logic Shocks. Estimated installation time is 5-6 hrs. Amount of holes to drill for installation - 10. Welding is required.

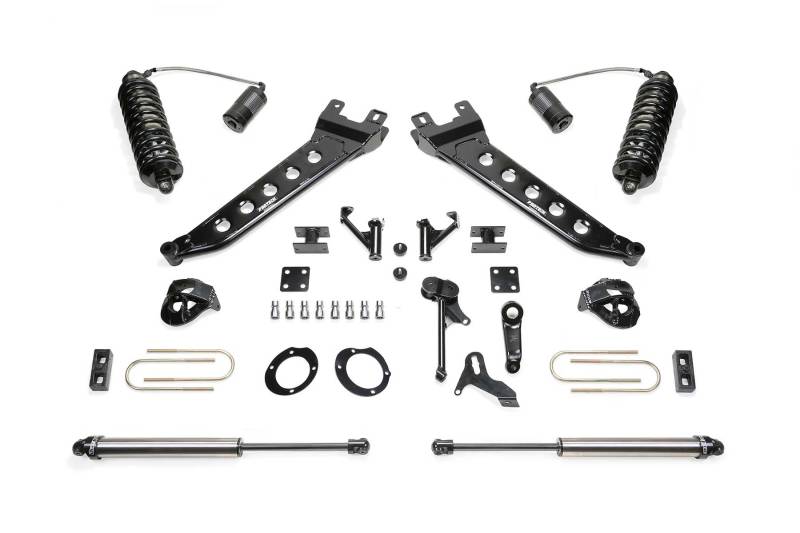

Radius Arm Lift System; 5 in. Lift; w/Dirt Logic 4.0 Resi Coilovers; Dirt Logic Shocks;
TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X9.5 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R22 Wheel - 22X9.5 W/5" BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 130. WILL NOT FIT FACTORY AIR SUSPENSION.
- Adjustable Alignment Cam Allows Caster Adjustment
- Unsurpassed Strength And Performance
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
