Description

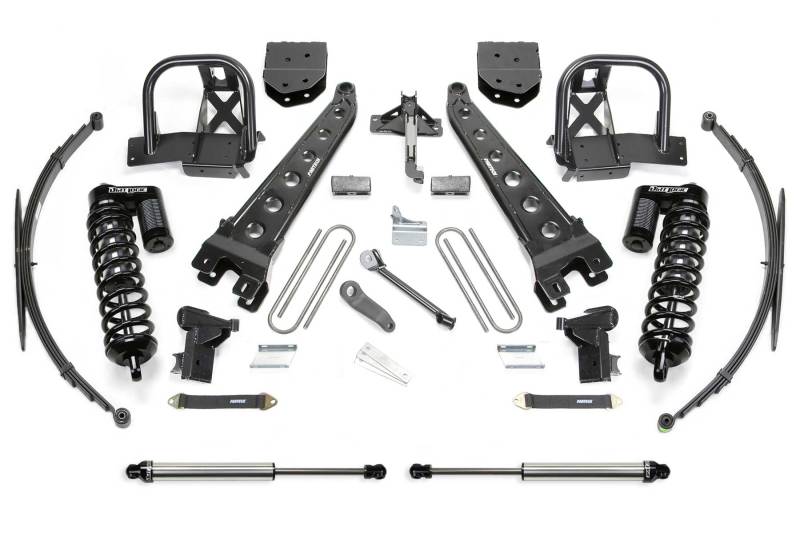

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes the Dirt Logic 4.0 Stainless Steel Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, replacement rear Leaf Springs, and a Block & U-bolt kit. Includes rear 2.25 Dirt Logic Stainless Steel shocks.
10" RAD ARM SYS W/DLSS 4.0 C/O & RR DLSS 08-10 FORD F350 4WD.
TIRE SIZE - 40/12.50R17 Wheel - 17X9 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 40/13.50R20 Wheel - 20X10 W/4 1/2" BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.; 29. REAR SPRINGS MAY REDUCE LOAD CARRYING CAPACITY.
- Adjustable Alignment Cam Allows Caster Adjustment
- Unsurpassed Strength And Performance
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: true |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Clearance Item: t |
| Units Per Sku: 1 |
