Description

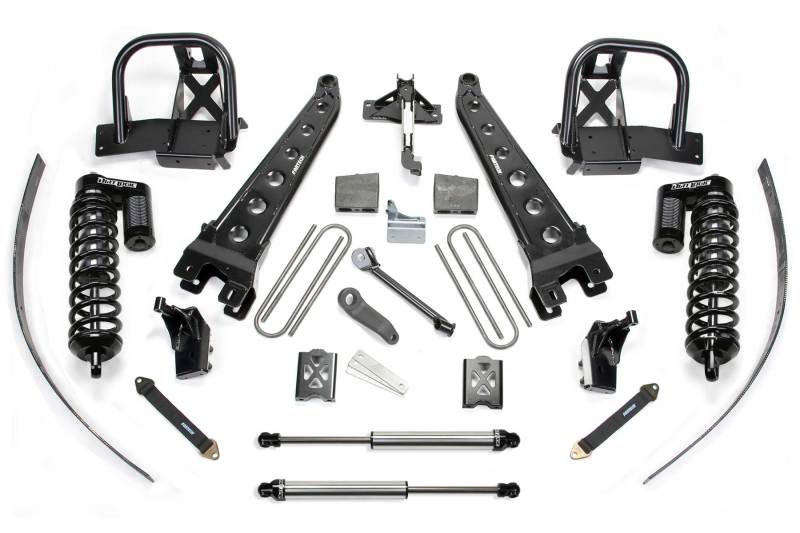

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes the Dirt Logic 4.0 Stainless Steel Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, rear Add-a-leafs, and a Block & U-bolt kit. Includes rear 2.25 Dirt Logic Stainless Steel shocks.
8" RAD ARM SYS W/DLSS 4.0 C/O& RR DLSS 08-10 FORD F250 4WD W/FACTORY OVERLOAD.
TIRE SIZE - 37/13.50R20 Wheel - 20X10 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 355/65R18 Wheel - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.
- Adjustable Alignment Cam Allows Caster Adjustment
- Unsurpassed Strength And Performance
- Patent Pending Radius Arms
- Fully Tubular Structure
- Dimple Die Side Plates
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
