Description

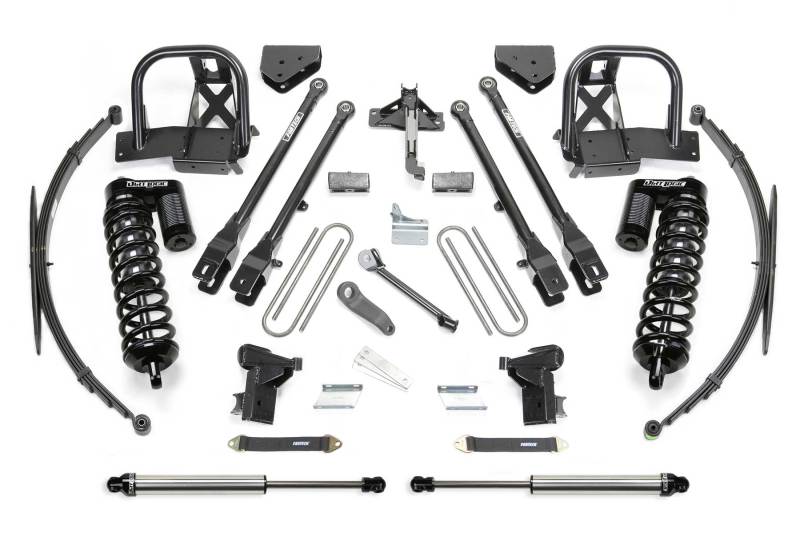

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and Wheel travel. Large 2'' diameter heavy wall links feature race style 1'' Uniballs for superior strength. Thick 1/4'' steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Sway Bar drops, Trac Bar relocation bracket, Pitman Arm, replacement rear Leaf Springs, and a Block & U-bolt kit. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

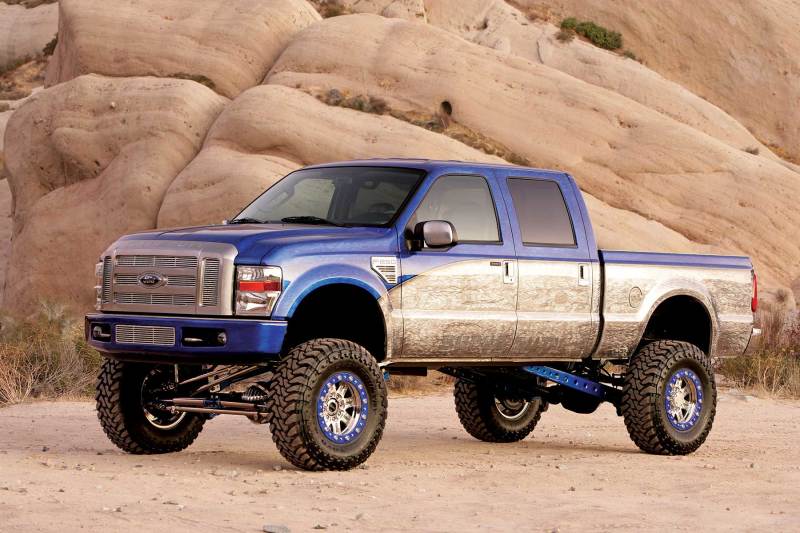

10" 4LINK SYS W/DLSS 4.0 C/O& RR DLSS 08-10 FORD F250 4WD.
TIRE SIZE - 40/12.50R17 Wheel - 17X9 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 40/13.50R20 Wheel - 20X10 W/4 1/2" BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.; 29. REAR SPRINGS MAY REDUCE LOAD CARRYING CAPACITY.
- Provides Unsurpassed Articulation And Wheel Travel
- Everything You Will Need To Lift Your Vehicle
- Race Style Uniball For Superior Strength
- Ultimate In Suspension Performance
- No Cutting Or Welding
- Heavy Wall Links
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: true |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Clearance Item: t |
| Regular Stock: false |
| Units Per Sku: 1 |
