Arms eliminate upper ball joint w/ super strong 1'' ID Stainless American Uniball - Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments - Allows for increased Wheel travel when used with Dirt Logic 2.5 Coilover shocks - Chromoly tubing reduces flex found in stock arms for more positive road feel - 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature - Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs - Built with same materials as found on Trophy Trucks - .120'' Wall 4130 Chromoly Tubing. 1.25'' OD. - .250'' wall DOM Bushing Barrels - 1'' ID Stainless Steel American Uniball - 17-4 Stainless Misalignments - Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

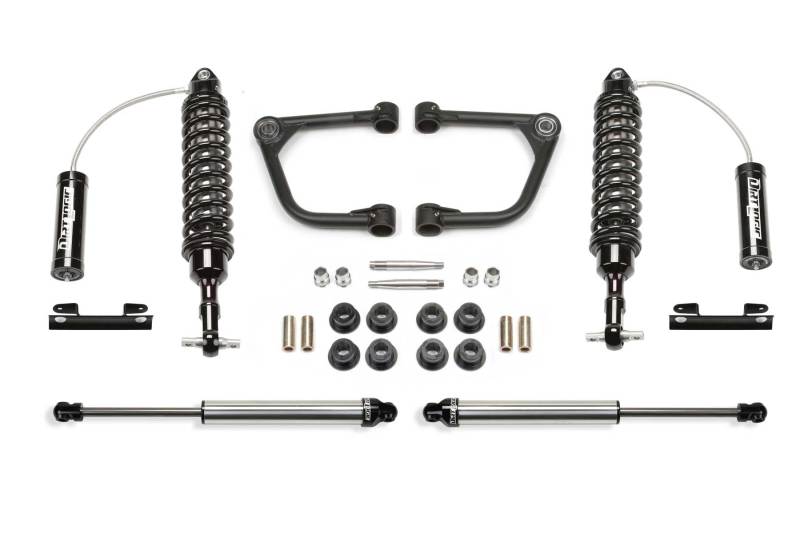

Uniball Control Arm Lift System; 2 in. Lift; Incl. Upper Control Arms w/Ball Joint; Front Dirt Logic SS 2.5 Resi Coilovers; Rear Dirt Logic SS Shocks;
TIRE SIZE - 33/12.50R18 Wheel - 18X9 W/5 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 Wheel - 20X9 W/5 1/2" BS W/MINOR TRIMMING
- Regulates Wheel Motion In Relation To Body
- Custom Engineered For High Quality Ride
- Upper Control Arm Kit
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
