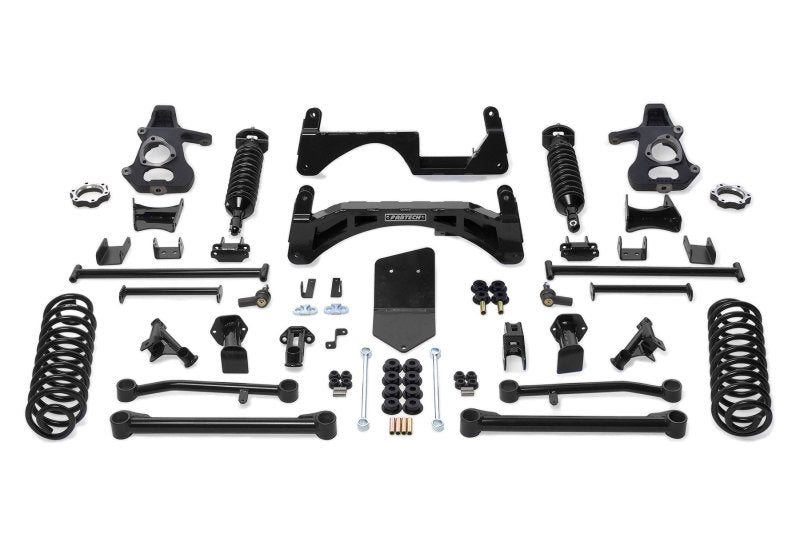

Integrated Lower Control Arm Crossmembers. • Offset Ductile Iron Front Steering knuckles retain stock like turning radius with minimal increase of track width. • No disassembly of factory strut assembly required for installation. • Rack and Pinion is retained in stock position. • Full lift height for proper clearance of 35/1250R17 tires. • Rear system includes upper and lower tubular link arms and trac bar relocation bracket.
Performance Lift System w/Shocks; w/DLSS Shocks; 7 in. Lift; Rear Box; Dirt Logic 2.5 Coilover;
TIRE SIZE - 35/12.50R17 Wheel - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 72. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL, ORDER FTS21064 - 1 IN. COIL SPACER.; 132. WILL NOT FIT 2WD SUBURBAN.
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Allows Use Of Stock Tires And Wheels
- Retains Factory Steering Centerlink
- Retains Factory Upper Control Arms
- Increased Caster For More Control
- Quick No Weld Installation
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
