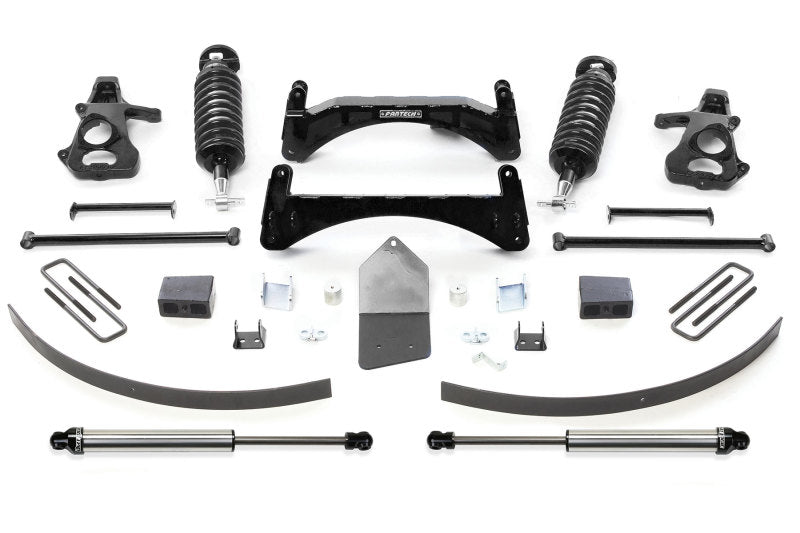

Our 6in Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35in tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4in thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system. Includes front 2.5 Dirt Logic Stainless Steel coil over shocks and rear 2.25 Dirt Logic Stainless Steel shocks. This system has been properly designed to work with the factory Stabilitrak safety functions without reprogramming the vehicle's computer.
Performance Lift System w/Shocks; w/DLSS Shocks; 6 in. Lift; 4.0 Coilovers;
TIRE SIZE - 35/12.50R17 Wheel - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; DOES NOT FIT STANDARD CAB.
- Everything You Will Need To Lift Your Vehicle
- No Driveshaft Change Required For Auto Trac
- Allows Use Of Stock Tires And Wheels
- Retains Factory Steering Centerlink
- Retains Factory Upper Control Arms
- Increased Caster For More Control
- Quick No Weld Installation
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: true |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Clearance Item: t |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
