EdelbrockSKU: ede7828
Price:
$110.27 USD

Description

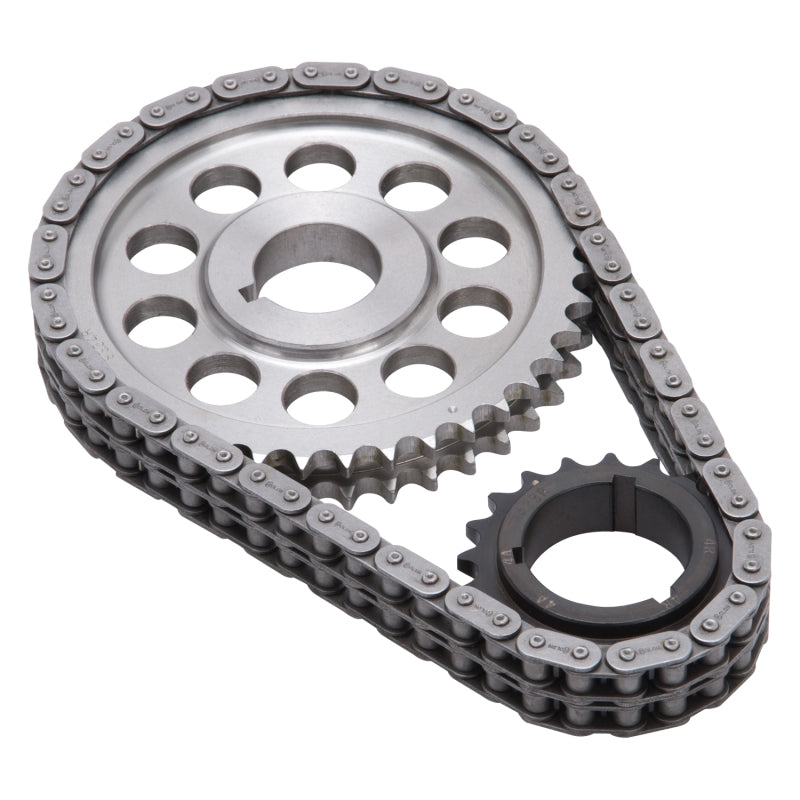

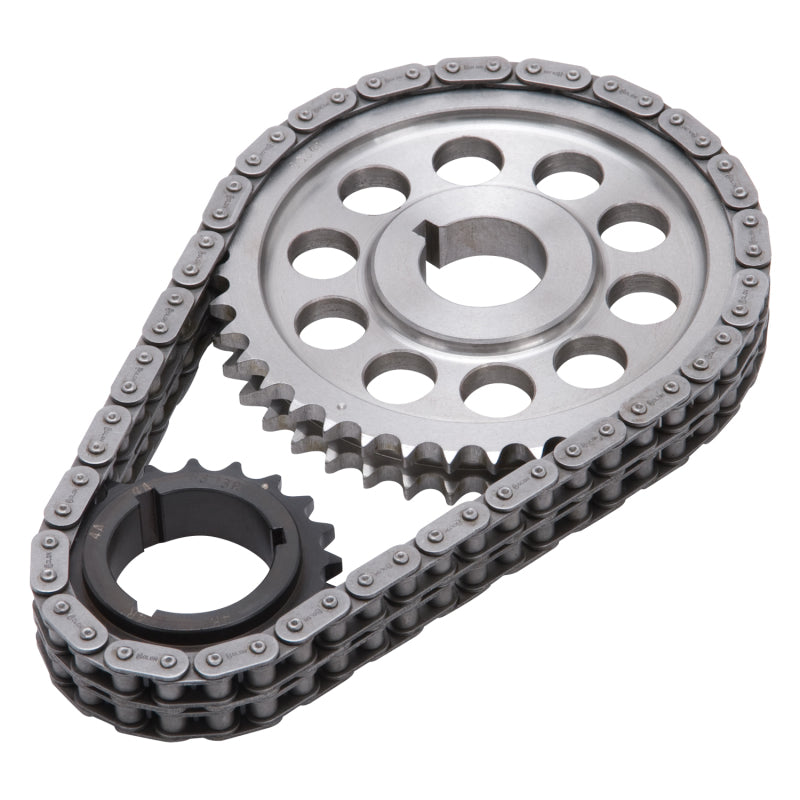

Edelbrock part #7828 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break
Edelbrock part #7828 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch
Buick:V6:198 (3.2L)/225 (3.7L)/231 (3.8L);Buick:V8:215 (3.5L);Oldsmobile:V6:198 (3.2L)/225 (3.7L)/231 (3.8L);Oldsmobile:V8:215 (3.5L);Pontiac:V6:198 (3.2L)/225 (3.7L)/231 (3.8L);Pontiac:V8:215 (3.5L)


  • True Bearing Surface Rolls with the Sprockets

Fitment:
Buick Century Base 1975
Buick Century Base 1976
Buick Century Base 1977
Buick Century Custom 1975
Buick Century Custom 1976
Buick Century Custom 1977
Buick Century Special 1975
Buick Century Special 1976
Buick Century Special 1977
Buick LeSabre Base 1976
Buick LeSabre Base 1977
Buick LeSabre Custom 1977
Buick Regal Base 1975
Buick Regal Base 1976
Buick Regal Base 1977
Buick Regal SR 1976
Buick Regal SR 1977
Buick Skyhawk Base 1975
Buick Skyhawk Base 1976
Buick Skyhawk Base 1977
Buick Skyhawk S 1975
Buick Skyhawk S 1976
Buick Skyhawk S 1977
Buick Skylark Base 1961
Buick Skylark Base 1962
Buick Skylark Base 1963
Buick Skylark Base 1964
Buick Skylark Base 1965
Buick Skylark Base 1966
Buick Skylark Base 1967
Buick Skylark Base 1975
Buick Skylark Base 1976
Buick Skylark Base 1977
Buick Skylark S 1976
Buick Skylark S 1977
Buick Skylark SR 1975
Buick Skylark SR 1976
Buick Skylark SR 1977
Buick Special Base 1961
Buick Special Base 1962
Buick Special Base 1963
Buick Special Base 1964
Buick Special Base 1965
Buick Special Base 1966
Buick Special Base 1967
Buick Special Deluxe 1961
Buick Special Deluxe 1962
Buick Special Deluxe 1963
Buick Special Deluxe 1964
Buick Special Deluxe 1965
Buick Special Deluxe 1966
Buick Special Deluxe 1967
Buick Sportwagon Base 1964
Oldsmobile Cutlass Base 1962
Oldsmobile Cutlass Base 1963
Oldsmobile Cutlass Colonnade 1977
Oldsmobile Cutlass Colonnade S 1977
Oldsmobile Cutlass S 1977
Oldsmobile Cutlass Supreme Base 1977
Oldsmobile Cutlass Supreme Brougham 1977
Oldsmobile Cutlass Supreme Colonnade 1977
Oldsmobile Delta 88 Base 1977
Oldsmobile Delta 88 Royale 1977
Oldsmobile F85 Base 1961
Oldsmobile F85 Base 1962
Oldsmobile F85 Base 1963
Oldsmobile F85 Deluxe 1962
Oldsmobile F85 Deluxe 1963
Oldsmobile Jetfire Base 1962
Oldsmobile Jetfire Base 1963
Oldsmobile Omega Base 1977
Oldsmobile Omega Brougham 1977
Oldsmobile Omega Deluxe 1977
Oldsmobile Omega F85 1977
Oldsmobile Omega SX 1977
Oldsmobile Starfire Base 1975
Oldsmobile Starfire Base 1976
Oldsmobile Starfire Base 1977
Oldsmobile Starfire Firenza 1977
Oldsmobile Starfire GT 1976
Oldsmobile Starfire GT 1977
Oldsmobile Starfire S 1975
Oldsmobile Starfire SX 1976
Oldsmobile Starfire SX 1977
Pontiac Catalina Base 1977
Pontiac Firebird Base 1977
Pontiac Firebird Esprit 1977
Pontiac Grand LeMans Base 1977
Pontiac LeMans Base 1977
Pontiac LeMans Sport 1977
Pontiac Phoenix Base 1977
Pontiac Sunbird Base 1976
Pontiac Sunbird Base 1977
Pontiac Sunbird SJ 1976
Pontiac Ventura Base 1977
Pontiac Ventura SJ 1977
Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
