Description
Ford Coyote and Boss 5.0L engines
Max Lift
Seat Load
Open Load
Rate
Coil Bind
Outer Diameter
Inner Diameter
.550"
93 lbs @ 1.57"
198 lbs @ 1.02"
191lbs/in
.952"
Top .959" / Bottom 1.061"
Top .636" / Bottom .738"

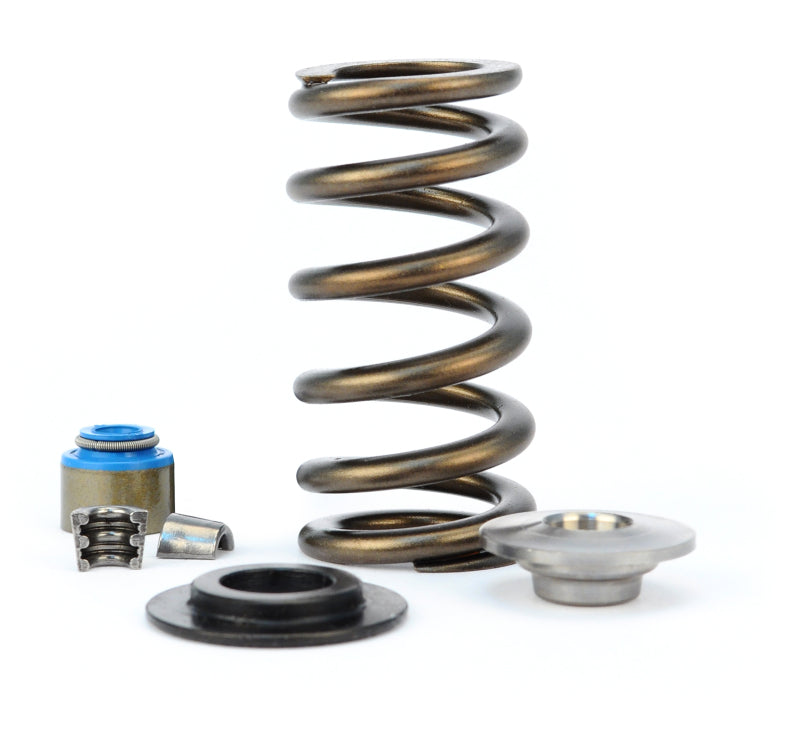

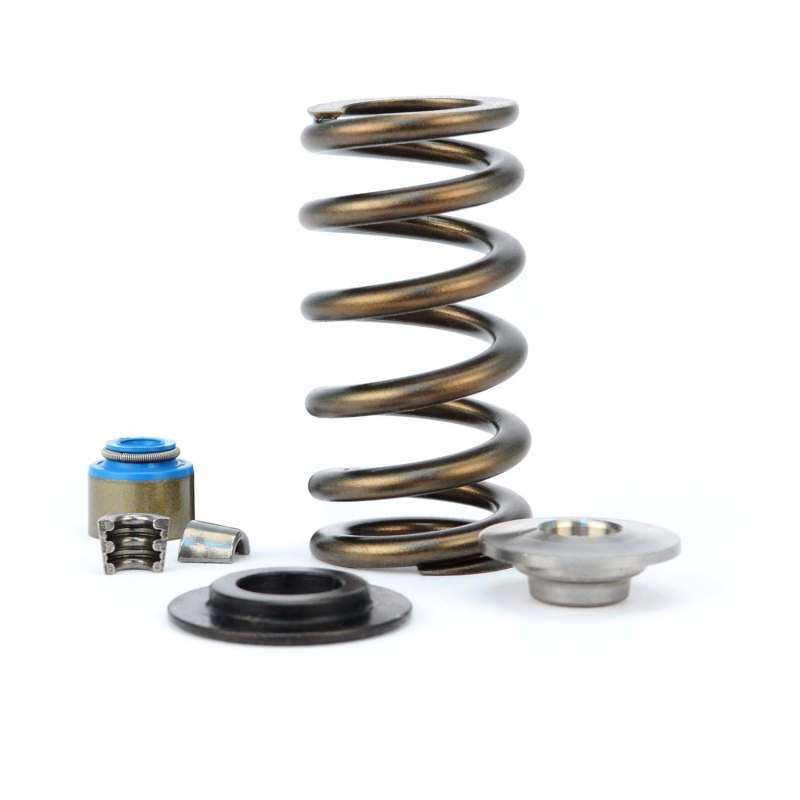

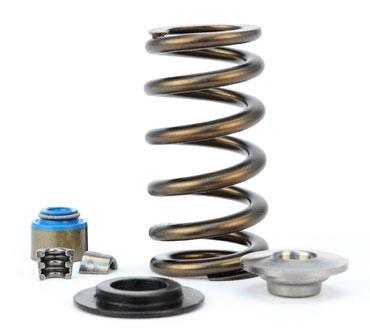

Please note the above image does not show full spring kit.
Designed for '11-'14 and '15+ 5.0L Coyote and Boss engines, this beehive spring kit offers increased valve control at high RPM while allowing for higher valve lift from performance cams. Includes properly matched retainers, seals and seats.
See 26125CTS-KIT for .600" Max lift kit with lightweight tool steel retainers. See 26125CTI-KIT for .600" Max lift kit with lightweight titanium retainers.
Ford: Mustang 11 - 17 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine, Ford: Lobo 11 - 17 5 L Engine, Ford: F-150 11 - 17 5 L Engine
- Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
- higher RPM and more lift capacity than stock.
- Increased valve control at high RPM.
- Create higher load
- .510" Maximum Lift
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
Fitment
