Description
The springs conical design features a smaller diameter in the upper half to reduce active mass. This reduction in mass, along with the progressive frequency created by the conical shape, dampens coil oscillations better than any other spring design. These improvements allow for the use of more aggressive Camshafts and an increase in RPM limit speed. Finally, Superfinish processing of the springs results in increased durability and spring life.

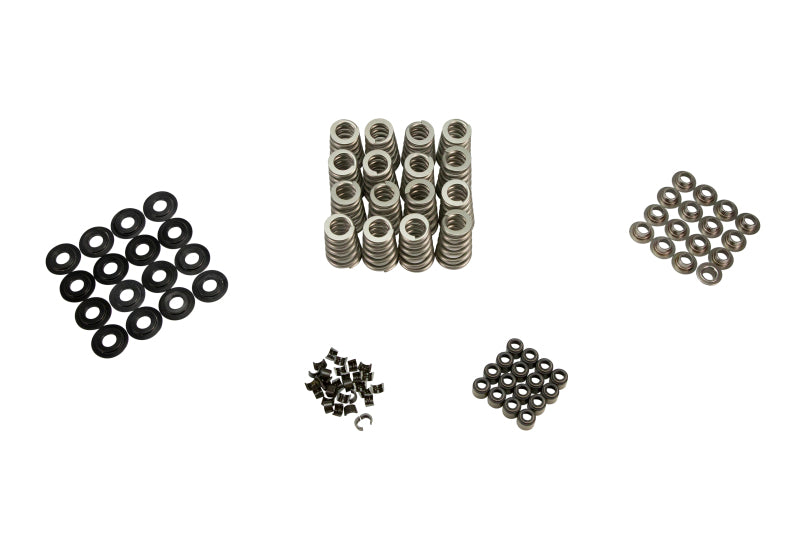

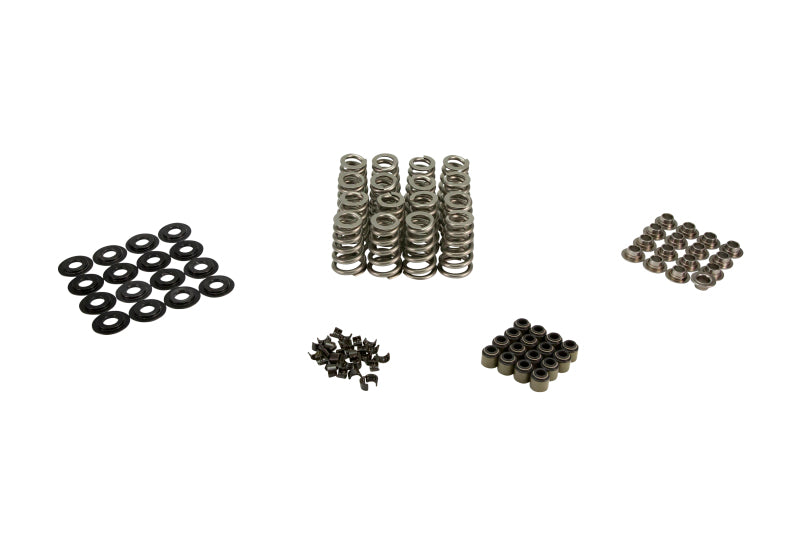

Kit includes:
#7230-16 Conical Valve Springs
#1774-16 +.100 Tool Steel Retainers
#623-16 Valve Locks
#511-16 Valve Seals
#4680-16 Spring Seats
The .675" Lift Conical Spring Kit with Tool Steel Retainers for GM LS1/LS3 allows users to easily install revolutionary Conical Valve Springs on any high performance GM LS1/LS3 engine.
LS1, LS2, LS3, LS6, 4.8, 5.3, 5.7, 6.0 and 6.2 engines
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
Fitment
