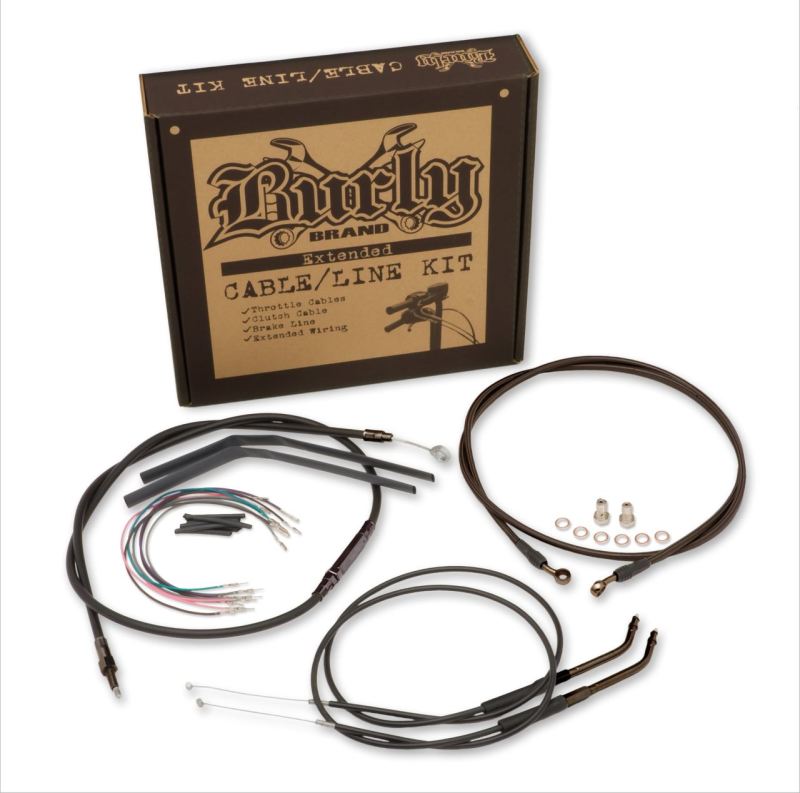

Complete cable/line installation kit for Burly Ape hangers. Kit includes extended brake line, extended clutch cable/clutch line, extended throttle/idle cables as required and all necessary wiring extensions. Brake lines feature PTFE inner liner and heavy-duty stainless steel outer braid. Dresser kits reuse stock Throttle-By-Wire harness. Made in the U.S.A. Included Items: (1) 32" black brake line with (1) 7/16" 20 degree banjo and (1) AN #3 male straight fitting, (1) 7/16" banjo bolt, (1) 3/8"/10mm banjo bolt, (2) 3/8"/10mm crush washers, (2) 7/16" crush washers, (1) 20 3/4" black brake line with (1) 3/8"/10mm 90 degree banjo and (1) AN #3 male straight fitting, (1) 75 1/4" black clutch line with 3" travel, (1) Black idle cable, (1) Black Throttle Cable, (1) Junction block with drilled mounting hole and (2) AN #3 female fittings and (2) AN #3 male fittings, (2) Brass barrels, (1) Plastic barrel, (1) Four pin connector with (4) 14 1/2"wires, (1) Four pin connector, (1) two pin connector with (1) 16 1/2" wire and (4) 14 1/2" wires, (1) 12" shrink tube, (2) 11" shrink tubes, (6) 11 1/2" wires with male and female connector, (6) 2 1/2" shrink tubes, Instructions.
- Kits are based on using 2" risers with Ape hanger-style handlebars
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: powersports |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
