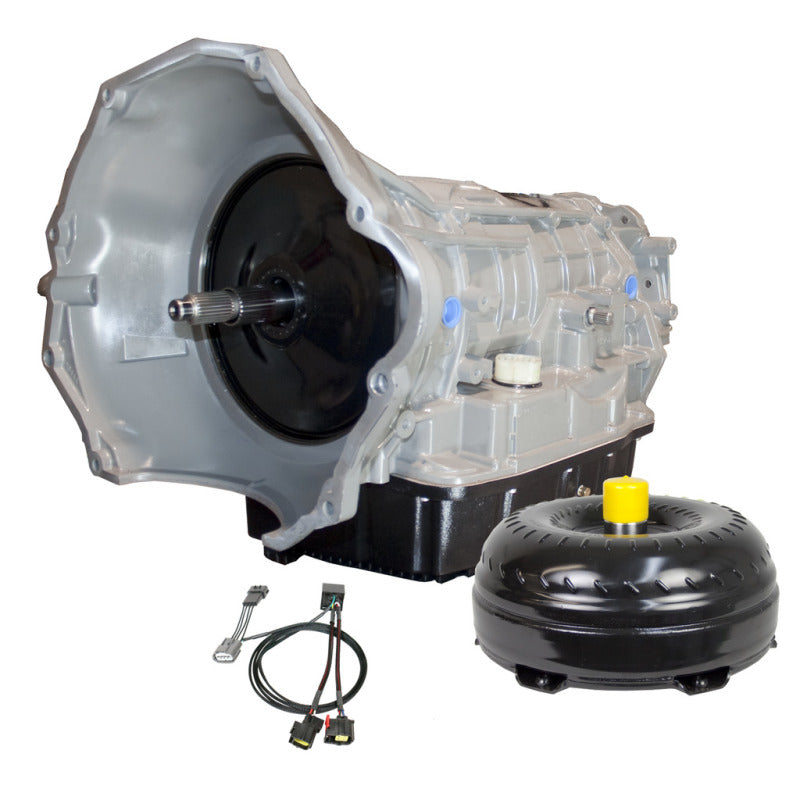

BD Diesel Transmission 2007.5-2018 Dodge 68RFE 4WD w/ Torq Force Converter Package

When you purchase a BD Transmission and Torque Converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity and case strength. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

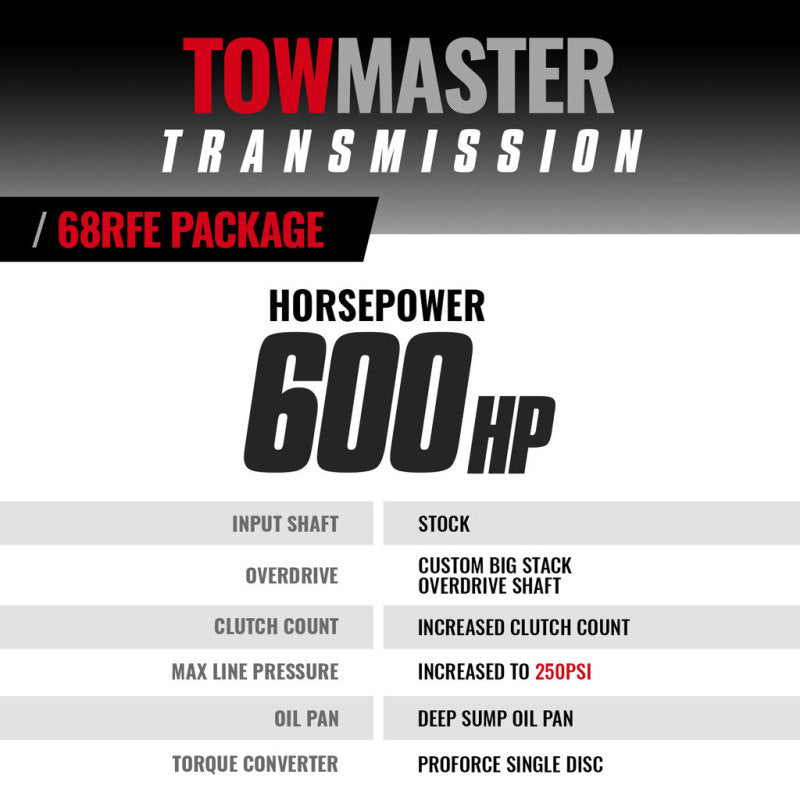

Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;

• BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required


• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum


• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks


• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex


• Steel girdle added to 2C piston to allow for more clutches and broader apply area


• TCC limit valve machined and sleeved to address high wear area with in pump


• Billet forged front cover with thicker walls and stronger mounting pads


• Hard anodized valve body and new solenoid pack installed in every unit


• Furnaced brazed turbine fins for improved fluid coupling efficiency


• Over Drive clutches 33% increase & 2C clutches 33% increase


• Heavy duty cam & roller design low reverse one way clutch


• Ideal replacement for stock torque converter


• Lower rpm response than the stock converter


• Great for street and towing applications


• High performance Enhanced stall stator


• Upgraded Governor Pressure Transducer

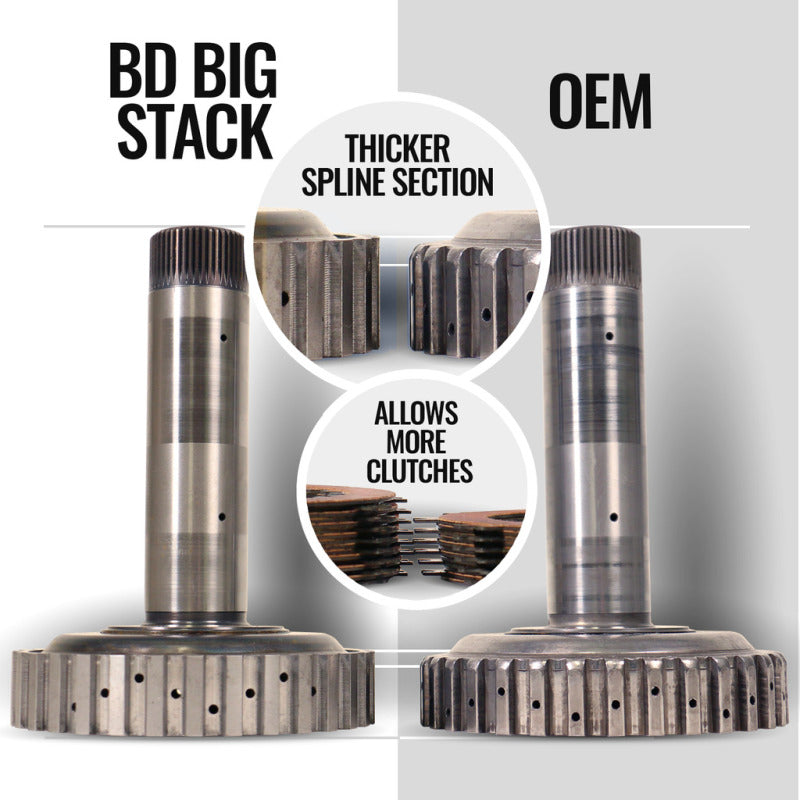

• Custom Big Stack overdrive shaft


• Torque Convertor Enhanced Stall


• BD reinforced accumulator plate


• New 4C billet spring retainer


• No Shuttle Shifting Problems


• Stamped Forged 1 Piece Cover


• Upgraded Governor Solenoid


• More Efficient Operation


• Good for 550 flywheel HP


• Damper springs replaced


• 11.625 inch dual-clutch


• No Race Abuse Covered


• Upgraded Valve body


• Furnace Brazed Fins


• PROFORCE CONVERTER:


• Aluminum HD Pan


• TRANSMISSION:
