BD Diesel Transmission - 2007.5-2018 Dodge 68RFE 4WD C/W Billet Input Shaft

Hard anodized valve body and new solenoid pack installed in every unit; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; Heavy duty cam & roller design low reverse one way clutch; New 4C billet spring retainer; Steel girdle added to 2C piston to allow for more clutches and broader apply area; BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum; Clutch count increased to hold high torque level - Over Drive 17% increase, Under Drive 20%, 2C 33% increase; BD reinforced accumulator plate; TCC limit valve machined and sleeved to address high wear area with in pump; BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex; BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

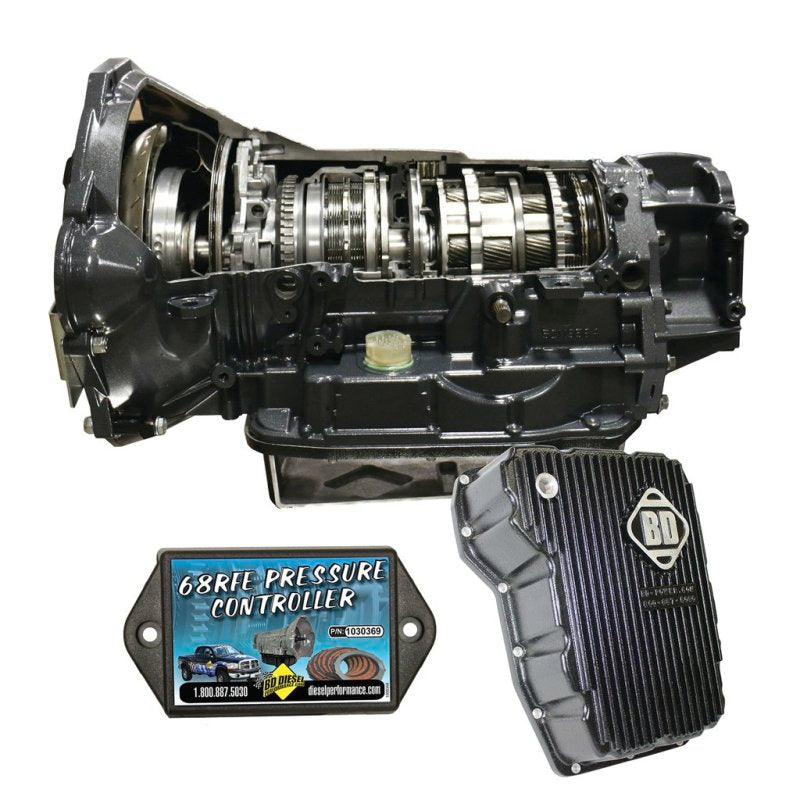

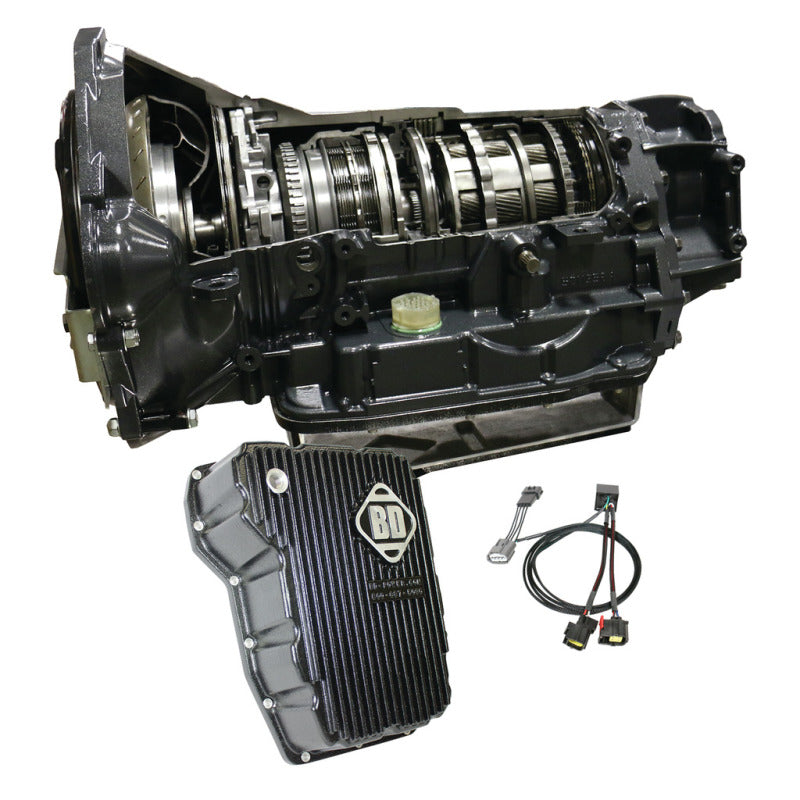

BD TorqueMaster Dodge 68RFE Transmission - 2007.5-2018 4wd c/w Billet Input Shaft

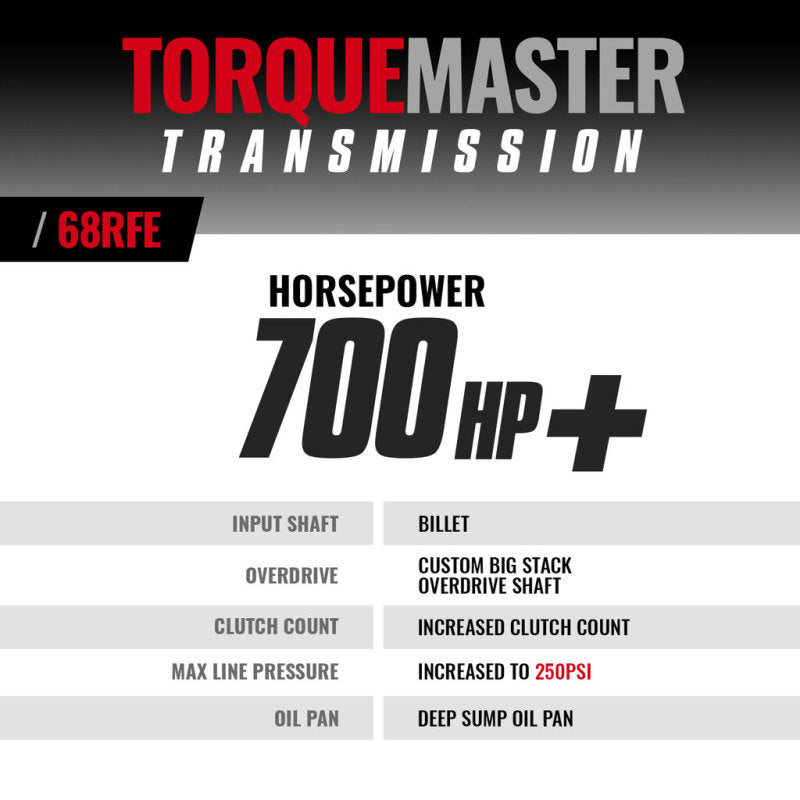

• Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower


• BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required


• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum


• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks


• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex


• Steel girdle added to 2C piston to allow for more clutches and broader apply area


• TCC limit valve machined and sleeved to address high wear area with in pump


• Hard anodized valve body and new solenoid pack installed in every unit


• Over Drive clutches 33% increase & 2C clutches 33% increase


• Heavy duty cam & roller design low reverse one way clutch


• Valve Body Separator Plate Stops Internal Cross Leaks


• QT100 Pressure Plates For Increased Clutch Counts


• 36 Month/150000 Mile Limited Warranty

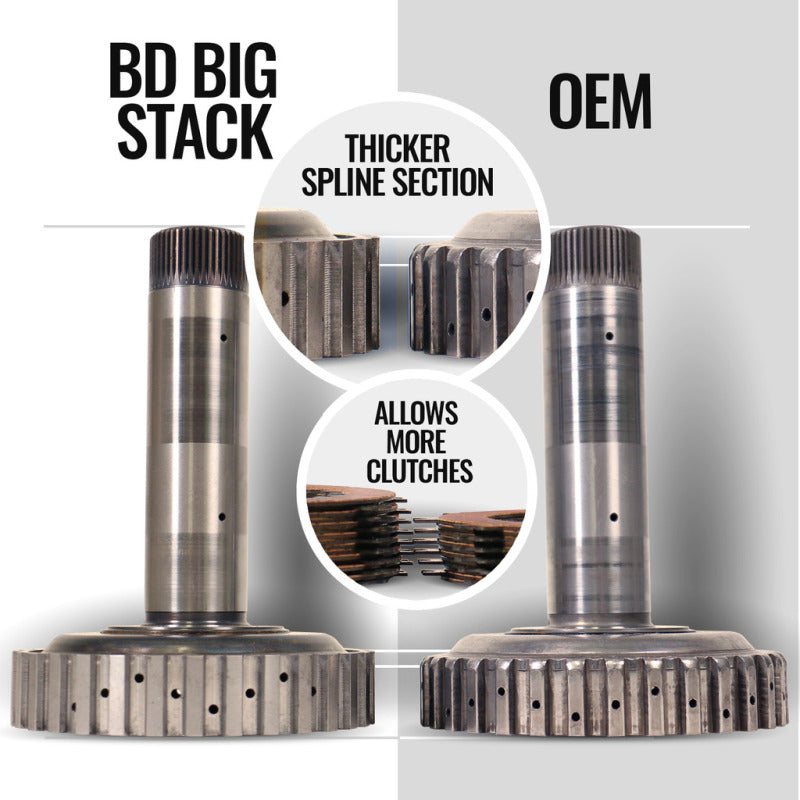

• Custom Big Stack overdrive shaft


• BD reinforced accumulator plate


• New 4C billet spring retainer


• Has Stronger Internals


• No Race Abuse Covered
