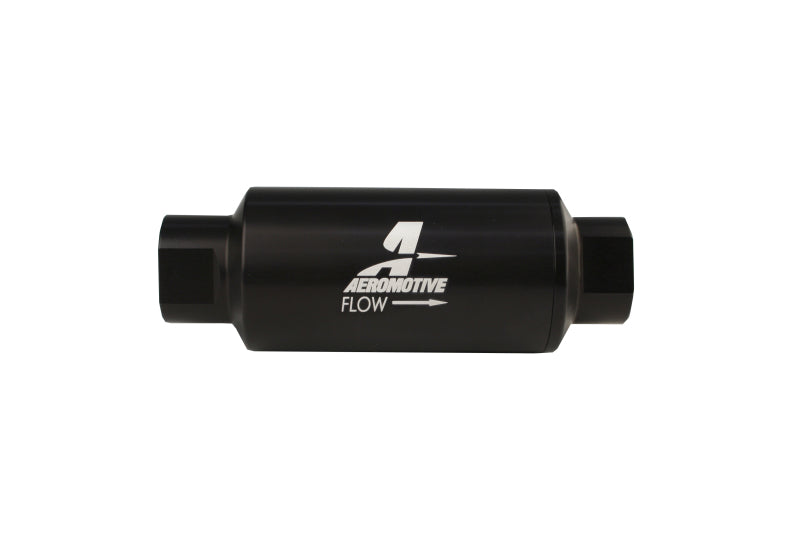

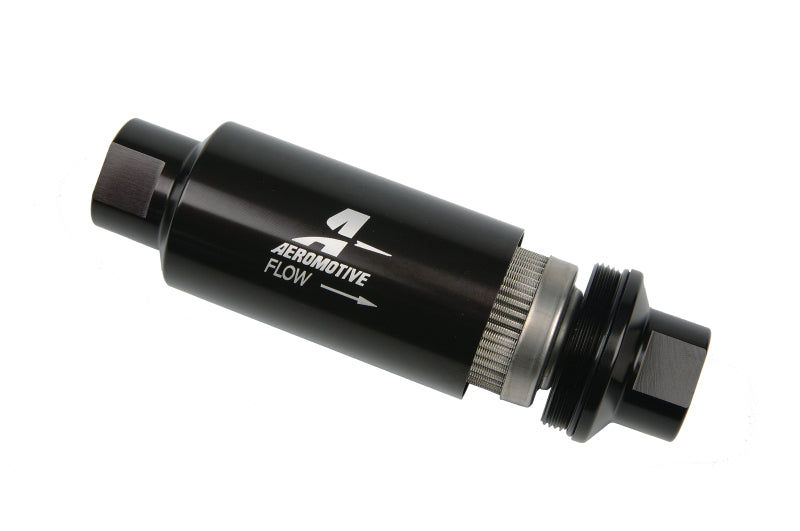

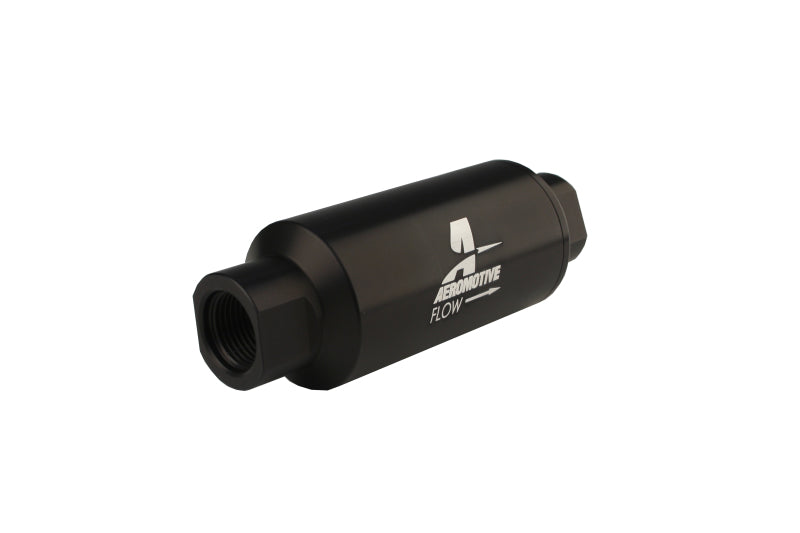

Aeromotive Marine 100-Micron AN-10 Fuel Filter

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than 0.5 PSI. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08, and -06 line sizes. Compact size: 5.5? long x 2? diameter.
Filter, In-Line, 100-m Stainless Mesh Element, ORB-10 Port, Black Hard-Coat, Marine, 2" OD.
In-line, high-flow fuel filter; marine line filter; compact size: 5.5" long x 2" diameter
