Description
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.

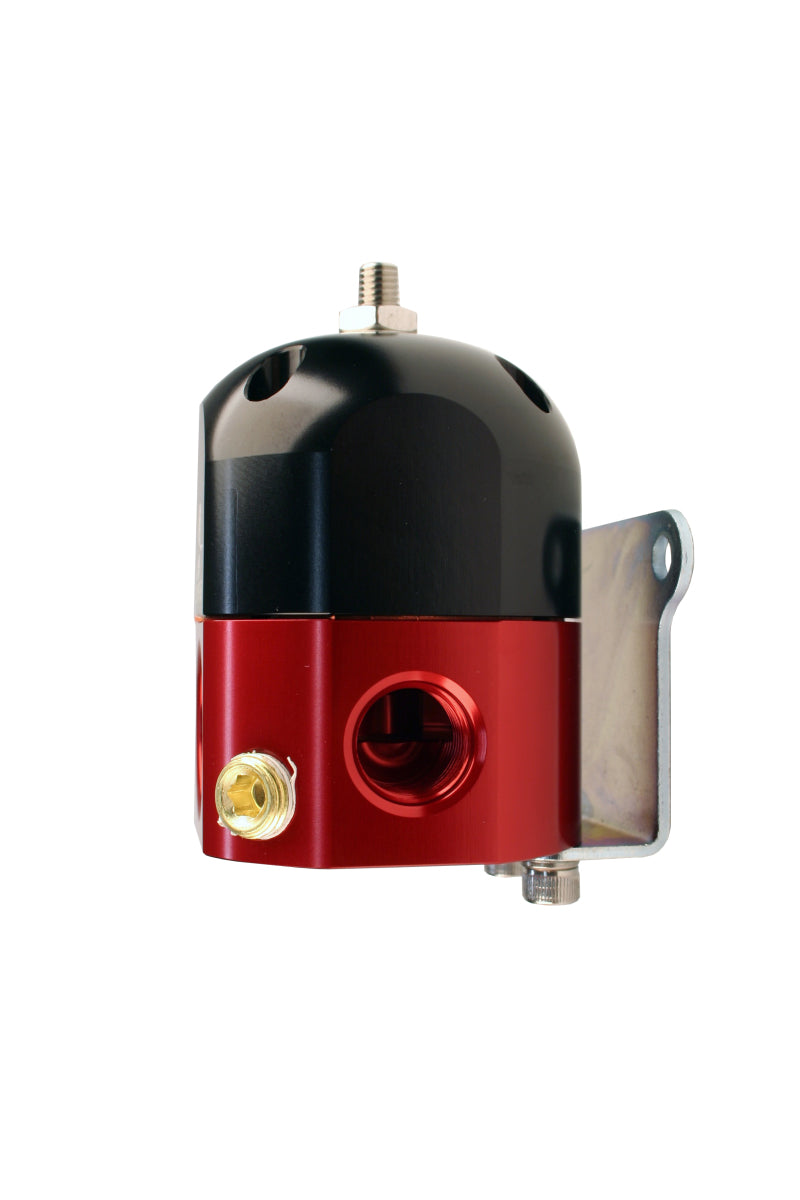

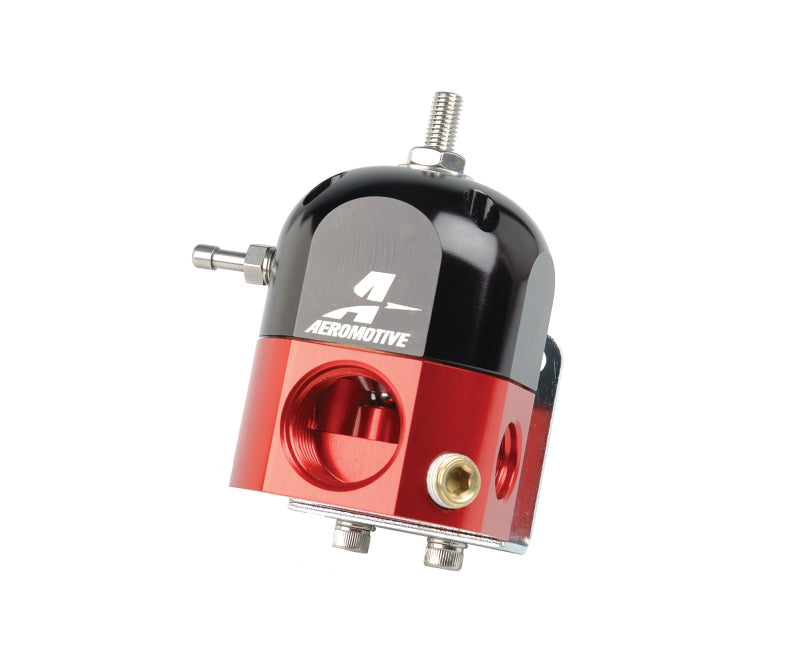

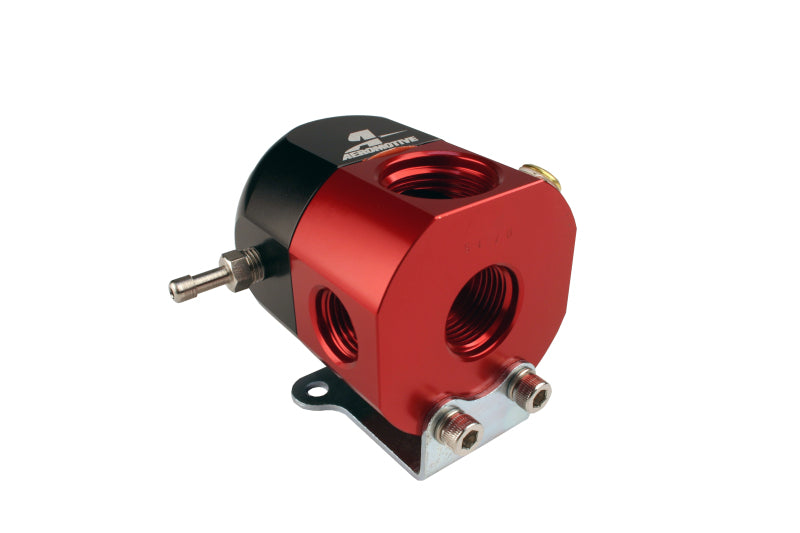

A1000 Carbureted Bypass Regulator - 2-Port.
A1000 carbureted bypass regulator; adjustable from 3-15 PSI; perfect for naturally aspirated engines; bypass desing provides the ultimate, dynamic fuel delivery system.
| Air Freight Prohibited: false |
| Not Carb Approved: true |
| Carb Acknowledgement Required: true |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: t |
| Units Per Sku: 1 |
