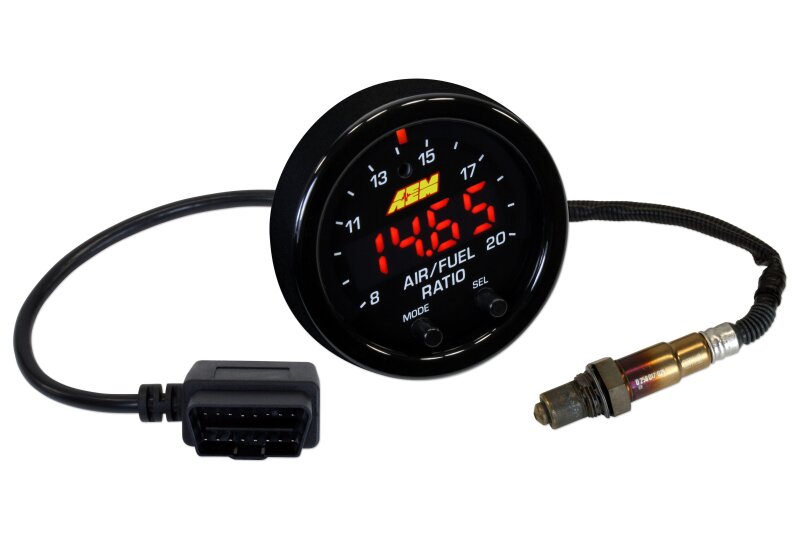

AEM X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge

Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.OBDII CAN-bus OUTPUTThe OBDII output simulates an auxiliary ECU signal when plugged into a vehicle's OBD port, which requires a unique address from the other ECUs already on a vehicle's network.

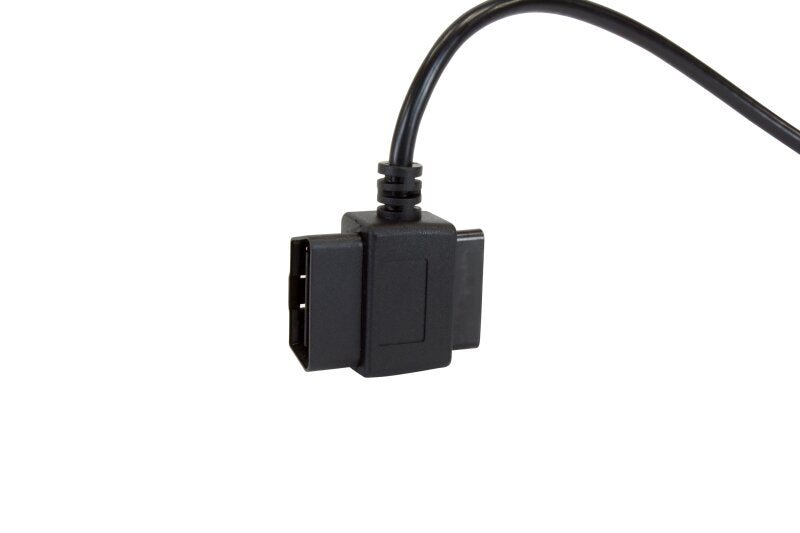

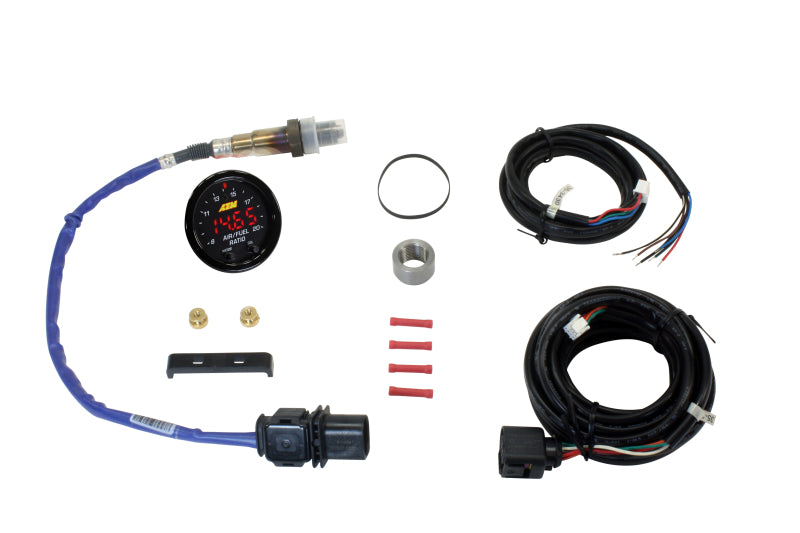

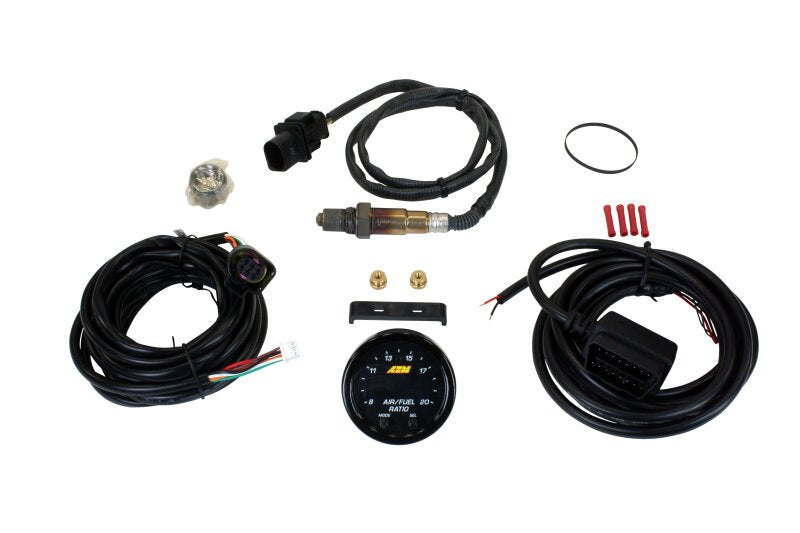

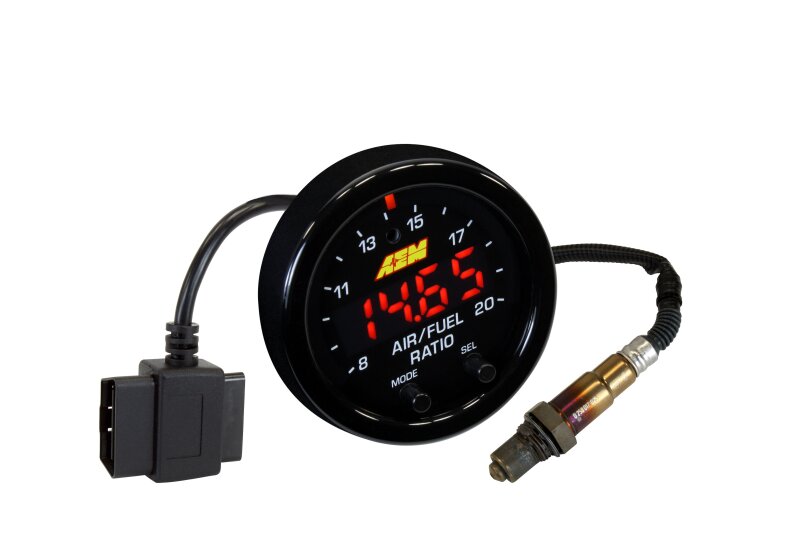

X-Series Wideband UEGO AFR Sensor Controller Gauge with OBDII Connectivity. Includes: X-Series Wideband Controller Gauge, Bosch LSU 4.9 Sensor, Wiring Harnesses, Black Bezel, Black AFR/Lambda Faceplate, OBD2 Cable & O2 Sensor Bung
Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.

• X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers


• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders


• Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires


• Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)

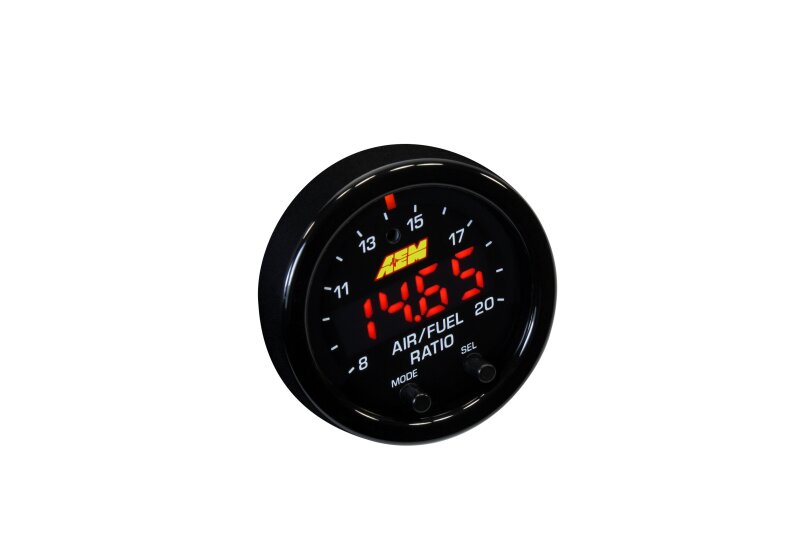

• User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display


• OBD-II Output; CAN based compatible with 2008 or newer vehicles


• Patented X-Digital wideband technology (Patent 9,575,030)


• Compatible with vehicle/system voltages up to 16V

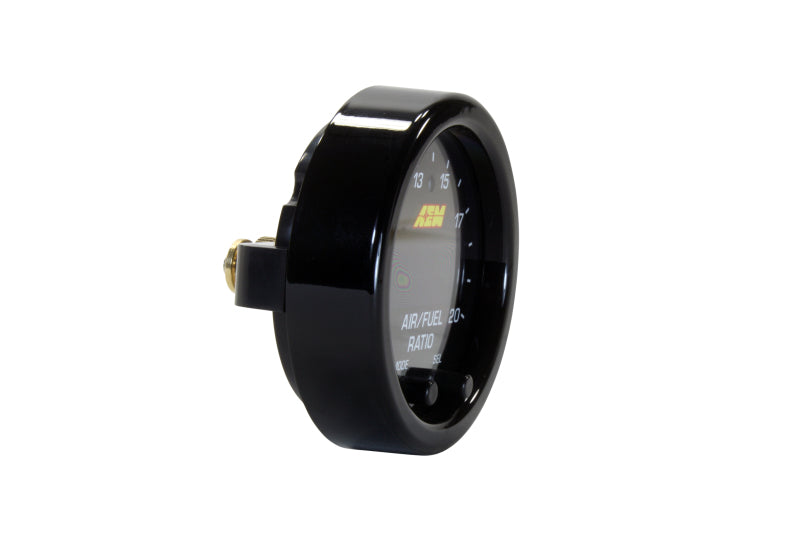

• 52mm gauge diameter and slim 0.825" gauge depth

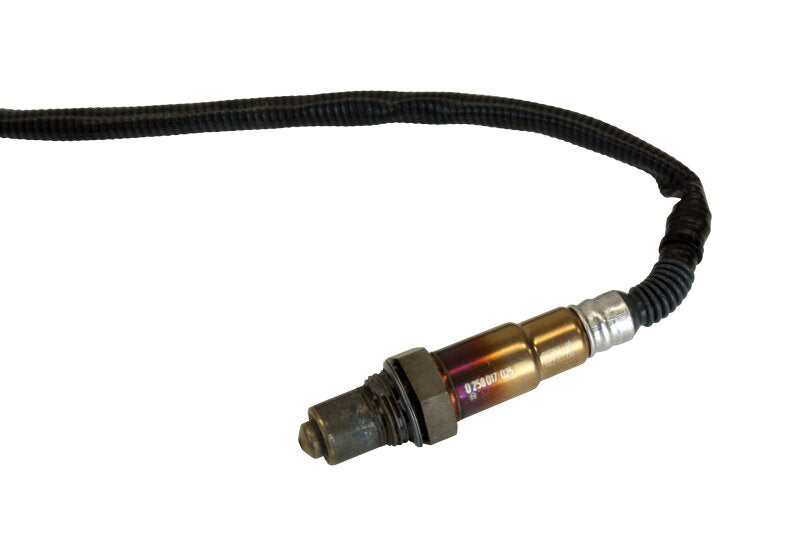

• Includes Bosch 4.9LSU wideband UEGO sensor


• Can display AFR values in hundredths of %


• Gauge cup depth only .200" deep


• Auto dimming feature

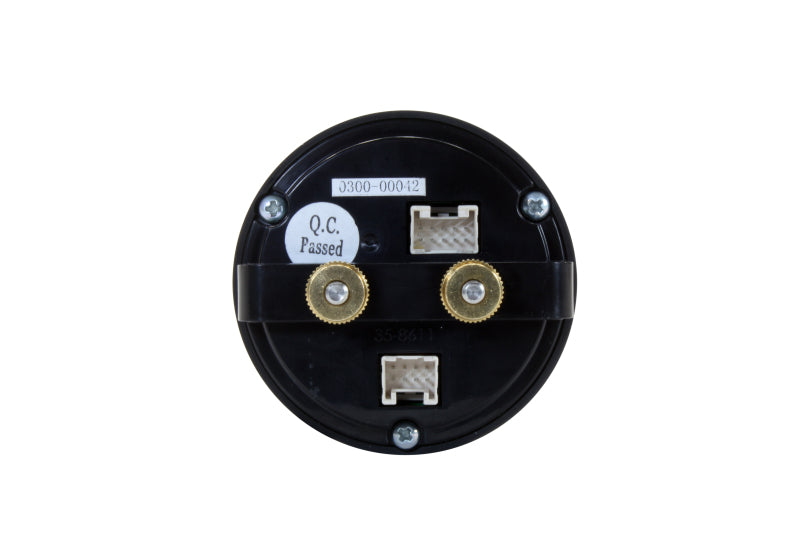

• Locking connectors
