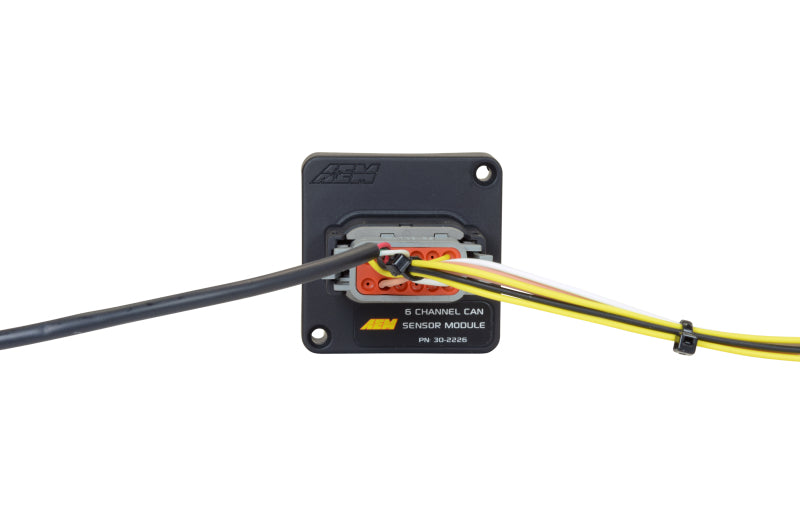

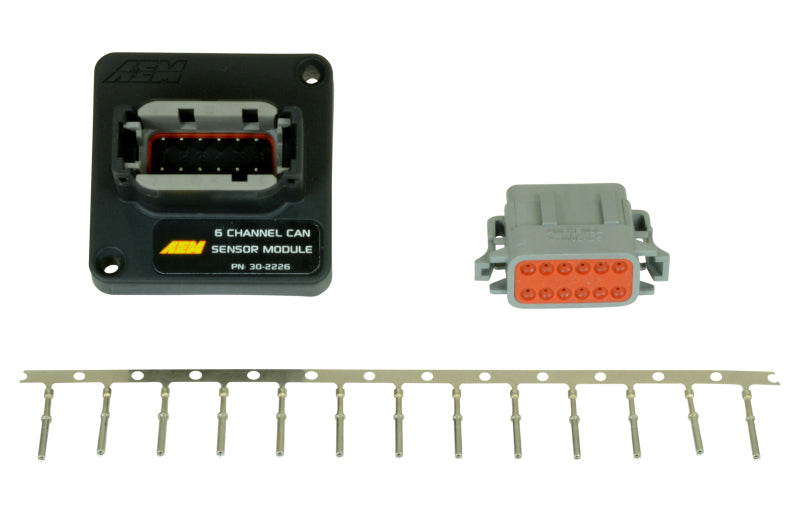

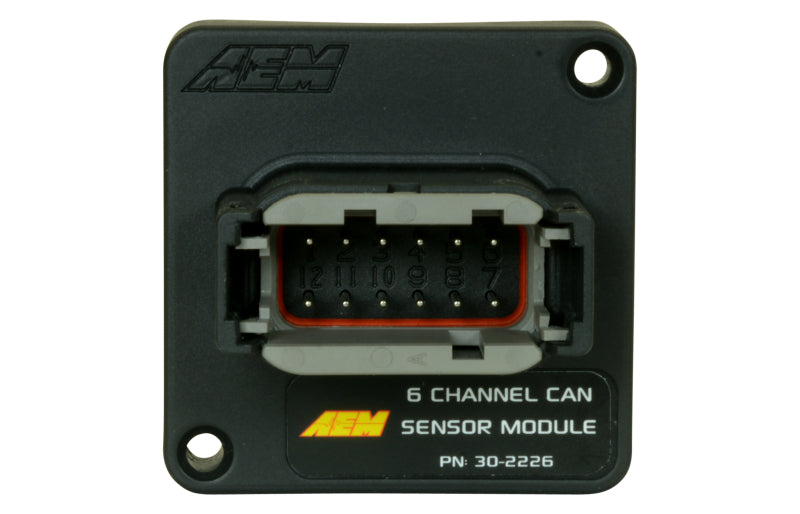

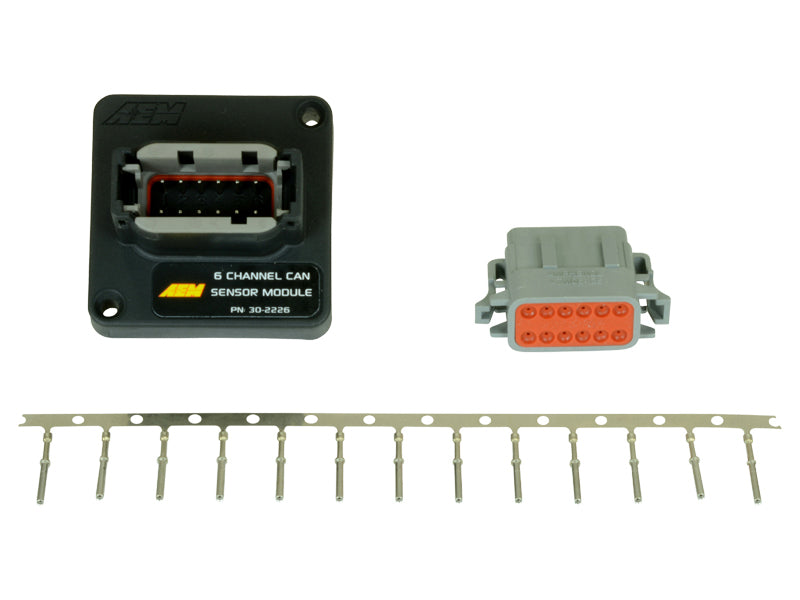

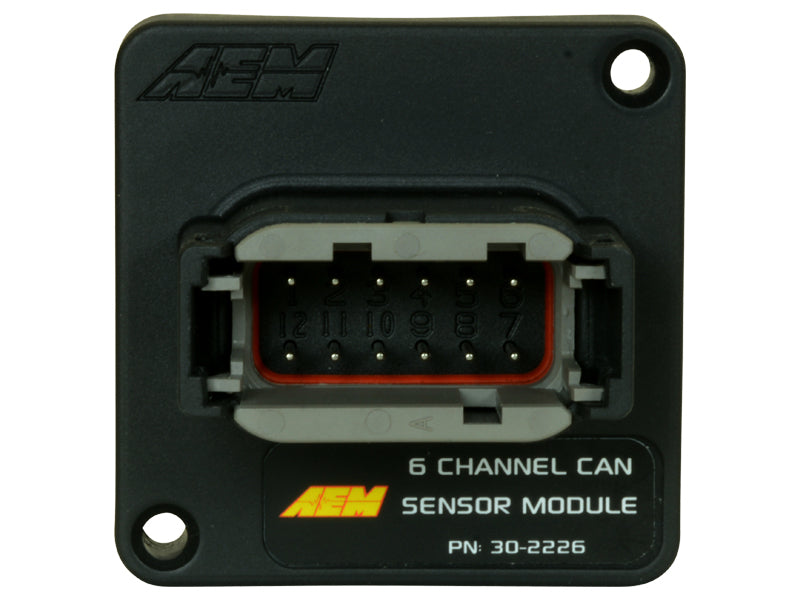

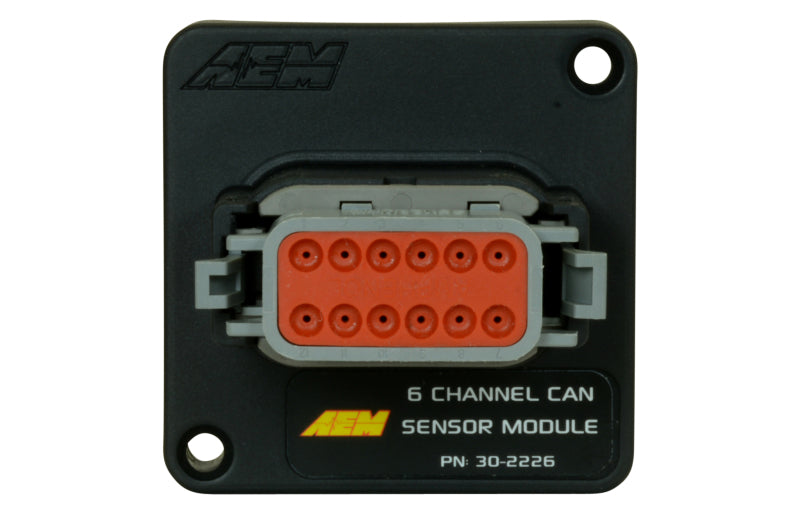

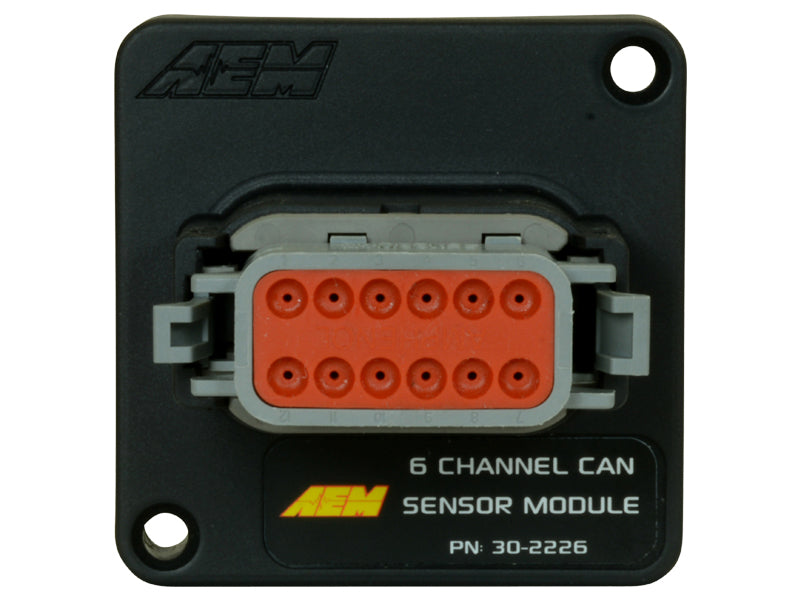

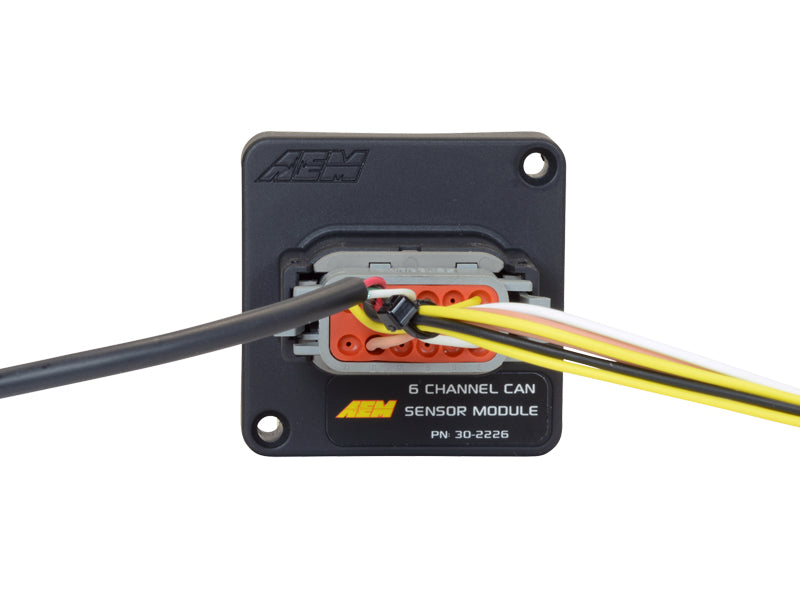

AEM 6 Channel CAN Sensor Module

AEM's 6 Channel CAN Sensor Module (PN 30-2226) provides an affordable and easy way to add temperature, pressure, fuel level, and tachometer signals on to a CD Carbon Digital dash through AEMnet CAN bus! It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, which also allows you to add additional channels to a non-AEM ECU, dash or logger.

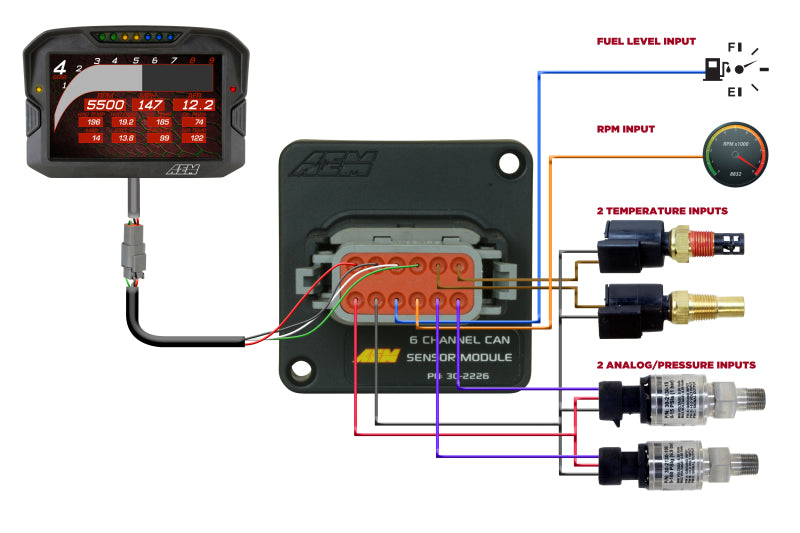

The 6 Channel CAN Sensor Module converts two analog temp channels, two analog pressure channels, a tach input and fuel level input to AEMnet CAN messages
Fixed CAN bus speed, header length, and base address IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray Protected inputs

• IP67 Potted Enclosure / Sealed Connector - "dust tight" and protected against water spray


• One (1) dedicated fuel level input (0 to 250 Ohm range)


• Fixed CAN bus speed, header length, and base address


• Two (2) dedicated 0-5V analog inputs


• One (1) tachometer/coil input


• Protected inputs
