Description

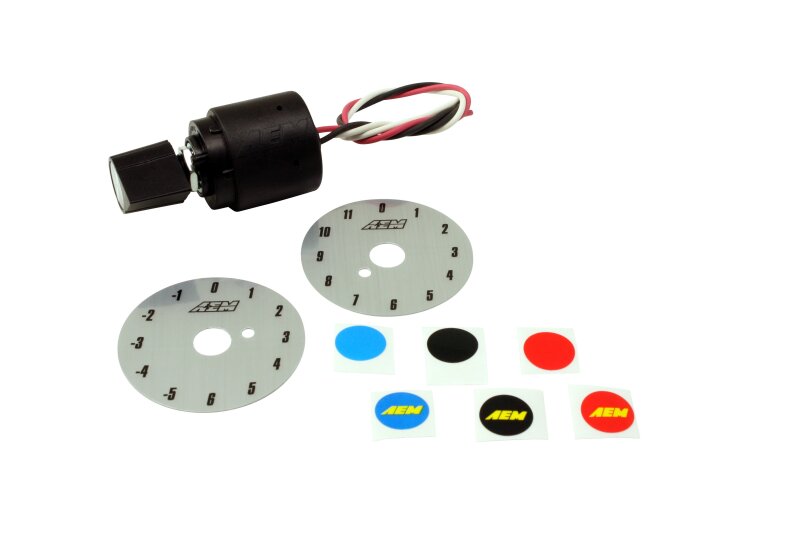

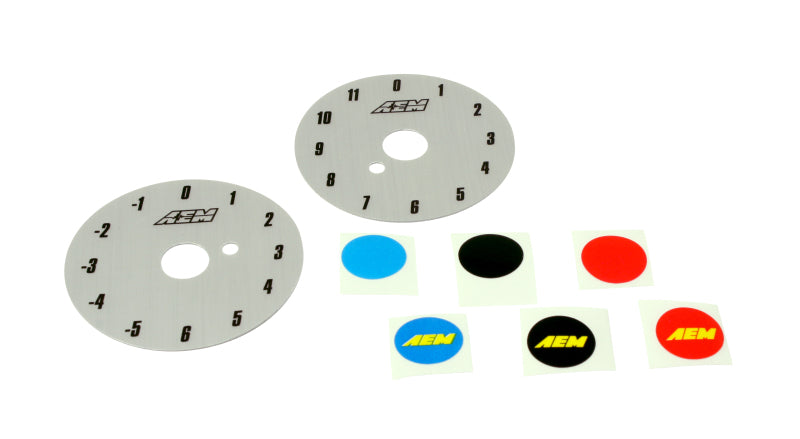

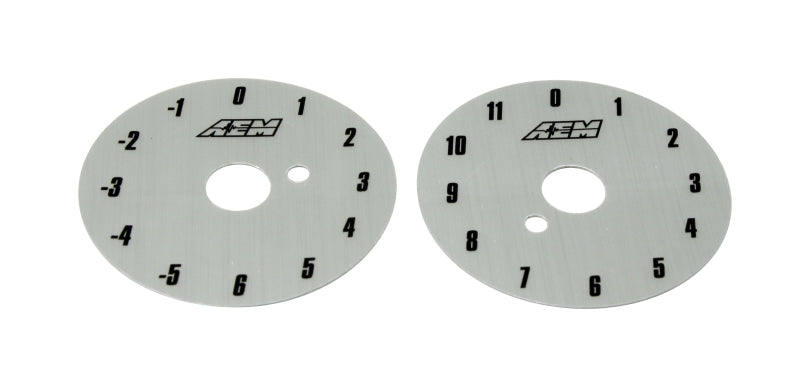

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors
Universal 12 Position Trim Pot, Includes Trim Pot and Decals.

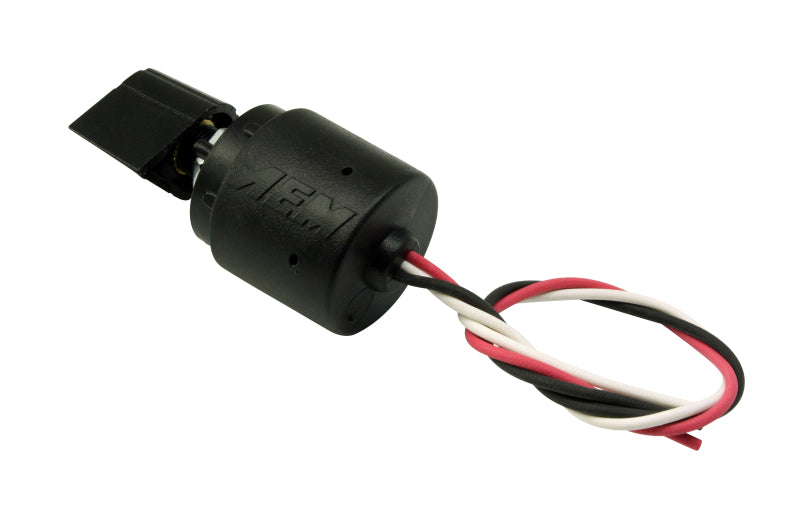

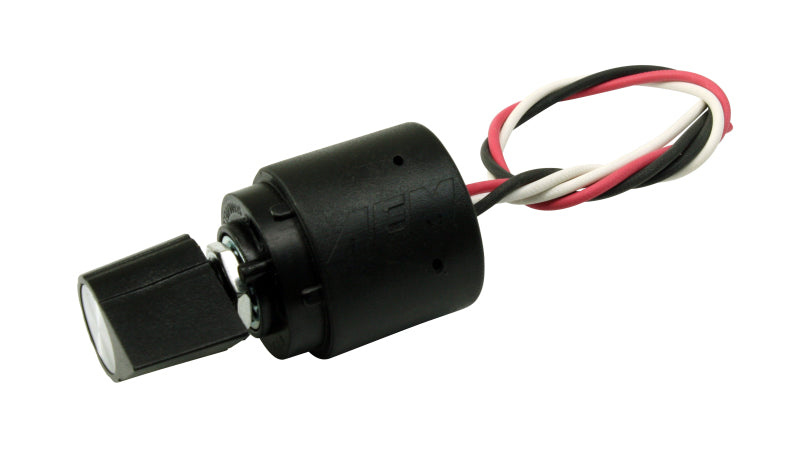

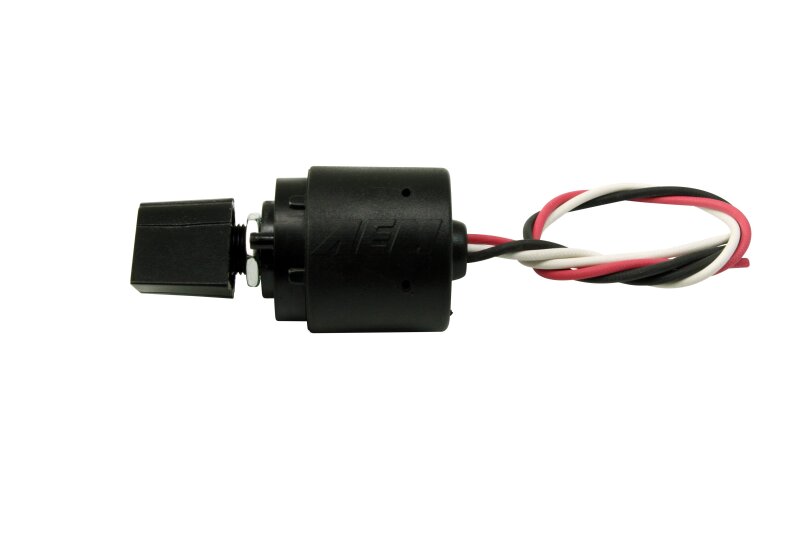

- Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
- 12 Position Trim Pot Performance Specifications
- Knob Set Screw: 1/16" Allen
- Total Resistance: 14.3KO
- Cycles Minimum: 10,000
- Supply Current: 5 Vdc
- Degree Rotation: 330
- Mounting: 3/8" Hole
- Jam Nut: 1/2" Hex
- Positions: 12
| Air Freight Prohibited: false |
| Not Carb Approved: true |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: t |
| Units Per Sku: 1 |
