Description

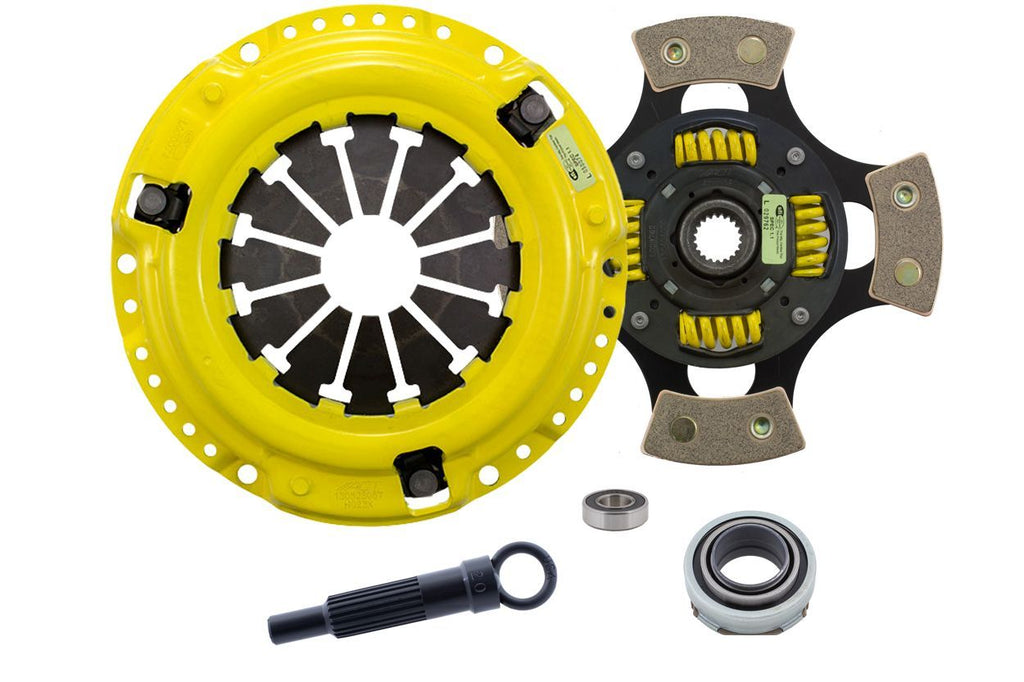

ACT Extreme Race Sprung 4 Pad Clutch Kit
HW4-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
"Excellence in Performance", backed by the best one-year warranty in the industry!
| Part Fitment Requirement: Must be used with 90-01 SOHC flywheel. |
| Product Weight (Lbs.): 10.6 |
| Prop 65 Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No: Yes |
| Title: ACT XT/Race Sprung 4 Pad Kit |
| Torque Capacity (Ft/Lbs.): 380 |
| Torque Capacity Over Oe: 148% |
| Pilot Bushing Included: No |
| Pressure Plate Type: Xtreme |
| Release Bearing Included: Yes |
| Clutch Disc Diameter: 212 mm |
| Disc Material: Ceramic |
| Input Spline Quantity: 20 |
| Input Shaft Diameter: 0.875 in |
| Alignment Tool Included: Yes |
| Disc Type Sprung Solid: Sprung |
| Pressure Plate Bolts Included: No |
| Grease Included: Yes |
| Grade Type: Performance |
| Clutch Slave Cylinder Included: No |
| Flywheel Bolts Included: No |
| Aaiaid Part Number: BHXSHW4-XTG4 |
| Part Number: HW4-XTG4 |
| Brand Aaia: BHXS |
