Description

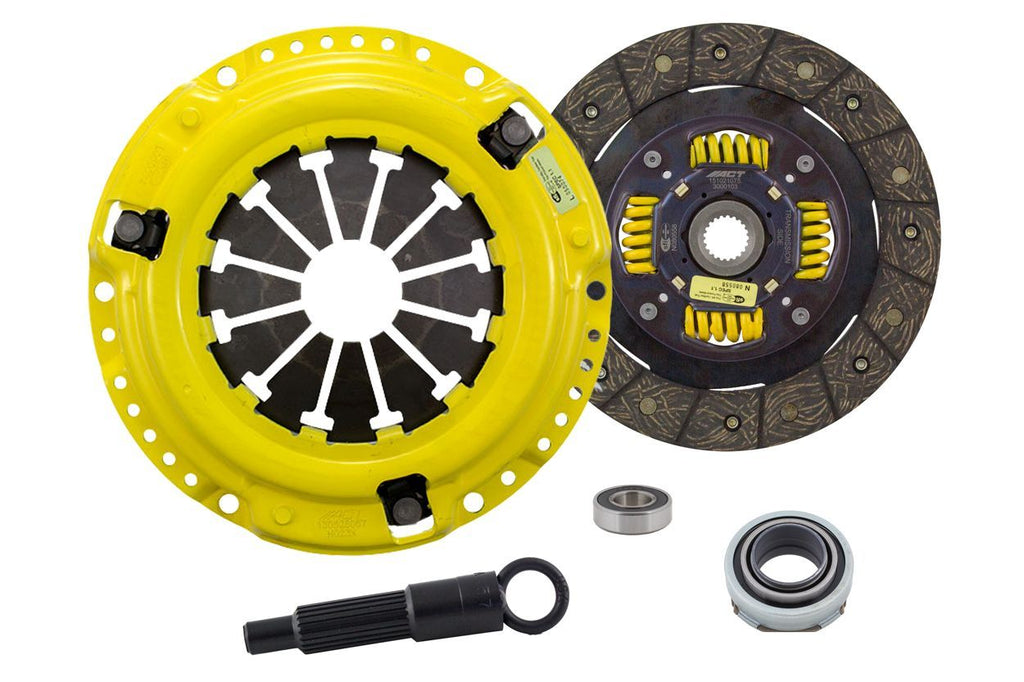

ACT Extreme Performance Street Sprung Clutch Kit
HC6-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
"Excellence in Performance", backed by the best one-year warranty in the industry!
| Product Weight (Lbs.): 10.5 |
| Prop 65 Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No: Yes |
| Title: ACT XT/Perf Street Sprung Kit |
| Torque Capacity (Ft/Lbs.): 295 |
| Torque Capacity Over Oe: 94% |
| Part Fitment Requirement: Must use with 90-01 SOHC flywheel or ACT flywheel (not provided). 212mm upgrade. |
| Pilot Bushing Included: No |
| Pressure Plate Type: Xtreme |
| Release Bearing Included: Yes |
| Clutch Disc Diameter: 212 mm |
| Disc Material: Organic |
| Input Spline Quantity: 21 |
| Input Shaft Diameter: 0.875 in |
| Alignment Tool Included: Yes |
| Disc Type Sprung Solid: Sprung |
| Pressure Plate Bolts Included: No |
| Grease Included: Yes |
| Grade Type: Performance |
| Clutch Slave Cylinder Included: No |
| Flywheel Bolts Included: No |
| Aaiaid Part Number: BHXSHC6-XTSS |
| Part Number: HC6-XTSS |
| Brand Aaia: BHXS |
