Description
ACT Heavy Duty Race Rigid 6 Pad Clutch Kit

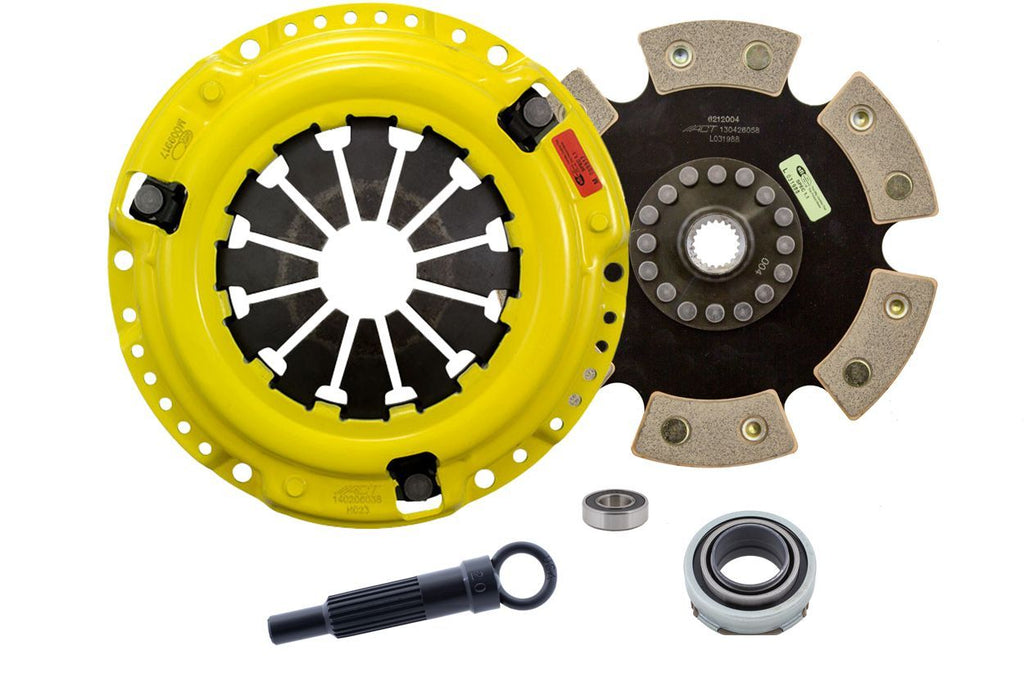

HW4-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
"Excellence in Performance", backed by the best one-year warranty in the industry!
| Prop 65 Long Label: Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No: Yes |
| Title: ACT HD/Race Rigid 6 Pad Kit |
| Torque Capacity (Ft/Lbs.): 300 |
| Torque Capacity Over Oe: 96% |
| Part Fitment Requirement: Must be used with 90-01 SOHC flywheel. |
| Product Weight (Lbs.): 10.3 |
| Prop 65 Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Pilot Bushing Included: No |
| Pressure Plate Type: Heavy Duty |
| Release Bearing Included: Yes |
| Clutch Disc Diameter: 212 mm |
| Disc Material: Ceramic |
| Input Spline Quantity: 20 |
| Input Shaft Diameter: 0.875 in |
| Alignment Tool Included: Yes |
| Disc Type Sprung Solid: Solid |
| Pressure Plate Bolts Included: No |
| Grease Included: Yes |
| Grade Type: Performance |
| Clutch Slave Cylinder Included: No |
| Flywheel Bolts Included: No |
| Aaiaid Part Number: BHXSHW4-HDR6 |
| Part Number: HW4-HDR6 |
| Brand Aaia: BHXS |
