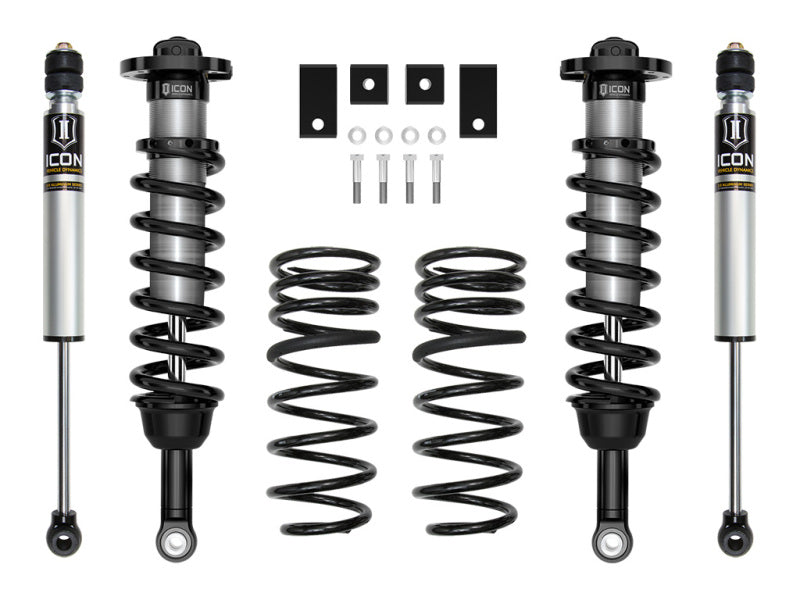

This Stage 3 system features the 2023-2025 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
The ICON Stage 3 suspension system for the Sequoia represents full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35" tires.
TECH NOTE: Most Sequoia submodels will have front lift height range of 3-3.75” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-1.75" over stock and remain at stock height in the rear. If taller rear ride heights are desired, consider kit part number K53233S.
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs

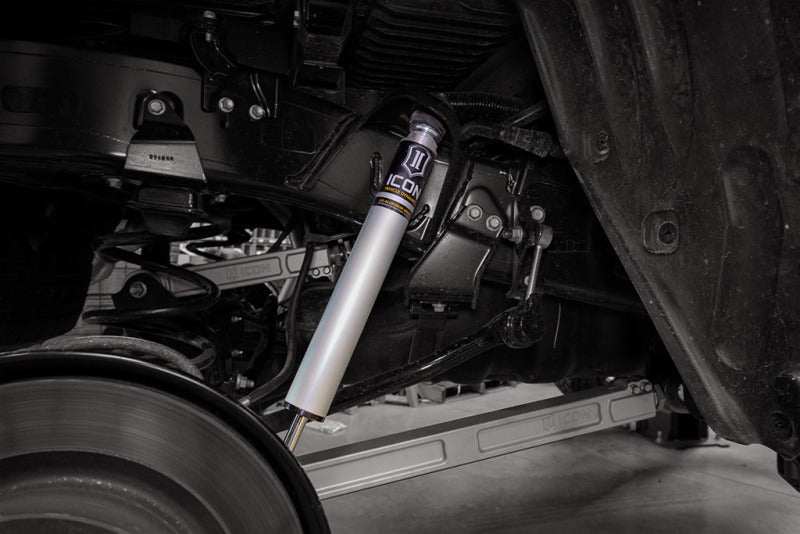

- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2023-2025 Toyota Sequoia
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
| Units Per Sku: 1 |
