Description
Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised. Threaded with 3/4 16 ORB-08 (o-ring boss) for proper sealing on carburetors like the Holley Ultra-HP and those with similar float bowls. Carburetor inlets swivel + or 20 degrees in all directions for optimum clearance from valve cover and intake runners. Telescoping center line is 7.700 to 13.450 adapts to standard and high capacity float bowls. ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings. Two 1/8 NPT ports for gauges and/or pressure tra nsducers. 1.056/.806 ID bore for high flow capacity. Type II bright-dip black anodized finish for durability and great looks.

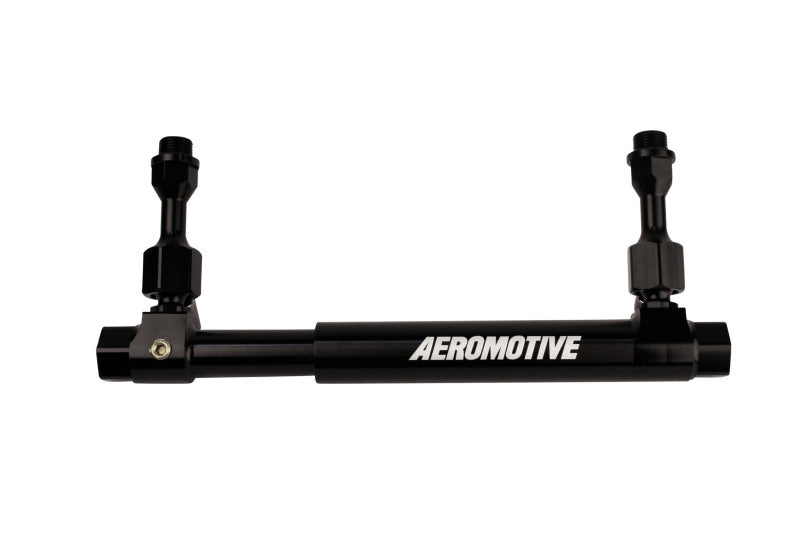

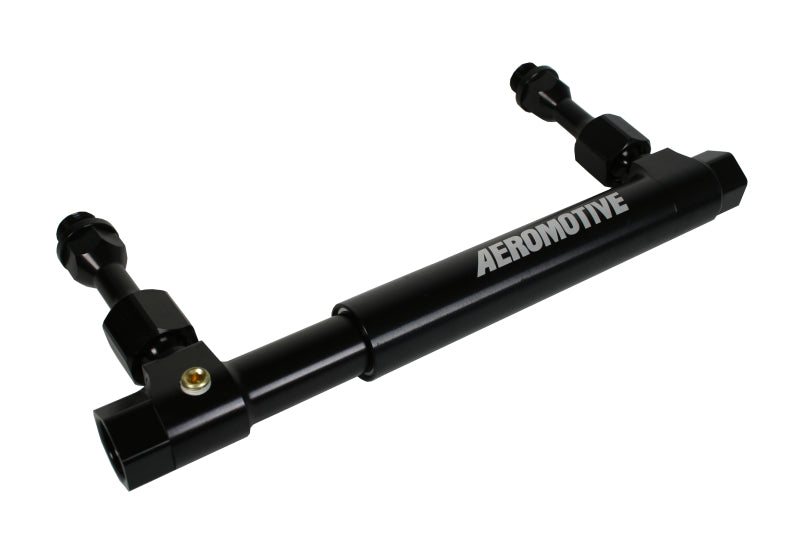

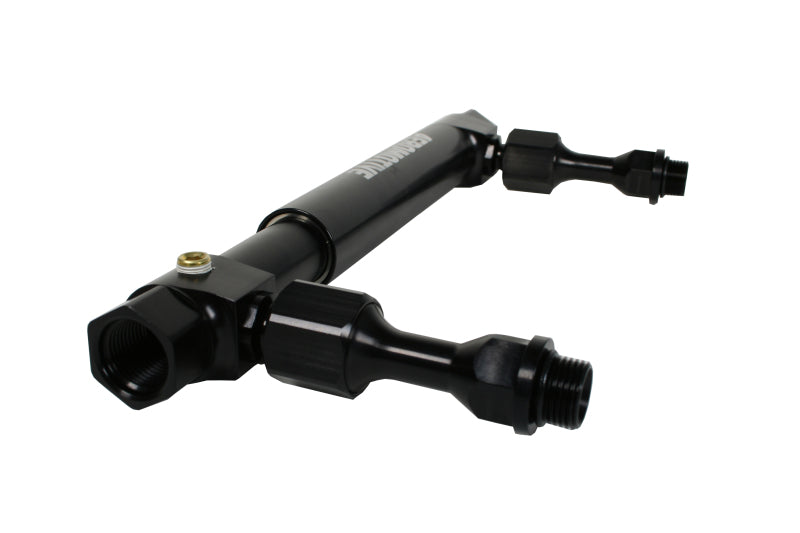

Fuel Log, Holley Ultra HP Series 3/4-16 Thread.
dual action adjustable fuel log; Holley ultra HP style float bowls; swivels +/- 20 degrees, allowing more clearance for throttle stops and other accessories
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: false |
| Units Per Sku: 1 |
Fitment
